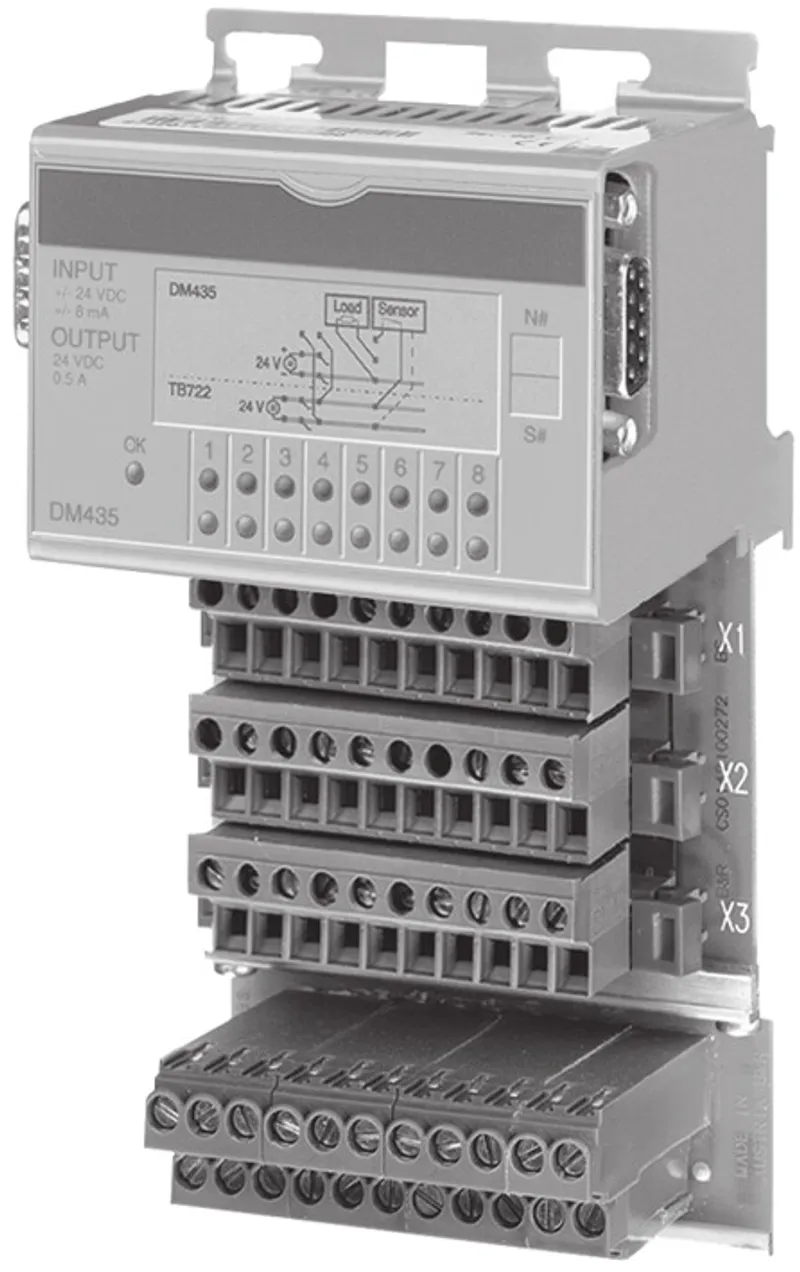

B&R 7DM435.7

2003 digital mixed module, 8 inputs 24 VDC, 1 ms

MPN: 7DM435.7

€25.44excl. VAT & shipping

In stock — 10 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7DM435.7?

2003 digital mixed module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A, order 3x terminal blocks 7TB710 separately!

Specifications

General information

C-UL-US listed	Yes
B&R ID code	$E3
Module type	B&R 2003 I/O module
Voltage and Output Monitoring (LED: OK)	Yes Supply voltage >18 V, outputs OK
Power consumption	Max. 0.5 W
Wiring	Sink or source
Input voltage – Minimum	18 VDC
Input voltage – Rated	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Input delay	Max. 1 ms
Input current at rated voltage	Approx. 8 mA
Electrical isolation	Input - PLC
Type	Highside driver IC (transistor)
Switching voltage – Minimum	18 VDC
Switching voltage – Rated	24 VDC
Switching voltage – Maximum	30 VDC
Continuous current per – Output	Max. 0.5 A
Continuous current per – Module	Max. 4 A
Leakage current when switched off	12 µA
Overload protection	Yes
Permanent short circuit current	Typ. 4 A
Internal protective circuit	Yes
Braking voltage when switching off inductive loads	47 V
Switching delay log. 0 - log. 1 log. 1 - log. 0	Max. 450 µs Max. 450 µs
Electrical isolation	Output - PLC

Mechanical characteristics

Dimensions

B&R 2003 single-width

Accessories

Required accessories (order separately)

7TB710.91	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.
7TB710.9	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Optional accessories (4)

7TB733.91	Terminal blocks — 2003 terminal block, 33-pin, cage clamp terminal block
7TB733.9	Terminal blocks — 2003 terminal block, 33-pin, screw clamp terminal block
7TB722.91	Terminal blocks — 2003 terminal block, 22-pin, cage clamp terminal block
7TB722.9	Terminal blocks — 2003 terminal block, 22-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DM435.7PDF · 1,005 KB · 1.20 (11/30/2007) - EN
