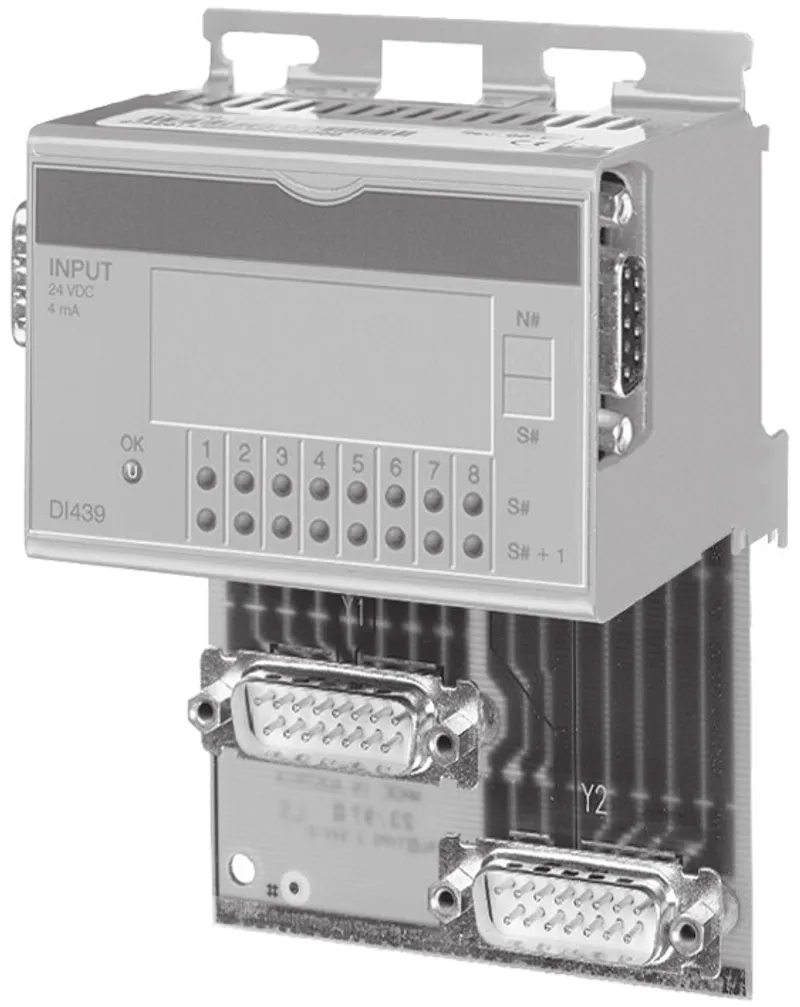

B&R 7DI439.72

2003 digital input module, 16 inputs 24 VDC, 1 ms

MPN: 7DI439.72

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7DI439.72?

2003 digital input module, 16 inputs 24 VDC, 1 ms, sink/source, 2 electrically isolated input groups

Specifications

General Information

Short Description	2003 digital input module, 16 inputs 24 VDC, 1 ms, sink/source, 2 electrically isolated input groups
C-UL-US Listed	in preparation
B&R ID Code	$E9

Static Characteristics

Module Type	B&R 2003 I/O Module
Wiring	Sink or source
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Switching Threshold – LOW	<5 V
Switching Threshold – HIGH	>15 V
Input Delay	Max. 1 ms (at 18 - 30 V)
Input Current at Nominal Voltage	Approx. 4 mA (sink/source)
Voltage Monitoring (LED: U-OK)	Yes Supply voltage >18 V
Power Consumption	Max. 0.4 W

Operating Characteristics

Electrical Isolation – Input - PCC	Yes
Electrical Isolation – Group - Group	Yes

Mechanical Characteristics

Dimensions

B&R 2003 single width

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DI439.72PDF · 462 KB · 1.0 (06/08/2004) - EN
