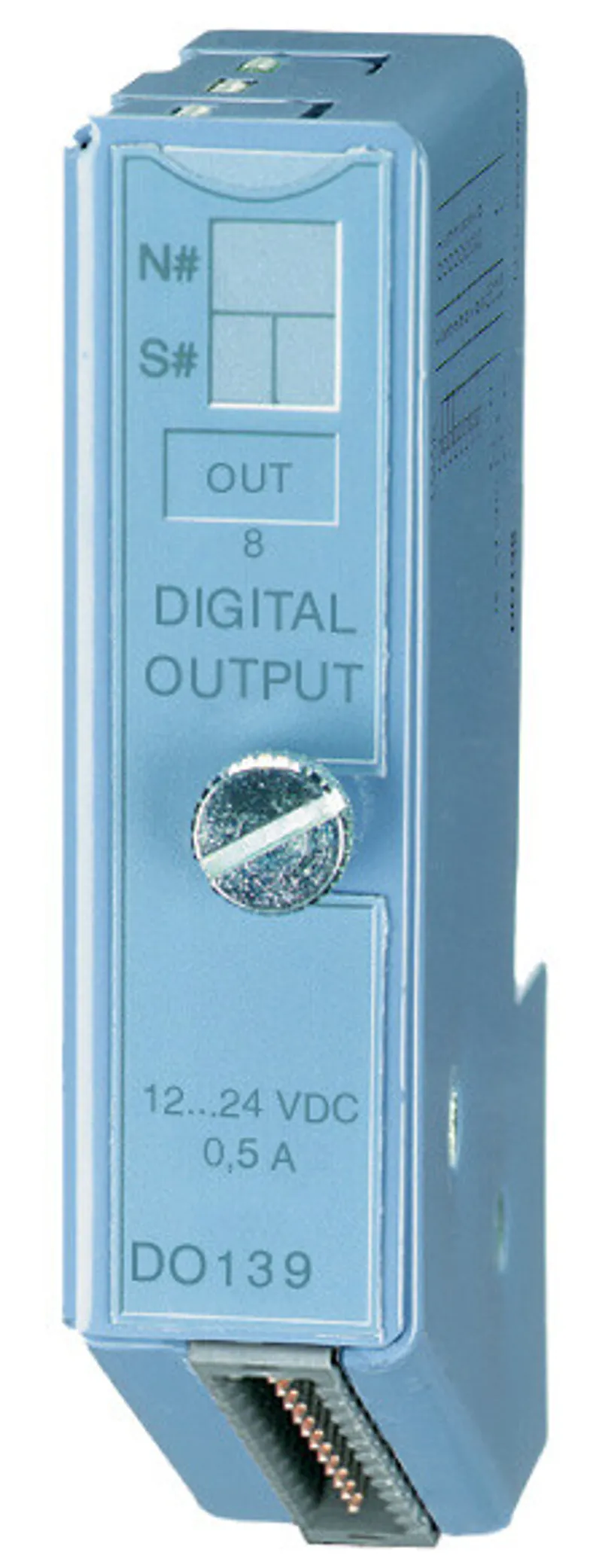

B&R 7DO139.70
2003 digital output module, 8 outputs 12 to 24 VDC, 0.5 A
- MPN
- 7DO139.70
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 7DO139.70?
2003 digital output module, 8 outputs 12 to 24 VDC, 0.5 A, short-circuit protection, thermal overload protection, screw-in module, order 1x terminal block TB712 separately!
Specifications
General Information
| C-UL-US Listed | Yes |
| Module Type | B&R 2003 screw-in module |
| Slot | Adapter module, CP interface Power Panel interface |
| B&R ID Code | $52 |
Static Characteristics
| Type | FET |
| Status Display | No |
| Diagnostics Status – Voltage Monitoring | 11.5 V < supply voltage < 30 V |
| Diagnostics Status – Output Monitoring | Output OK |
| Switching Voltage/Supply – Minimum | 11.5 VDC |
| Switching Voltage/Supply – Nominal | 12 -24 VDC |
| Switching Voltage/Supply – Maximum | 30 VDC |
| Continuous Current per – Output | Max. 0.5 A |
| Continuous Current per – Module | Max. 4 A |
| Leakage Current when Switched Off | <40 µA |
| Residual Voltage | 0.2 V @ 0.5 A |
| Short Circuit Current | Typ. 4 A |
| Switching On after Overload Cutoff | Automatic within seconds (depending on the module temperature) |
| Power Consumption – Internal | Max. 0.25 W |
| Power Consumption – 24 VDC supply voltage | Max. 1.8 W |
| Protection | Thermal cutoff Integrated protection for switching inductances Reverse polarity protection 24 VDC supply voltage for digital outputs - Maximum current 5 A (blow-out fuse) |
Dynamic Characteristics
| Switching Delay – Log. 0 - Log. 1 | Max. 450 µs |
| Switching Delay – Log. 1 - Log. 0 | Max. 450 µs |
| Switching Frequency – Resistive Load | Max. 100 Hz |
Operating Characteristics
| Electrical Isolation – Output - PLC | Yes |
| Electrical Isolation – Output - Output | No |
Mechanical Characteristics
| Dimensions | B&R 2003 screw-in module DO139 |
| 4. Pin Assignments – Terminal | Assignment |
Accessories
Required accessories (order separately)
| 7TB712.91 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB712.9 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
