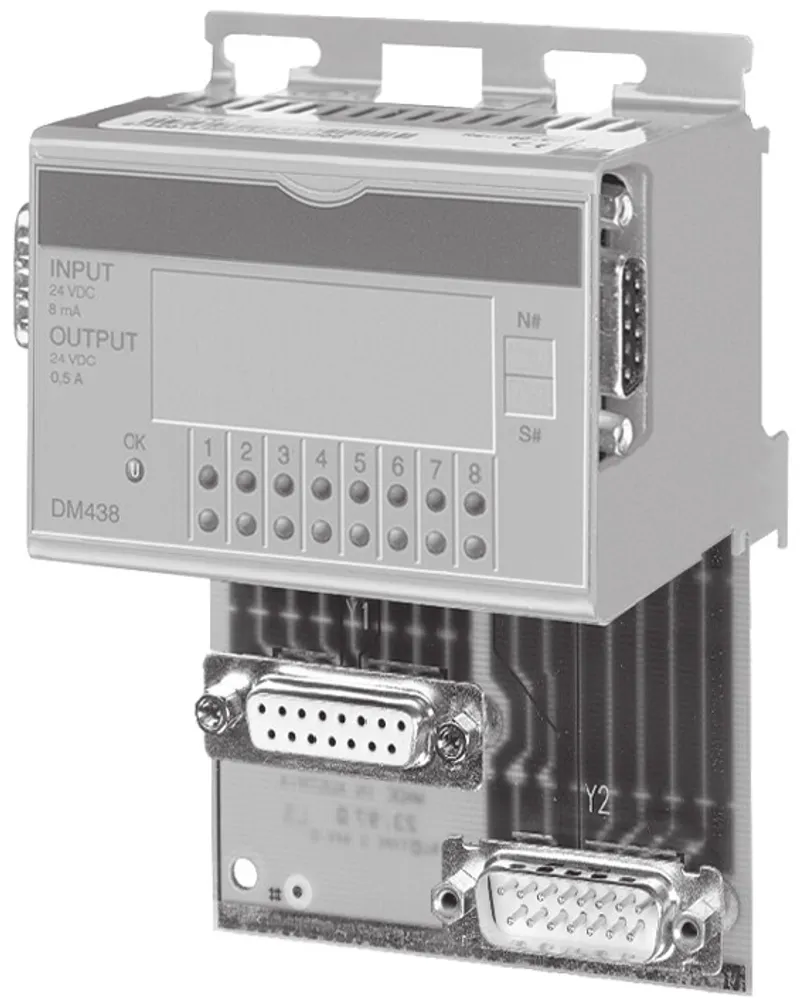

B&R 7DM438.72

2003 digital mixed module, 8 inputs 24 VDC, 1 ms

MPN: 7DM438.72

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7DM438.72?

2003 digital mixed module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A

Specifications

General Information

Short Description	2003 digital mixed module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A
C-UL-US Listed	in preparation
B&R ID Code	$E7
Module Type	B&R 2003 I/O Module
Voltage and	Yes
Output Monitoring (LED: OK)	Supply voltage >18 V, Outputs OK
Power Consumption	Max. 0.5 W
Wiring	Sink or source
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Switching Threshold – LOW	<5 V
Switching Threshold – HIGH	>15 V
Switching Threshold – Input Delay	Max. 1 ms
Switching Threshold – Input Current at Nominal Voltage	Approx. 8 mA
Switching Threshold – Electrical Isolation	Input - PCC
Type	Highside Driver IC (Transistor)
Switching Voltage – Minimum	18 VDC
Switching Voltage – Nominal	24 VDC
Switching Voltage – Maximum	30 VDC
Continuous Current per – Output	Max. 0.5 A
Continuous Current per – Module	Max. 4 A
Leakage Current when Switched Off	12 µA
Overload Protection	Yes
Continuous Short Circuit Current	Typ. 4 A
Internal Protective Circuit	Yes
Negative Anode Potential when	47 V
Switching Delay log 0 - log 1 log 1 - log 0	Max. 450 µs Max. 450 µs
Electrical Isolation	Output - PCC

Mechanical Properties

Dimensions

B&R 2003 single width

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DM438.72PDF · 471 KB · 1.0 (06/08/2004) - EN
