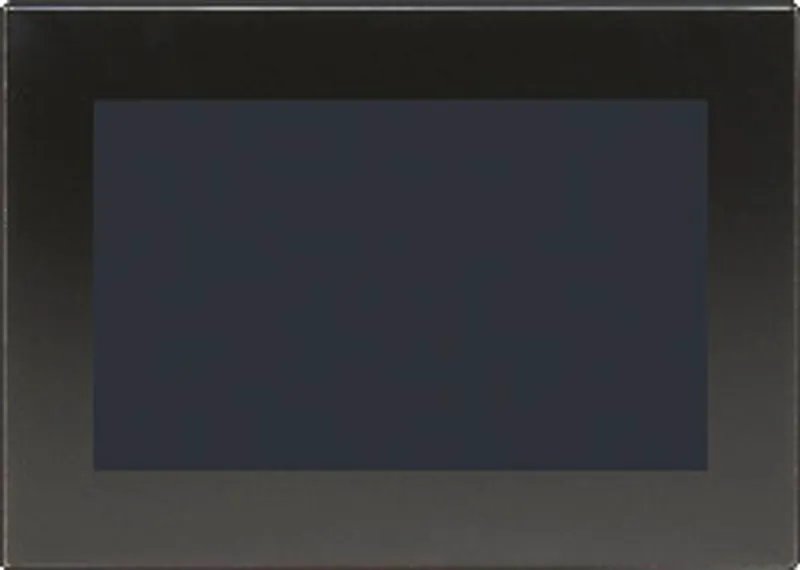

B&R 5PPC1200.0702-10A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Display variants |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
Shipping & availability
When can 5PPC1200.0702-10A be shipped?
5PPC1200.0702-10A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PPC1200.0702-10A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PPC1200.0702-10A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PPC1200.0702-10A, subject to availability and destination.
Panel PC 1200, 7", glass front. CPU and memory: Intel Atom E3940 1.6 GHz, quad core, 4 GB LPDDR4 RAM. Display and touch screen: 7", 800 x 480 pixels (WVGA) widescreen, multi-touch (projected capacitive), control cabinet installation, landscape format, anti-glare. Interfaces: 2x Ethernet 10/100/1000 Mbit/s, 2x USB 3.0.
Specifications
Specifications
| LEDs | Power, Disk |
| B&R ID code | 0xA69C |
| Cooling | Passive |
| Power button | Yes |
| Reset button | Yes |
| Type | USB 3.0 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | UEFI BIOS |
| Clock frequency | 1600 MHz |
| Number of cores | 4 |
| Architecture | 14 nm |
| Thermal design power (TDP) | 9.5 W |
| L2 cache | 2 MB |
| Intel 64 architecture | Yes |
| Intel Hyper-Threading Technology | No |
| Intel vPro Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Chipset | Apollo Lake |
| Trusted Platform Module | TPM 2.0 |
| Accuracy | At 25 °C: Typ. 12 ppm (1 second) per day |
| Retention time | Approx. 8 years |
| Battery-backed | Yes |
| Memory size | 4 GB |
| Velocity | DDR4L-2133 |
| Memory interface width | Dual channel |
| Removable | No |
| Controller | Intel HD Graphics |
| Max. dynamic graphics frequency | 600 MHz |
| Color depth | Max. 32-bit |
| DirectX support | 12 |
| OpenGL support | 4.3 |
| Power management | ACPI 5.0 |
| Diagonal | 7.0" |
| Colors | 16.7 million |
| Resolution | WVGA, 800 x 480 px |
| Contrast | Typ. 800:1 |
| Horizontal | Direction L / Direction R = Typ. 89°, min. 80° |
| Vertical | Direction U / Direction D = Typ. 89°, min. 80° |
| Brightness (dimmable) | Typ. 25 to 500 cd/m² |
| Half-brightness time | 50,000 h |
| Transmittance | ≥85% |
| Anti-glare coating | Optical/Gloss = 70 |
| Technology | PCT (projected capacitive touch) |
| Quantity | 2 |
| Variant | RJ45, shielded |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 1 A per connection |
| Nominal voltage | 24 VDC, SELV/PELV |
| Nominal current | Max. 1.5 A |
| Operating voltage | 24 VDC ±25% |
| Inrush current | Typ. 5 A, max. 100 A for < 50 μs |
| Power consumption | 36 W |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | No |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 on back, Rev. F0 and later: IP65 on front, up to Rev. E5: IP55 on front |
| Operation | Max. 3000 m |
| Storage | -20 to 80 °C |
| Transport | -20 to 80 °C |
| Relative humidity | See section "Temperature/Humidity diagrams". |
| Design | Black |
| Width | 209 mm |
| Height | 153 mm |
| Depth | 41.5 mm |
| Weight | Approx. 1130 g |
