B&R 5MMSSD.0060-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drives |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 78 kg |
Shipping & availability
When can 5MMSSD.0060-01 be shipped?
5MMSSD.0060-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5MMSSD.0060-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5MMSSD.0060-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MMSSD.0060-01, subject to availability and destination.

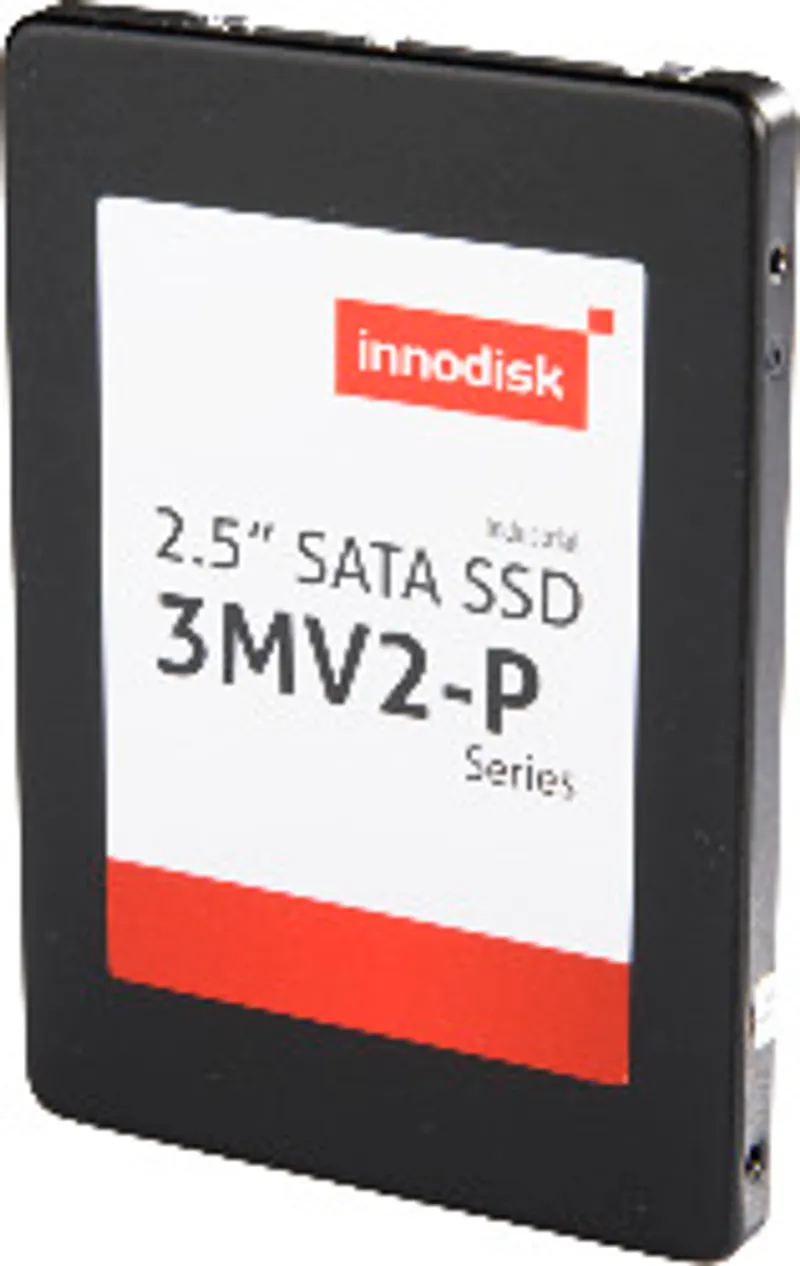

Replacement for 5AC801.SSDI-03 or 5AC901.CSSD-03 SSD drivesAccessory for the APC510 (optional SSD for I/O board) This 60 GB solid-state drive (SSD) drive can be used as a replacement part or accessory. The SSD is based on Multi Level Cell (MLC) technology.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD |
| Capacity | 60 GB |
| Data reliability | Max. 1 unrecoverable error per 1015 bits read |
| MTBF | Min. 3,000,000 h (at 25°C) |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 520 MB/s |
| Continuous writing | Max. 180 MB/s |
| 4k read | Max. 75,000 (random) |
| 4k write | Max. 46,000 (random) |
| MLC flash memory | Yes |
| Theoretical | 192 TBW |
| Client workload | 35 TBW |
| Compatibility | SATA 3.1 compliant ACS-2 SSD Enhanced SMART ATA feature set Native Command Queuing (NCQ) |
| Storage health data support | Yes, AR 4.90 and later |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Operation | 1500 g, 0.5 ms |
| Storage | 1500 g, 0.5 ms |
| Transport | 1500 g, 0.5 ms |
| Width | 7 mm |
| Height | 69 mm |
| Depth | 100 mm |
| Weight | 78 g |
| Manufacturer | Innodisk |
| Manufacturer's product ID | 2.5" SATA SSD 3MV2-P 60 GB |
