Home / B&R / B&R 5LS071.9

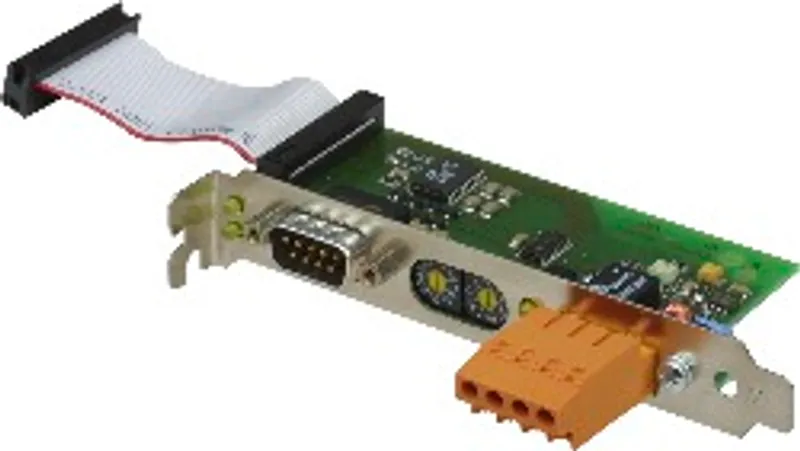

B&R 5LS071.9

Logic scanner expansion card LS071 1 RS232 interface 1 CAN…

MPN: 5LS071.9

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5LS071.9?

Logic scanner expansion card LS071 1 RS232 interface 1 CAN interface CAN: elec. isolated, network-capable

Specifications

General Information

Connection	Inserted in next slot to Logic Scanner LS251, has no contact to PCI or ISA slot
Supply	The LS071is supplied from the LS251 through a flat ribbon cable
Power Output	Including LS251, max. 8.5 W
Operating Temperature	0 - 55 °C
Humidity	0 - 95 % Expansion Card
Type	RS232 LS071
Controller	UART type ST16C650
FIFO	32 Bytes in send and receive directions
Connection	9 pin D-Type connector (M)
Electrical Isolation	NO
Input Filter	YES
Reverse Voltage Divider	YES
Maximum Range	15 m
Maximum Baudrate	115.2 kBaud
Handshake Controller	RTS, CTS
Network Capable	NO
Type	CAN
Controller	Controller 82527
Connection	4 pin connection block
Multimaster Capable	YES
Number of Stations	max. 64
Priority	Through object identifier
Protocol	from CiA/CAL
Electrical Isolation – IF4 - LS071	YES
Electrical Isolation – IF3 - IF4	YES
Transfer Medium	4 wire twisted pair cable
Maximum Range	1000 m
Maximum Baudrate	500 kBit/sec (see chapter 1 "General Information", section "CAN field bus")
Network Capable	YES
Bus Terminating Resistance	optional external cabling

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 5LS071.9PDF · 73 KB · 1.0 (06/08/2004) - EN
