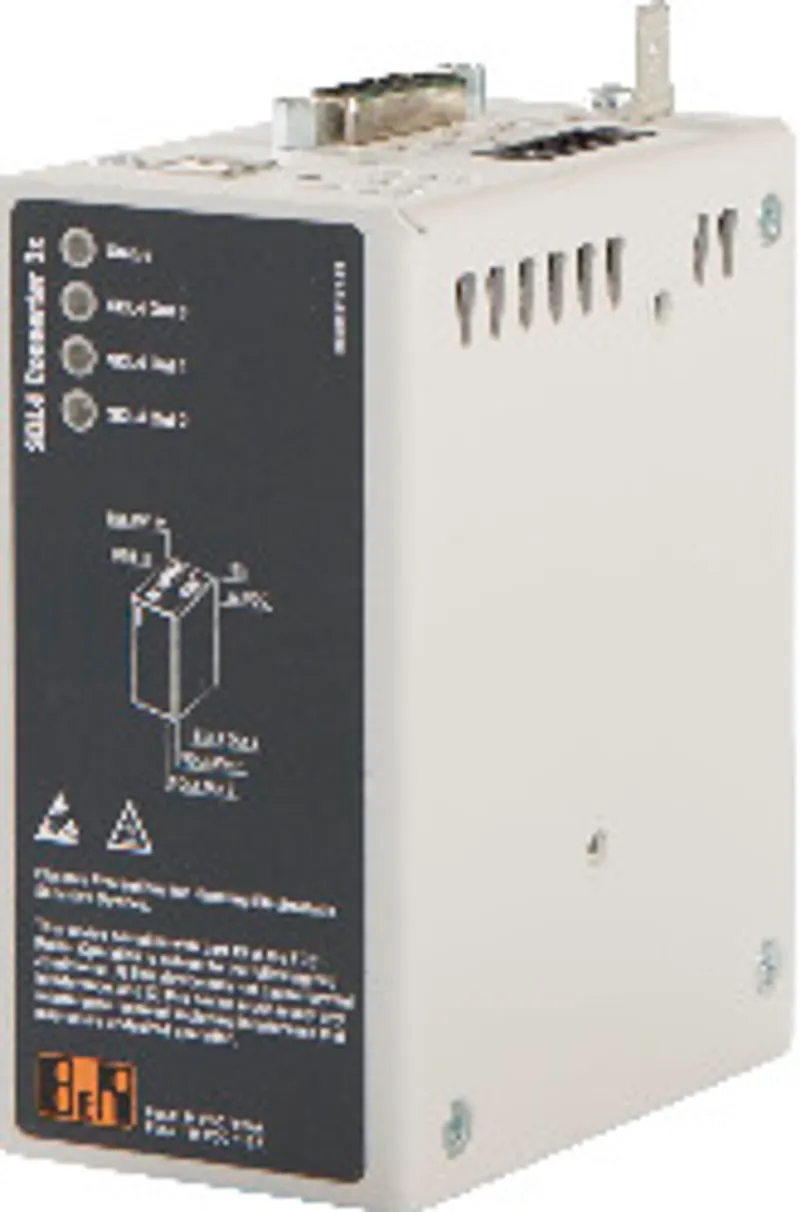

B&R 5COSD4.1001-00
The SDL4 Converter makes operation via SDL4 with Automation…
- MPN
- 5COSD4.1001-00
- Category
- Converter
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5COSD4.1001-00?
The SDL4 Converter makes operation via SDL4 with Automation Panels possible for B&R industrial PCs that are not equipped with an SDL4 interface or SDL4 slot. In addition, up to 3 Automation Panels can be connected to the 3-port SDL4 Converter in clone mode.When combined with an SDL4 interface integrated on a B&R industrial PC, an additional Automation Panel can be connected in dual-independent display mode.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Status, SDL4 Out 0, SDL4 Out 1, SDL4 Out 2 |
| B&R ID code | 0xF10D |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type B |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| SDL/DVI-D interface – Variant | DVI-I |
| SDL/DVI-D interface – Type | SDL/DVI |
| SDL4 Out – Quantity | 3 |
| SDL4 Out – Variant | Female RJ45 connector, shielded |
| SDL4 Out – Type | SDL4 |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | Max. 0.5 A |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 45°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g peak (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g peak (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g peak / 200 to 500 Hz: 4 g peak (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g peak / 200 to 500 Hz: 4 g peak (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Operation | 15 g peak, 11 ms (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Storage | 30 g peak, 6 ms (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Transport | 30 g peak, 6 ms (note: Top-hat rail clamp set X20AC0RF1 can also be used for improved installation / vibration resistance. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Elevation – Operation | Max. 3000 m (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Aluminum |
| Housing – Coating | White |
| Dimensions – Width | 49 mm |
| Dimensions – Height | 100 mm |
| Dimensions – Depth | 80 mm |
| Weight | Approx. 500 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5CASDL.0100-00 | SDL-cables — 5CASDL.0xxx-00 SDL cables are designed for use in fixed installations. For flexible installations (e.g. swing arm systems), the use of 5CAS… |
| 5CASDL.0060-00 | SDL-cables — SDL cable - 6 m |
| 5CASDL.0050-00 | SDL-cables — 5CASDL.0xxx-00 SDL cables are designed for use in fixed installations. For flexible installations (e.g. swing arm systems), the use of 5CAS… |
| 5CASDL.0018-00 | SDL-cables — 5CASDL.0xxx-00 SDL cables are designed for use in fixed installations. For flexible installations (e.g. swing arm systems), the use of 5CAS… |
| 5CASDL.0008-00 | SDL-cables — SDL cable - 0.8 m |
| 5CASD3.1000-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0500-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0300-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0200-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0150-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0100-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0070-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0050-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0030-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0010-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
Optional accessories (12)
| 5ACCRHMI.0011-000 | Accessories — Strain relief USB - For APC2100/APC2200 - For SDL3 Converter/SDL4 Converter |
| 5CADVI.0050-00 | DVI cables — 5CADVI.0xxx-00 DVI cables are designed for use in fixed installations. |
| 5CADVI.0018-00 | DVI cables — 5CADVI.0xxx-00 DVI cables are designed for use in fixed installations. |
| 5ACCRHMI.0000-000 | Miscellaneous — HMI grounding clip |
| 5CASDL.0100-01 | SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations. |
| 5CASDL.0050-01 | SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations. |
| 5CASDL.0018-01 | SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations. |
| 5CASDL.0100-03 | SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems). |
| 5CASDL.0050-03 | SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems). |
| 5CASDL.0018-03 | SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems). |
| 5CAUSB.0050-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 5 m |
| 5CAUSB.0018-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 1.8 m |
