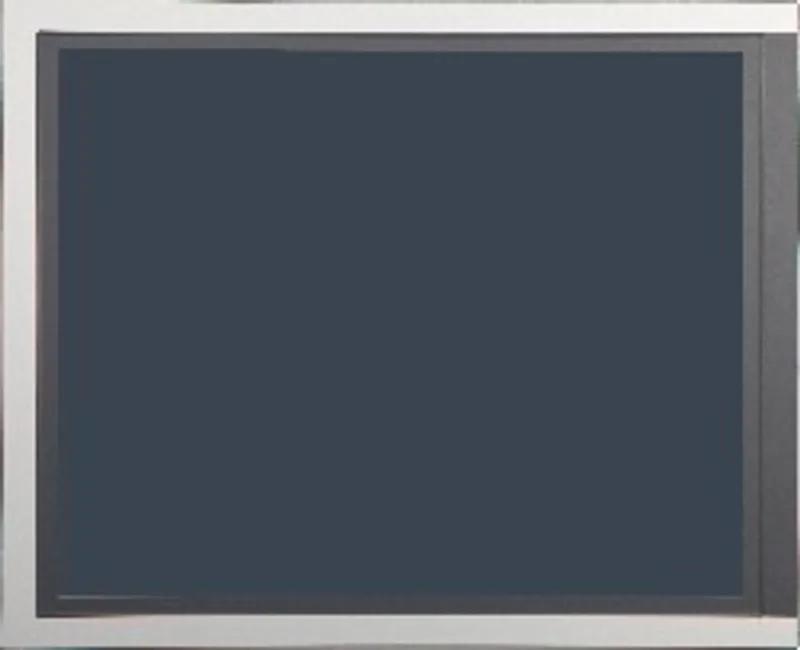

B&R 5AP923.1906-00

Panel for AP9x3, PPC900, PPC2100

MPN: 5AP923.1906-00
Category: Panels

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AP923.1906-00?

Panel for AP9x3, PPC900, PPC2100, PPC2200 or PPC310019.0" TFT SXGA color displaySingle-touch (analog resistive)Control cabinet installation

Automation Panel 19.0" SXGA TFT - 1280 x 1024 pixels (5:4) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xE1B1

Display

Viewing angles – Horizontal	Direction R = 85° / Direction L = 85°
Viewing angles – Vertical	Direction U = 85° / Direction D = 85°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 35 to 350 cd/m²
Backlight – Half-brightness time	70,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screen – Technology	Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Controller	B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Transmittance	81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Type	TFT color
Diagonal	19.0"
Colors	16.7 million
Resolution	SXGA, 1280 × 1024 pixels
Contrast	1500:1

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65; Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Front – Material	Polyester
Front – Light background color	RAL 9006
Front – Dark border color around display	RAL 7024
Front – Frame	Aluminum, coated
Front – Gasket	3 mm fixed gasket
Dimensions – Width	440 mm
Dimensions – Height	358 mm
Weight	5800 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 5AP923.1906-00ZIP · 2 MB · 2.00 (03/08/2019)
