B&R 5AP92D.1505-01

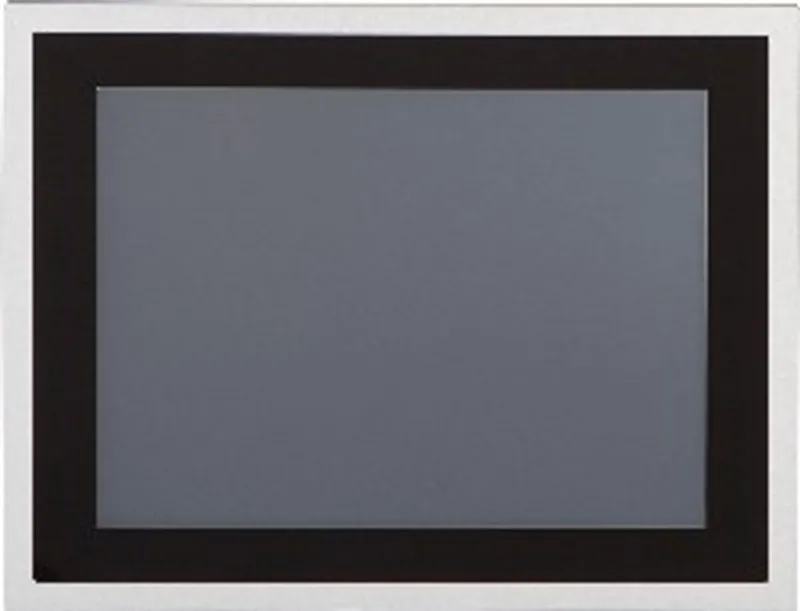

Display unit for AP92D

MPN: 5AP92D.1505-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AP92D.1505-01?

Display unit for AP92D

15.0" TFT XGA color display

Single-touch (analog resistive)

Flexible, standing swing arm mounting

IP65 protection

Automation Panel 15.0" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - Landscape format - IP65 protection - For swing arm mounting - Flange on the bottom

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xE387

Display

Viewing angles – Horizontal	Direction R = 80° / Direction L = 80°
Viewing angles – Vertical	Direction U = 70° / Direction D = 70°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 20 to 400 cd/m²
Backlight – Half-brightness time	50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screen – Type	AMT (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Technology	Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Controller	B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Transmittance	81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Type	TFT color
Diagonal	15.0"
Colors	16.7 million
Resolution	XGA, 1024 x 768 pixels
Contrast	700:1

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	IP65 (note: Only when all covers are installed and the device is properly mounted on a swing arm.)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Housing – Material	Aluminum, coated
Housing – Coating	White aluminum
Front – Material	Polyester
Front – Dark border color around display	RAL 7024
Front – Frame	Aluminum, coated
Dimensions – Width	398 mm
Dimensions – Height	316 mm
Flange output	Bottom
Weight	7450 g

Accessories

Optional accessories (1)

5AC903.HDL0-00

Handles — Handles for 5AP92D.1505-00, 5AP92D.1505-01; For comfortable, ergonomic operation Handles can be installed on the side of the display unit t…
