B&R 5AP923.1505-00
Panel for AP9x3, PPC900, PPC2100
- MPN
- 5AP923.1505-00
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP923.1505-00?

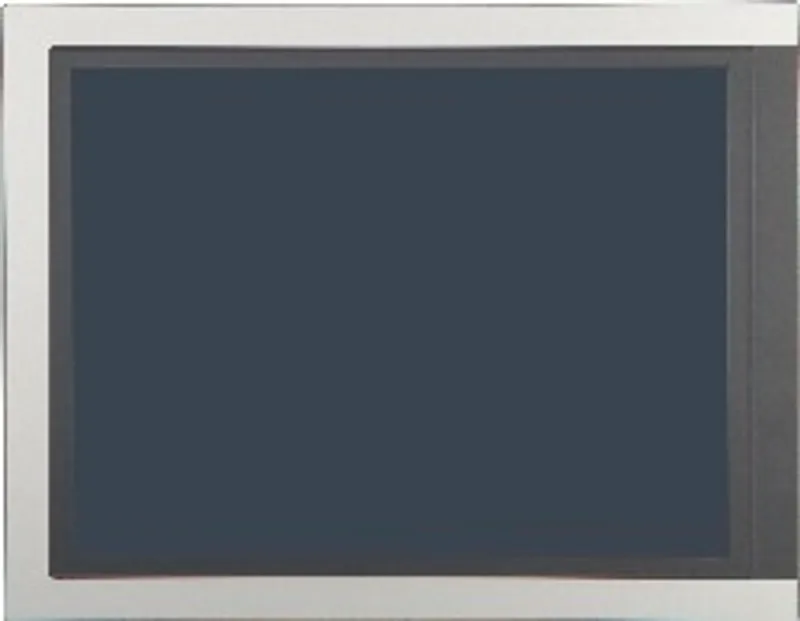

Panel for AP9x3, PPC900, PPC2100, PPC2200 or PPC310015.0" TFT XGA color displaySingle-touch (analog resistive)Control cabinet installation
Automation Panel 15.0" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| B&R ID code | 0xE169 |
Display
| Viewing angles – Horizontal | Direction R = 80° / Direction L = 80° |
| Viewing angles – Vertical | Direction U = 70° / Direction D = 70° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 20 to 400 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Technology | Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Controller | B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Transmittance | 81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Type | TFT color |
| Diagonal | 15.0" |
| Colors | 16.7 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 700:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65; Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Front – Material | Polyester |
| Front – Light background color | RAL 9006 |
| Front – Dark border color around display | RAL 7024 |
| Front – Frame | Aluminum, coated |
| Front – Gasket | 3 mm fixed gasket |
| Dimensions – Width | 370 mm |
| Dimensions – Height | 288 mm |
| Weight | 3700 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
- Automation Panel - AP9x3|AP1000 - Cabinet-mounted - Device number key
- Automation Panel 9x3 User's Manual
- KCF Editor User's manual
- Key Editor help
- Panel PC 2100 Built-in devices User's manual
- Panel PC 2200 Panel mount devices User's manual
- Panel PC 3100 Built-in devices user's manual
- Panel PC 3200 User's Manual
- Panel PC 900 (Skylake) user's manual
- Panel PC 900 Device number key
- Panel PC 900 User's Manual
CAD & dimension drawings
Certificates (6)
- ABS Certificate of Product Design Assessment - Panels und Panel PCs
- BV Type Approval Certificate - Panels and Panel PCs
- CCS Type Approval Certificate - Automation PCs, Panel PCs and Panels
- DNV Type Approval Certificate - Automation PCs, Panel PCs and Panels
- DNV Type Approval Certificate - Automation Panel 9x3
- Lloyds Register cLR22132129TA-1962056
