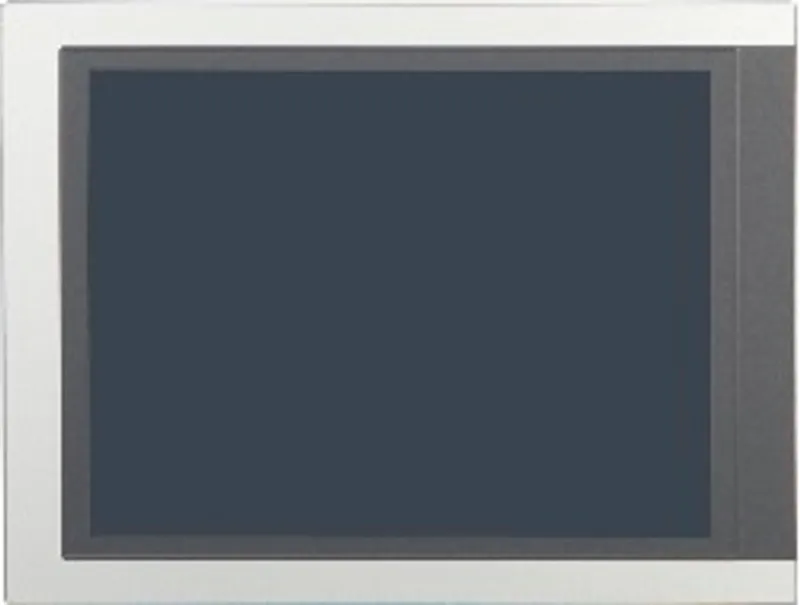

B&R 5AP923.1215-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2200 kg |
Shipping & availability
When can 5AP923.1215-00 be shipped?
5AP923.1215-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP923.1215-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP923.1215-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP923.1215-00, subject to availability and destination.
Panel for AP9x3, PPC900, PPC2100, PPC2200 or PPC310012.1" TFT XGA color displaySingle-touch (analog resistive)Control cabinet installation Automation Panel 12.1" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules
Specifications
Specifications
| B&R ID code | 0xE1B0 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| Type | LED |
| Diagonal | 12.1" |
| Colors | 16.7 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 700:1 |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Rev. F0 and later: Direction U = 70° / Direction D = 70° Rev. < F0: Direction U = 80° / Direction D = 80° |
| Brightness (dimmable) | Typ. 25 to 500 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 81% ±3% |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65 Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Frame | Aluminum, coated |
| Material | Polyester |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | 3 mm fixed gasket |
| Width | 315 mm |
| Height | 239 mm |
| Weight | 2200 g |
