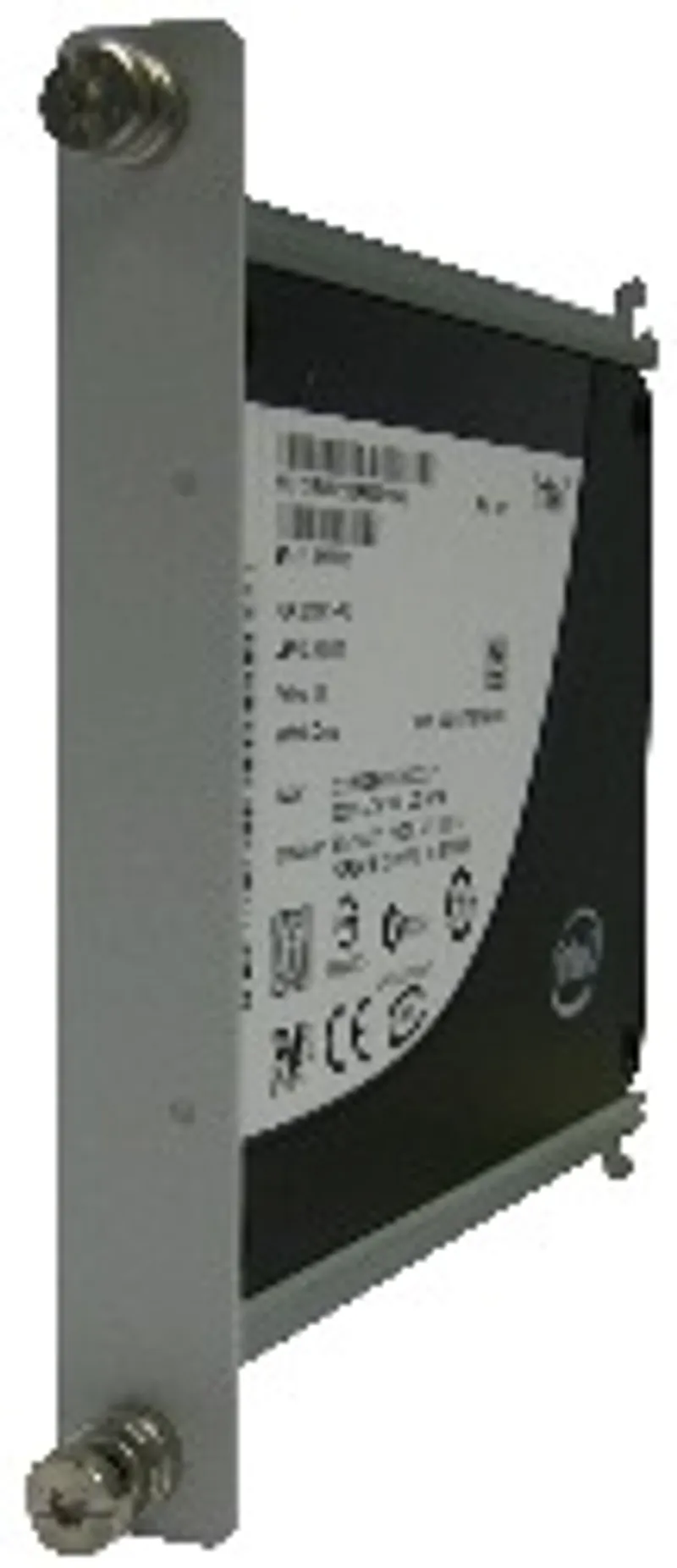

B&R 5AC801.SSDI-01
60 GB solid state drive
- MPN
- 5AC801.SSDI-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC801.SSDI-01?
60 GB solid state drive
MLC flash
S.M.A.R.T. Support
Slide-in compact
SATA 3.0 compatible
This 60 GB slide-in compact SSD (solid-state drive) is based on multi-level cell (MLC) technology and can be used in APC810 and PPC800 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Solid-state drive
| IOPS – Typical | 23,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – Maximum | 80,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k read | 15,000 (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 60 GB |
| Data reliability | <1 unrecoverable error per 10 16 bits read |
| MTBF | 1,200,000 hours |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 550 MB/s, with SATA 6 Gbit/s; Max. 280 MB/s, with SATA 3 Gbit/s |
| Continuous writing | Max. 475 MB/s, with SATA 6 Gbit/s; Max. 245 MB/s, with SATA 3 Gbit/s |
Endurance
| MLC flash memory | Yes |
| Compatibility | SATA 3.0 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 700 Hz: 2.17 g |
| Vibration – Storage | 5 to 800 Hz: 3.13 g |
| Vibration – Transport | 5 to 800 Hz: 3.13 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Height | 98 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent (note: Slide-in compact installation.) |
| Weight | 118 g |
Vendor information
| Manufacturer | Intel |
| Manufacturer's product ID | SSDSC2CW060A3 |
Accessories
Optional accessories (1)
| 5MMSSD.0060-00 | Drives — Replacement for 5AC801.SSDI-01 or 5AC901.CSSD-01 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 60 GB solid-state d… |
