B&R 5AC801.SSDI-00
32 GB solid state drive
- MPN
- 5AC801.SSDI-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC801.SSDI-00?
32 GB solid state drive
SLC Flash
S.M.A.R.T. Support
Slide-in compact
SATA 2.6 compatible

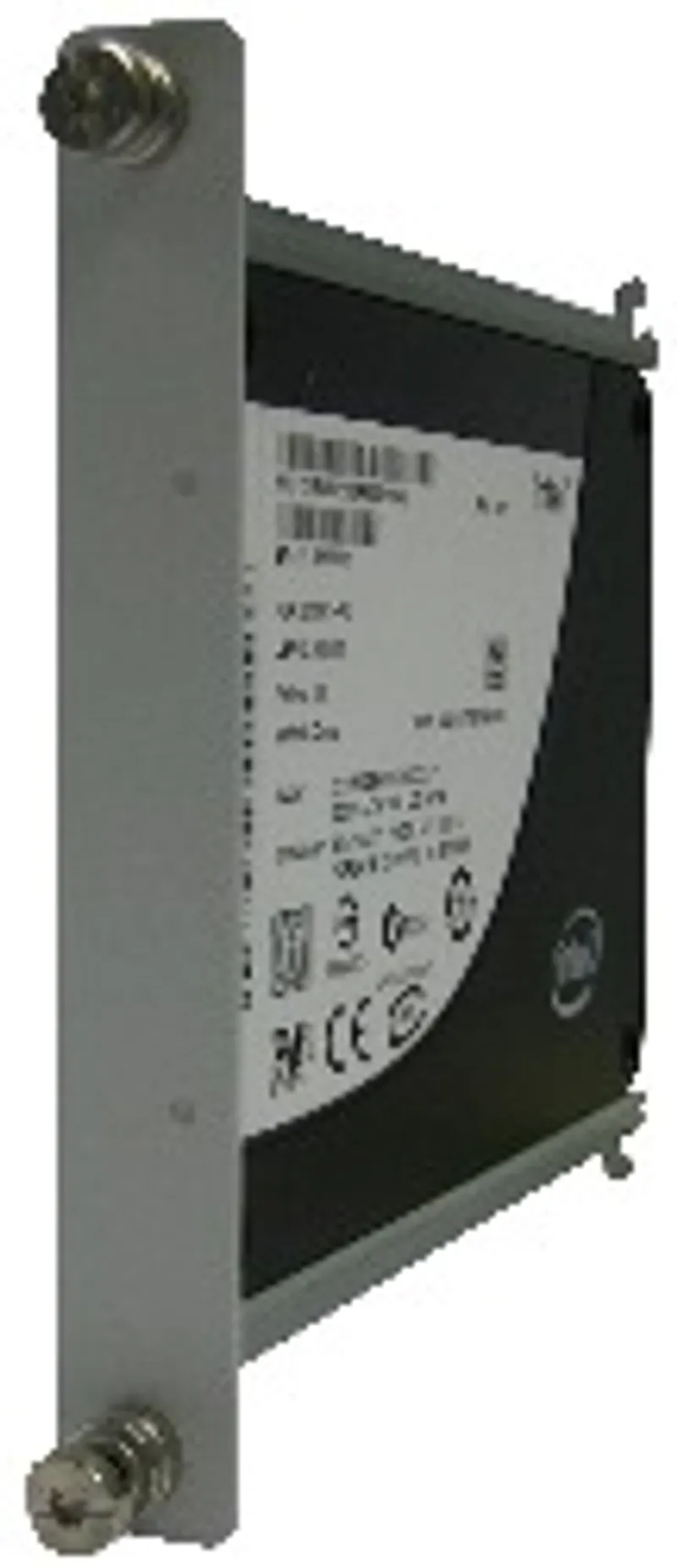

This 32 GB slide-in compact SSD (solid-state drive) is based on single-level cell (SLC) technology and can be used in APC810 and PPC800 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Solid-state drive
| IOPS – 4k read | 35,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k write | 3,300 (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 32 GB |
| Data reliability | <1 unrecoverable error per 10 15 bits read |
| MTBF | 2,000,000 hours |
| Power-on cycles | 50,000 |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 250 MB/s |
| Continuous writing | Max. 170 MB/s |
Endurance
| Guaranteed data volume – Guaranteed | 700 TB |
| Guaranteed data volume – Results for 5 years | 350 GB/day |
| SLC flash memory | Yes |
| Wear leveling | Static |
| Error-correcting code (ECC) | Yes |
| Compatibility | SATA revision 2.6 compliant, compatible with SATA 1.5 Gbit/s and 3 Gbit/s interface rates; ATA/ATAPI-7; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 7 to 800 Hz: 2.17 g |
| Vibration – Storage | 10 to 500 Hz: 3.13 g |
| Vibration – Transport | 10 to 500 Hz: 3.13 g |
| Shock – Operation | 1000 g, 0.5 ms |
| Shock – Storage | 1000 g, 0.5 ms |
| Shock – Transport | 1000 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Height | 98 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent (note: Slide-in compact installation.) |
| Weight | 118 g |
Vendor information
| Manufacturer | Intel |
| Manufacturer's product ID | SSDSA2SH032G1 |
