Home / B&R / B&R 5AC600.HDDI-03

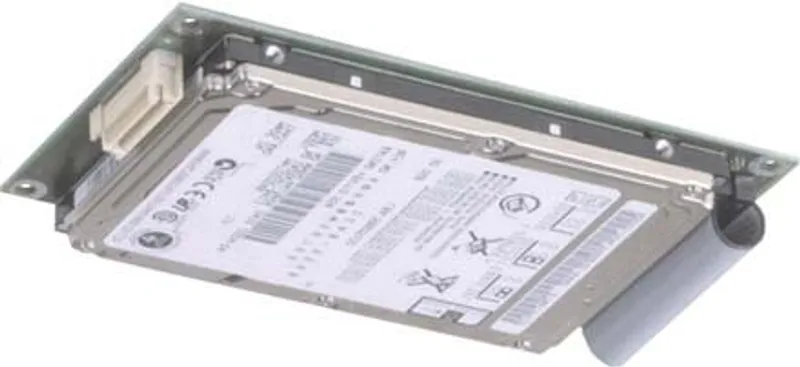

B&R 5AC600.HDDI-03

Add-on HDD 60 GB (E7K100)

MPN: 5AC600.HDDI-03

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AC600.HDDI-03?

Add-on HDD 60 GB (E7K100)

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

Hard disk

Data transfer rate – Internal	Max. 629 Mbit/s
Data transfer rate – To/From host	Max. 100 MB/s (Ultra DMA mode 5)
Positioning time – Minimum (track to track)	1 ms
Positioning time – Nominal (read access)	10 ms
Positioning time – Maximum (read access)	16 ms
Capacity	60 GB
Number of heads	3
Number of sectors	117,210,240
Bytes per sector	512
Cache	8 MB
Speed	7200 rpm ±1%
Startup time	Typ. 4 s (from 0 rpm to read access)
Service life	5 years or 30,000 power-on hours (POH)
MTBF	550,000 hours (note: Manufacturer's specification at 40°C ambient temperature.)
S.M.A.R.T. support	No
Interface	ATA-6
Access time	10 ms

Ambient conditions

Temperature – Operation	5 to 55°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – 24-hour operation	5 to 40°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Transport	-40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Relative humidity – Operation	8 to 90%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	5 to 95%
Vibration – Operation	5 to 500 Hz: 1 g (9.8 m/s² 0-peak) duration 1 octave per minute, no unrecoverable errors
Vibration – Storage	10 to 500 Hz: 5 g (49 m/s² 0-peak) duration 0.5 octaves per minute, no damage
Vibration – Transport	10 to 500 Hz: 5 g (49 m/s² 0-peak) duration 0.5 octaves per minute, no damage
Shock – Operation	Max. 160 g (1568 m/s² 0-peak) and 1 ms duration, no unrecoverable errors; Max. 300 g (2900 m/s² 0-peak) and 2 ms duration, no unrecoverable errors; Max. 15 g (147 m/s² 0-peak) and 11 ms duration, no unrecoverable errors
Shock – Storage	Max. 1000 g (9800 m/s² 0-peak) and 1 ms duration, no damage ; Max. 120 g (1176 m/s² 0-peak) and 11 ms duration, no damage
Shock – Transport	Max. 1000 g (9800 m/s² 0-peak) and 1 ms duration, no damage ; Max. 120 g (1176 m/s² 0-peak) and 11 ms duration, no damage
Elevation – Operation	-300 to 3048 m
Elevation – Storage	-300 to 12192 m

Mechanical properties

Dimensions – Width	13 mm
Dimensions – Length	130 mm
Dimensions – Height	98 mm
Installation	Permanent (note: Add-on installation.)
Weight	146 g

Vendor information

Manufacturer	Hitachi
Manufacturer's product ID	HTE721060G9AT00
