B&R 5AC600.HDDI-04
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 146 kg |
Shipping & availability
When can 5AC600.HDDI-04 be shipped?
5AC600.HDDI-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC600.HDDI-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC600.HDDI-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC600.HDDI-04, subject to availability and destination.

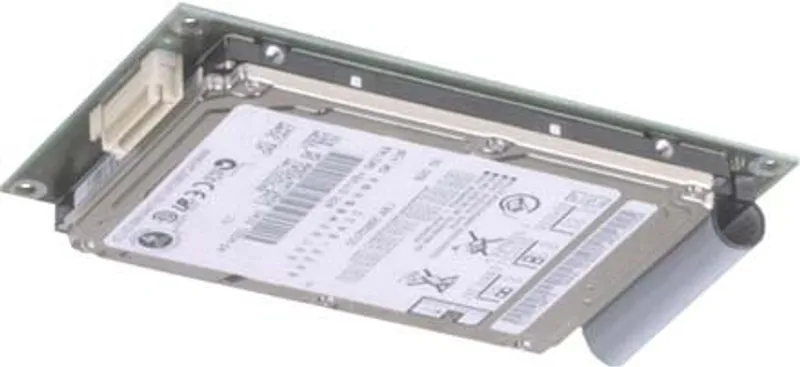

80 GB hard disk 24/7 (add-on) for installation in an APC620 or Panel PC. Note: See the manual for information about using the hard disk.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Capacity | 80 GB |
| Number of heads | 4 |
| Number of sectors | 156,301,488 |
| Bytes per sector | 512 |
| Cache | 8 MB |
| Speed | 7200 rpm ±1% |
| Startup time | Typ. 4 s (from 0 rpm to read access) |
| Service life | 5 years or 30,000 power-on hours (POH) |
| MTBF | 550,000 hours |
| S.M.A.R.T. support | No |
| Interface | ATA-6 |
| Access time | 10 ms |
| Internal | Max. 629 Mbit/s |
| To/From host | Max. 100 MB/s (Ultra DMA mode 5) |
| Minimum (track to track) | 1 ms |
| Nominal (read access) | 10 ms |
| Maximum (read access) | 16 ms |
| Operation | -300 to 3048 m |
| 24-hour operation | 5 to 40°C |
| Storage | -300 to 12192 m |
| Transport | Max. 1000 g (9800 m/s² 0-peak) and 1 ms duration, no damage Max. 120 g (1176 m/s² 0-peak) and 11 ms duration, no damage |
| Installation | Permanent |
| Width | 13 mm |
| Length | 130 mm |
| Height | 98 mm |
| Weight | 146 g |
| Manufacturer | Hitachi |
| Manufacturer's product ID | HTE721080G9AT00 |
