B&R 5AC600.FDDS-00
FDD drive (slide-in) for operation in a drive slot in an…
- MPN
- 5AC600.FDDS-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5AC600.FDDS-00?

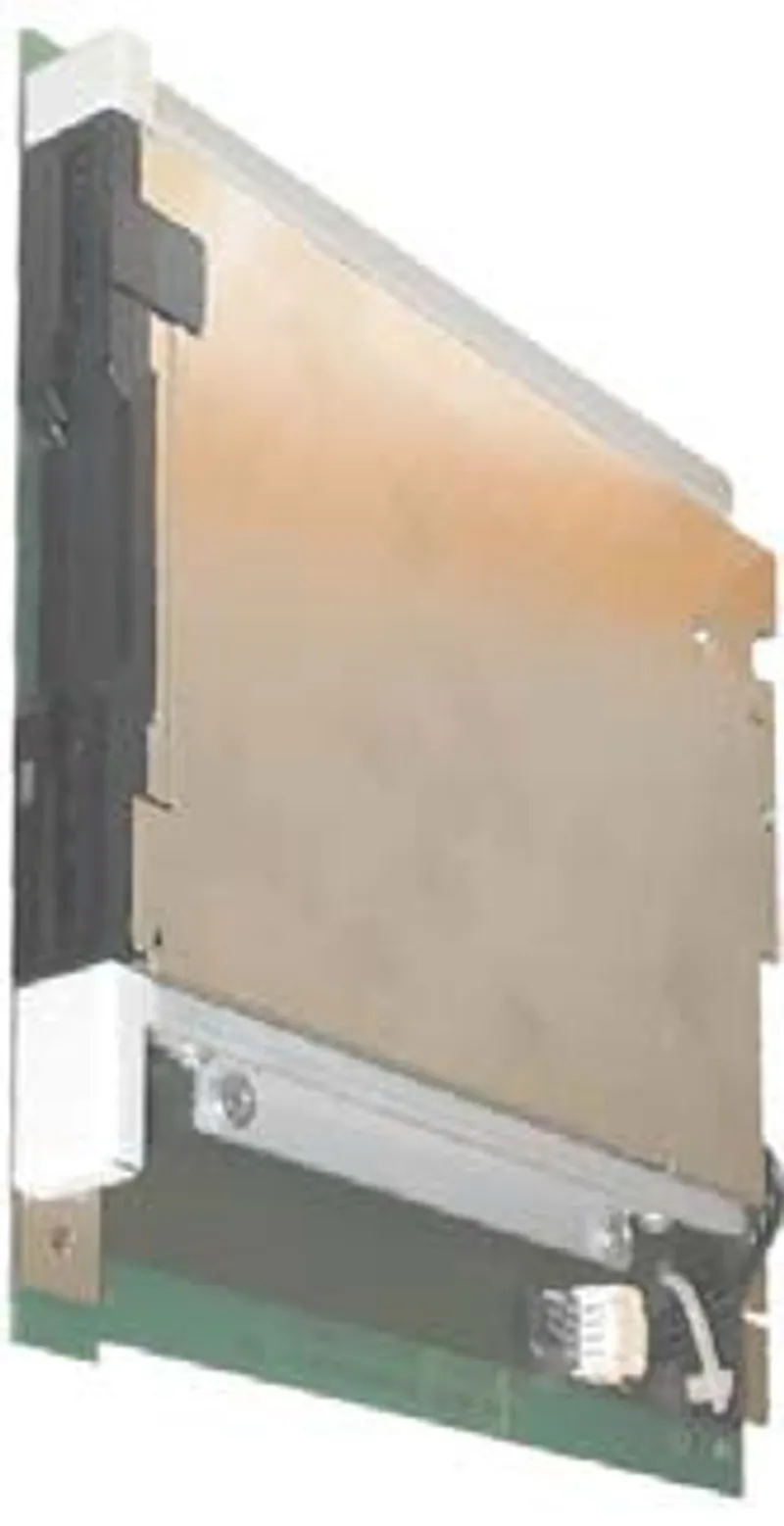

FDD drive (slide-in) for operation in a drive slot in an APC620 or PPC700.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Interfaces
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) |
Disk drive
| Data transfer rate | 250 kbit/s (720 kB) or 500 kbit/s (1.25 MB and 1.44 MB) |
| Diskette media | High density (2HD) or normal density (2DD) 3.5" floppy disks |
| Capacity | 720 kB / 1.25 MB / 1.44 MB (formatted) |
| MTBF | 30,000 POH (power-on hours) |
| Rotational speed | Up to 360 rpm |
Ambient conditions
| Temperature – Operation | 4 to 50°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Storage | -20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Transport | -20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Relative humidity – Operation | 20 to 80% |
| Relative humidity – Storage | 5 to 90% |
| Relative humidity – Transport | 5 to 90% |
| Vibration – Operation | At max. 5 to 500 Hz and 0.3 g |
| Vibration – Storage | At max. 10 to 100 Hz and 2 g |
| Vibration – Transport | At max. 10 to 100 Hz and 2 g |
| Shock – Operation | At max. 5 g and 11 ms duration |
| Shock – Storage | At max. 60 g and 11 ms duration |
| Shock – Transport | At max. 60 g and 11 ms duration |
| Elevation – Operation | Max. 3000 m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5AC600.FDDS-00: frequently asked questions
When can 5AC600.FDDS-00 be shipped?
5AC600.FDDS-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC600.FDDS-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC600.FDDS-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC600.FDDS-00, subject to availability and destination.
