B&R 5AC600.HDDI-00
30 GB hard disk 24/7 (add-on) for installation in an APC620…
- MPN
- 5AC600.HDDI-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC600.HDDI-00?

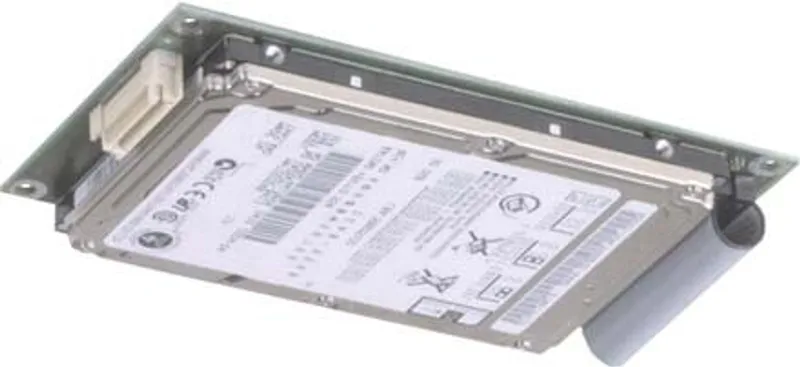

30 GB hard disk 24/7 (add-on) for installation in an APC620 or Panel PC. Note: See the manual for information about using the hard disk.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Hard disk
| Data transfer rate – Internal | Max. 36.2 MB/s |
| Data transfer rate – To/From host | Max. 100 MB/s (Ultra DMA mode 5) |
| Positioning time – Minimum (track to track) | 1.5 ms |
| Positioning time – Nominal (read access) | 12 ms |
| Positioning time – Maximum (read access) | 22 ms |
| Capacity | 30 GB |
| Number of heads | 2 |
| Number of sectors | 58,605,120 |
| Bytes per sector | 512 |
| Cache | 2 MB |
| Speed | 4200 rpm ±1% |
| Startup time | Typ. 5 s (from 0 rpm to read access) |
| Service life | 5 years or 20,000 power-on hours (POH) |
| MTBF | 300,000 hours |
| S.M.A.R.T. support | No |
| Interface | ATA-6 |
| Access time | 7.14 ms |
Ambient conditions
| Temperature – Operation | 5 to 55°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – 24-hour operation | 5 to 44°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Storage | -40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Transport | -40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Relative humidity – Operation | 8 to 90% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
| Vibration – Operation | At max. 5 to 500 Hz and 1 g (9.8 m/s² 0-peak): No unrecoverable errors |
| Vibration – Storage | At max. 5 to 500 Hz and 5 g (49 m/s² 0-peak): No damage |
| Vibration – Transport | At max. 5 to 500 Hz and 5 g (49 m/s² 0-peak): No damage |
| Shock – Operation | At max. 125 g (1226 m/s² 0-peak) and 2 ms duration, no unrecoverable errors |
| Shock – Storage | At max. 900 g (8820 m/s² 0-peak) and 1 ms duration, no damage ; At max. 120 g (1176 m/s² 0-peak) and 11 ms duration, no damage |
| Shock – Transport | At max. 900 g (8820 m/s² 0-peak) and 1 ms duration, no damage ; At max. 120 g (1176 m/s² 0-peak) and 11 ms duration, no damage |
| Elevation – Operation | -300 to 3000 m |
| Elevation – Storage | -300 to 12000 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Length | 130 mm |
| Dimensions – Height | 98 mm |
| Installation | Permanent (note: Add-on mounting.) |
| Weight | 136 g |
Vendor information
| Manufacturer | Fujitsu |
| Manufacturer's product ID | MHT2030AR |
