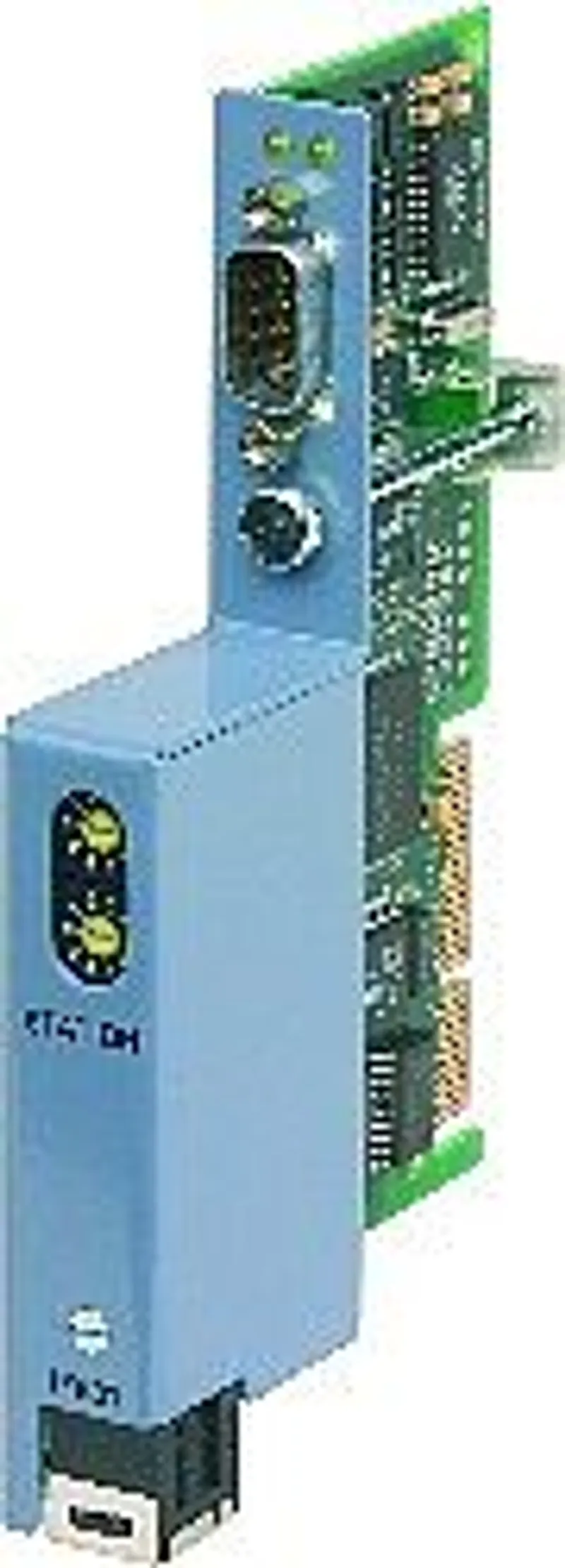

B&R 3IF681.96

2005 interface module 1 RS232 interface 1 ETHERNET…

MPN: 3IF681.96

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF681.96?

2005 interface module 1 RS232 interface 1 ETHERNET interface, designed as 10BASE-T twisted pair female RJ45 connector

Specifications

General Information

C-UL-US Listed	Yes
Slot	Insert e.g. in CP260, IF260
Interfaces	1 x RS232 1 x ETHERNET
Power Consumption – 5V	Max. 1.65 W
Power Consumption – Total	Max. 1.65 W
Type	RS232
Controller	UART Type ST16C650
FIFO	32 bytes in send and receive direction
Design	9-pin DSUB plug
Electrical Isolation	No
Input Filter / Protective Circuit	Yes
Maximum Distance	15 m / 19200 Baud
Maximum Baud Rate	115.2 kBaud
Handshake Lines	DTR, DSR, RTS, CTS
Network Capable	No
Data Formats – Data Bits	5 to 8
Data Formats – Parity	Yes / No / Even / Odd
Data Formats – Stop Bits	1/2
Type	ETHERNET
Design	10BASE-T: twisted pair RJ45 socket
Electrical Isolation	Yes
Controller	Controller AM79C960
Send and receive buffer	128 KB
Maximum Baud Rate	10 MBit/s
Bus Capable	Yes

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3IF681.96PDF · 320 KB · 1.0 (06/08/2004) - EN
