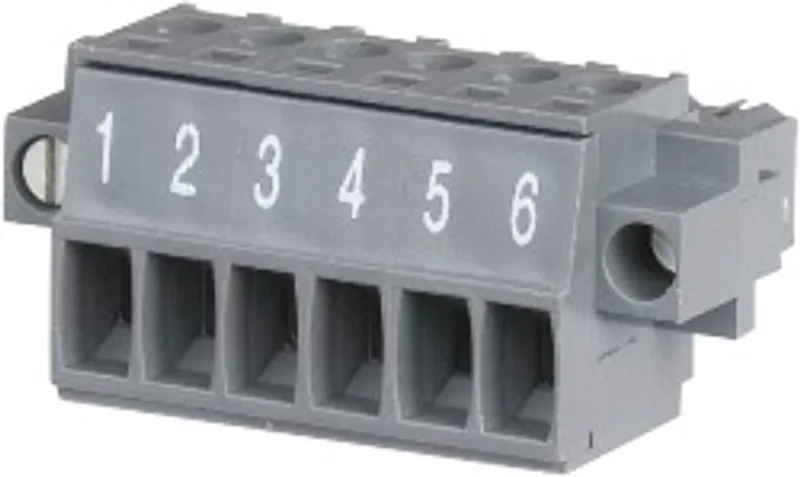

B&R 0TB1106.8010

Accessory terminal block, 6-pin

MPN: 0TB1106.8010
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB1106.8010?

Accessory terminal block, 6-pin, screw clamp terminal block 1.5 mm², protected against vibration by the screw flange

Specifications

Terminal block

Connection cross section – AWG wire	28 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 1.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Protected against vibration by the screw flange, nominal data per UL
Number of pins	6
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm
Wire stripping length	6 mm
Tightening torque	0.2 to 0.25 Nm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.2 mΩ
