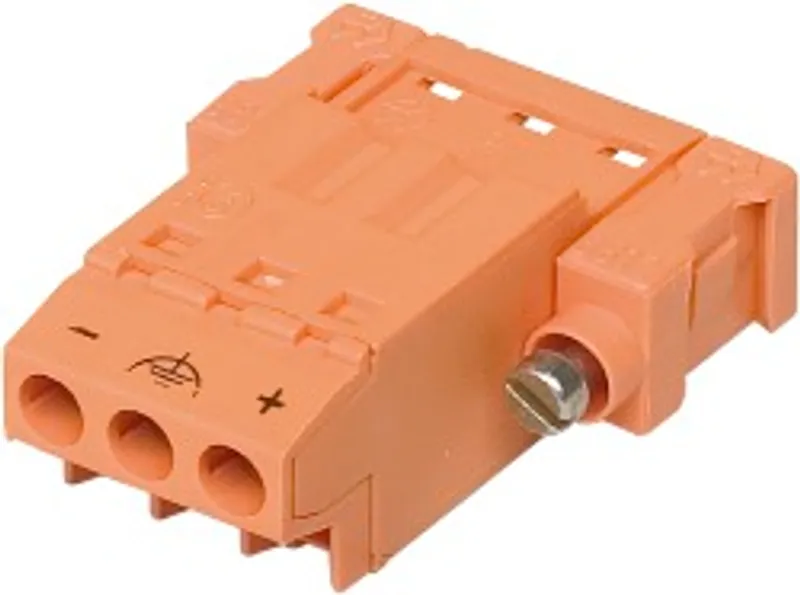

B&R 0TB103.8

1-row 3-pin terminal block 0TB103 is for the power…

MPN: 0TB103.8

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB103.8?

1-row 3-pin terminal block 0TB103 is used for the power supply.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes

Terminal block

Connection cross section – AWG wire	22 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Protected against vibration by the screw flange ; Nominal data per UL
Number of pins	3 (male)
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ
