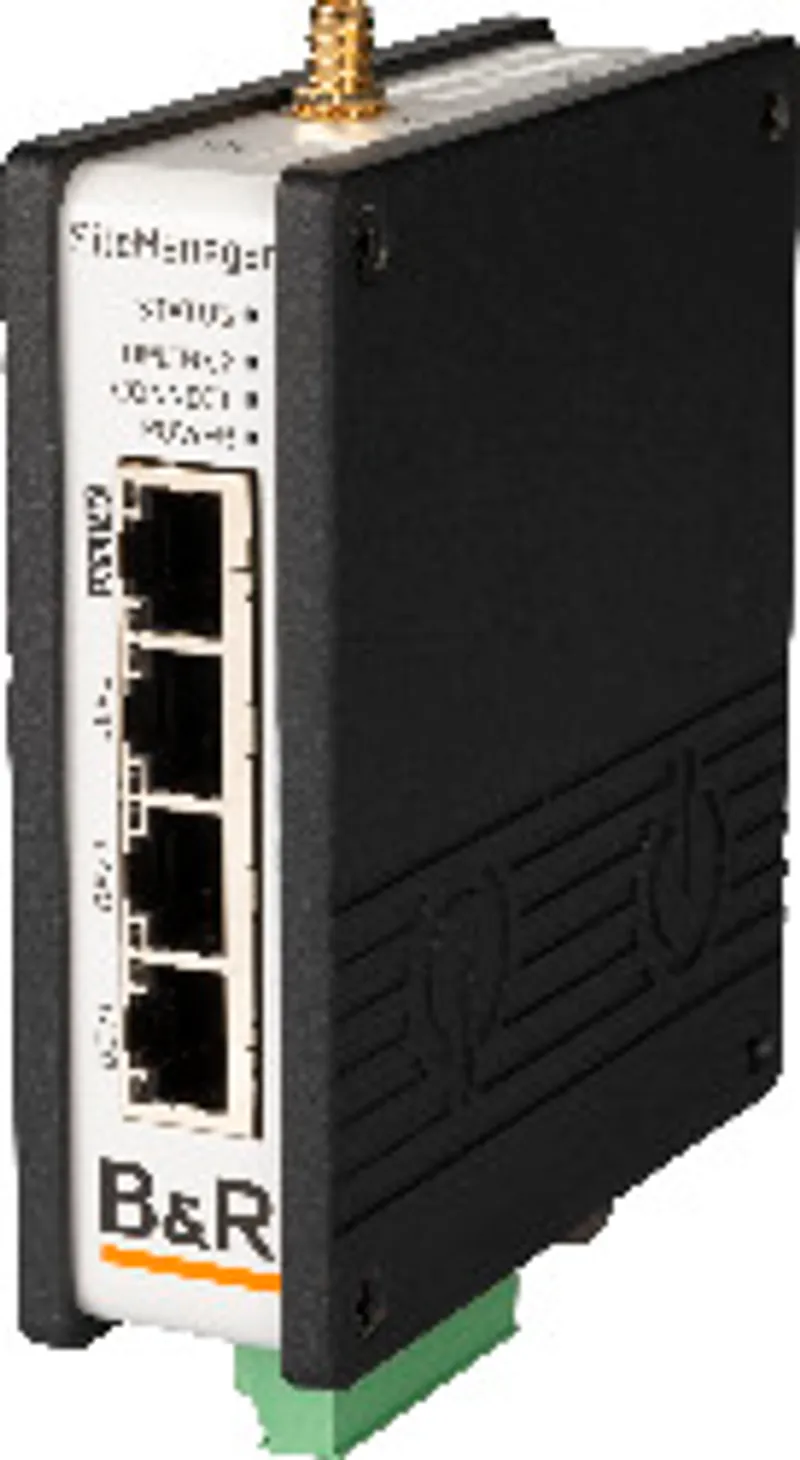

B&R 0RMSM1335.4G
Secure Remote Maintenance -SiteManager
- MPN
- 0RMSM1335.4G
- Category
- SiteManager
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 0RMSM1335.4G?
Secure Remote Maintenance -SiteManager, 1x Ethernet 100BASE-T uplink connection, 1x GPRS/3G/4G uplink connection, 3x device connections, 10 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC
Specifications
General information
| B&R ID code | 0x6C5F |
| Reset button | Yes |
| Status LED | Supply voltage; Status; LinkManager connection; Wireless connection |
| Power consumption | Max. 5 W (without USB); Max. 8 W (with USB) |
Functionality
| Data transfer / Frequency domain – LTE band | B1 (FDD 2100) IMT; B2 (FDD 1900) PCS; B3 (1800 +) DCS; B4 (1700) AWS; B5 (850) CLR, US, Korea, etc.; B7 (2600) IMT-E; B8 (900) E-GSM; B12 (700) US; B13 (700c) USMH, LSMH US; B18 (800 or 850?) Japan #4 ; B19 (800 or 850?) Japan #5; B20 (800) digital dividend; B25 (1900 b Block); B26 (850+) extended CLR; B28 (700 APT) APAC; B34 (TDD); B38 (TDD 2600) IMT-E; B39 (TDD 1900 +) China; B40 (TDD 2300) China; B41 (TDD 2500) BRS/EBS; B66 (TDD) |
| Data transfer / Frequency domain – WCDMA/UMTS | B1 (2100) IMT; B2 (1900) PCS; B4 (1700) AWS; B5 (850) CLR, US, Korea, etc.; B6 (850) Japan #1; B8 (900) E-GSM; B19 (800 or 850?) Japan #5 |
| Data transfer / Frequency domain – GPRS/EDGE | B2 (1900); B3 (1800); B5 (850); B8 (900) |
Controller
| Processor – Type | ARM Cortex-A7 MCU |
| Processor – Clock frequency | 800 MHz |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| Interface IF1 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF1 – Half-duplex | Yes |
| Interface IF1 – Full-duplex | Yes |
| Interface IF1 – Autonegotiation | Yes |
| Interface IF1 – Auto-MDI/MDIX | Yes |
| Interface IF1 – Type | Ethernet UPLINK1 |
| Interface IF1 – Variant | Shielded RJ45 |
| Interface IF1 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF1 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF2 – Type | DEV1 |
| Interface IF2 – Variant | Shielded RJ45 |
| Interface IF2 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF3 – Type | 4G/3G/GPRS |
| Interface IF3 – Variant | SMA female |
| Interface IF3 – Transfer rate | Downlink: 50 Mbit/s (10 MHz bandwidth); Uplink: 25 Mbit/s (10 MHz bandwidth) |
| Interface IF5 – Type | DEV2 |
| Interface IF5 – Variant | Shielded RJ45 |
| Interface IF5 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF6 – Type | DEV3 |
| Interface IF6 – Variant | Shielded RJ45 |
| Interface IF6 – Transfer rate | Max. 10/100 Mbit/s |
| RS232 | DB9 serial interface with full data flow control |
Electrical properties
| Nominal voltage | 12 to 24 VDC -10% / +20% |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Storage | -40 to 60°C |
| Relative humidity – Operation | 5 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
| Elevation – Operation | 2000 m |
Mechanical properties
| Dimensions – Width | 32 mm |
| Dimensions – Height | 107 mm |
| Dimensions – Depth | 97 mm |
| Material | Aluminum |
| Weight | 0.5 kg |
No matching specifications
Accessories
Optional accessories (5)
| 0RMSM.AMB-20 | Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 5 m cable, screw and hole installation, compatible w… |
| 0RMSM.AMB-10 | Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 3 m cable, screw and hole installation, compatible w… |
| 0RMSM.A3G-20 | Antennas — GSM/3G mini antenna Frequencies: 824-960/1710-2170 MHz, SMA connector (male), 3 m cable, magnetic attachment, compatible with 0RMSM1x35 |
| 0RMSM.A3G-10 | Antennas — GSM/3G puck antenna Frequencies: 880-960/1710-2170 MHz, SMA connector (male), 2.5 m cable, Screw or hole mounting, IP67, compatible with 0R… |
| 0TB6110.2010-01 | Terminal blocks — Accessory terminal block, 10-pin (3.81), screw clamp terminal block 1.5 mm² |
