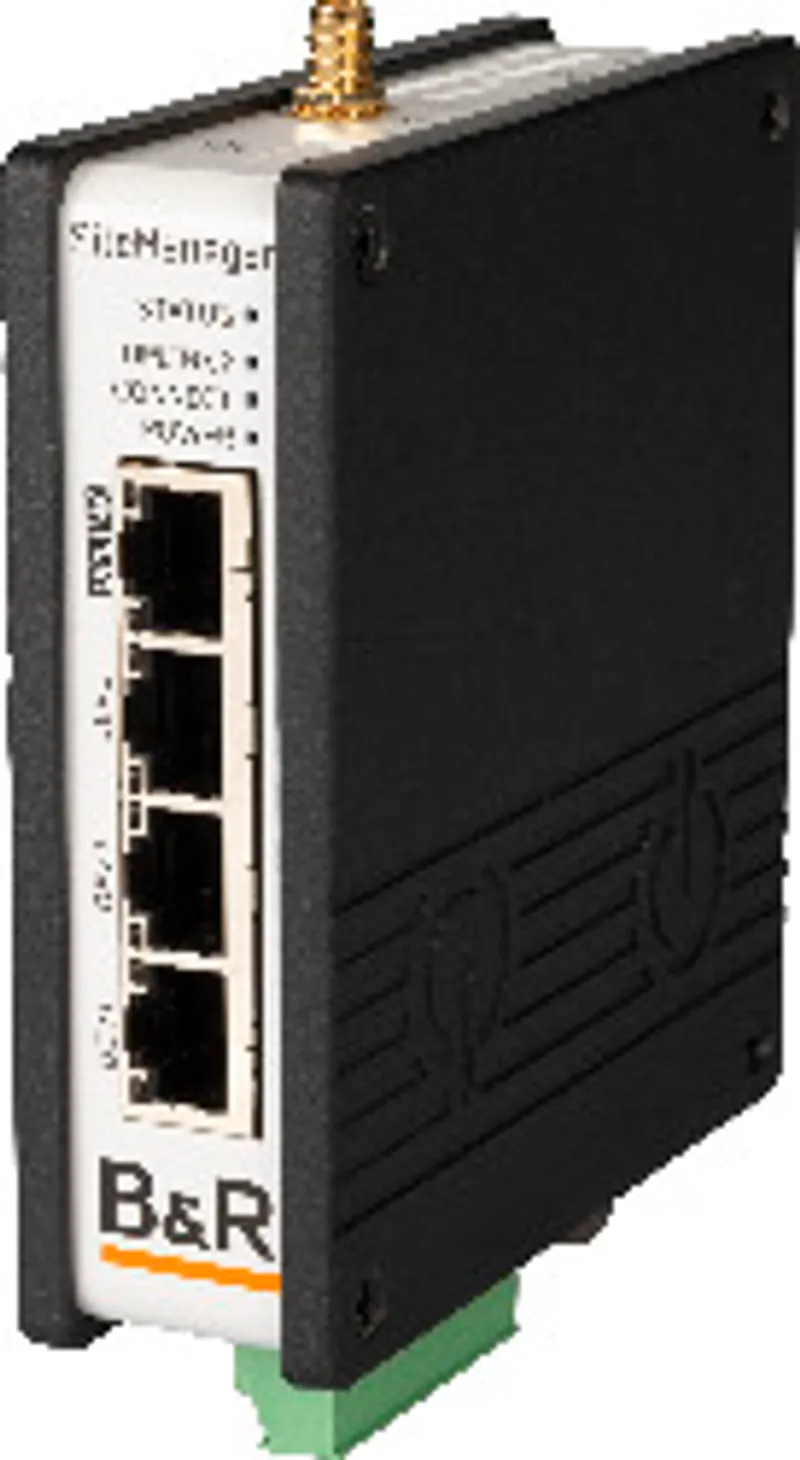

B&R 0RMSM1345
Secure Remote Maintenance -SiteManager
- MPN
- 0RMSM1345
- Category
- SiteManager
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0RMSM1345?
Secure Remote Maintenance -SiteManager, 1x Ethernet 100BASE-T uplink connection, 1x Wi-Fi uplink connection, 3x device connections, 10 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC
Specifications
General information
| B&R ID code | 0x6C60 |
| Reset button | Yes |
| Status LED | Supply voltage; Status; LinkManager connection; Wireless connection |
| Power consumption | Max. 5 W (without USB); Max. 8 W (with USB) |
Functionality
| Data transfer / Frequency domain – Integrated Wi-Fi module | 2.4 GHz; 5 GHz |
Controller
| Processor – Type | ARM Cortex-A7 MCU |
| Processor – Clock frequency | 800 MHz |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| Interface IF1 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF1 – Half-duplex | Yes |
| Interface IF1 – Full-duplex | Yes |
| Interface IF1 – Autonegotiation | Yes |
| Interface IF1 – Auto-MDI/MDIX | Yes |
| Interface IF1 – Type | Ethernet UPLINK1 |
| Interface IF1 – Variant | Shielded RJ45 |
| Interface IF1 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF1 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF2 – Type | DEV1 |
| Interface IF2 – Variant | Shielded RJ45 |
| Interface IF2 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF4 – Type | Wi-Fi |
| Interface IF4 – Variant | RP-SMA female |
| Interface IF5 – Type | DEV2 |
| Interface IF5 – Variant | Shielded RJ45 |
| Interface IF5 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF6 – Type | DEV3 |
| Interface IF6 – Variant | Shielded RJ45 |
| Interface IF6 – Transfer rate | Max. 10/100 Mbit/s |
| RS232 | DB9 serial interface with full data flow control |
Electrical properties
| Nominal voltage | 12 to 24 VDC -10% / +20% |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Storage | -40 to 60°C |
| Relative humidity – Operation | 5 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
| Elevation – Operation | 2000 m |
Mechanical properties
| Dimensions – Width | 32 mm |
| Dimensions – Height | 107 mm |
| Dimensions – Depth | 97 mm |
| Material | Aluminum |
| Weight | 0.5 kg |
Accessories
Optional accessories (2)
| 0RMSM.AWIFI-10 | Antennas — Wi-Fi puck antenna, 2.4 & 5 GHz, compatible with 0RMSM1x45, 2 m cable |
| 0TB6110.2010-01 | Terminal blocks — Accessory terminal block, 10-pin (3.81), screw clamp terminal block 1.5 mm² |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
0RMSM1345: frequently asked questions
When can 0RMSM1345 be shipped?
0RMSM1345 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0RMSM1345 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0RMSM1345 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0RMSM1345, subject to availability and destination.
