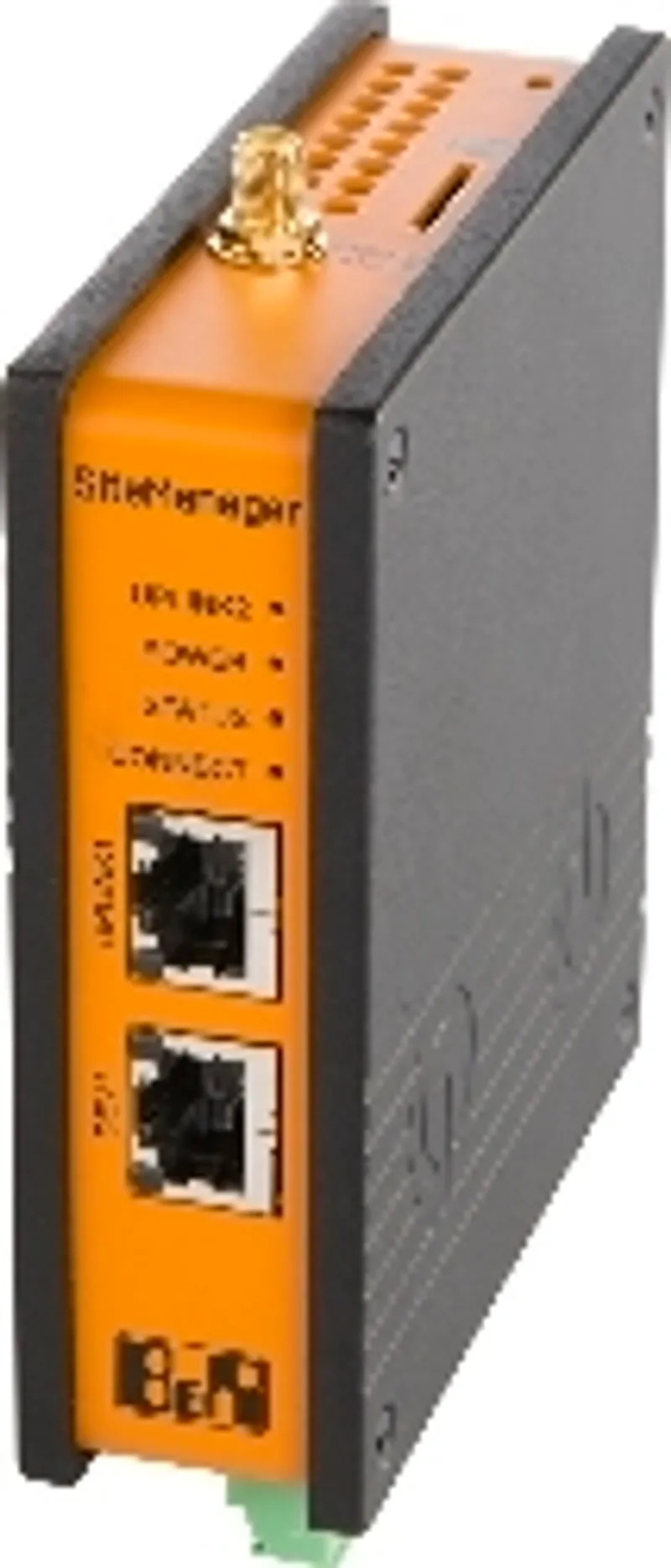

B&R 0RMSM1135.4G-JP
Secure Remote Maintenance -SiteManager, LTE/4G/3G
- MPN
- 0RMSM1135.4G-JP
- Category
- SiteManager
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 0RMSM1135.4G-JP?
Secure Remote Maintenance -SiteManager, LTE/4G/3G, for region JAPAN 1x Ethernet 100BASE-T uplink port, 1x GPRS/3G uplink port, 5 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC
Specifications
General information
| B&R ID code | 0xF241 |
| Reset button | Yes |
| Status LED | Supply voltage; Status; LinkManager connection; Wireless connection |
| Power consumption | Max. 5 W |
Functionality
| Data transfer / Frequency domain – LTE band | B1 (FDD 2100) IMT; B3 (1800 +) DCS; B8 (900) E-GSM; B18 (800 or 850?) Japan #4; B19 (800 or 850?) Japan #5 |
| Data transfer / Frequency domain – WCDMA/UMTS | B1 (2100) IMT ; B6 (850) Japan #1 ; B8 (900) E-GSM |
| Data transfer / Frequency domain – GPRS/EDGE | B3 (1800); B8 (900) |
Controller
| Processor – Type | ARM Cortex-A5 |
| Processor – Clock frequency | 563 MHz |
Interfaces
| Interface IF1 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF1 – Half-duplex | Yes |
| Interface IF1 – Full-duplex | Yes |
| Interface IF1 – Autonegotiation | Yes |
| Interface IF1 – Auto-MDI/MDIX | Yes |
| Interface IF1 – Type | Ethernet UPLINK1 |
| Interface IF1 – Variant | Shielded RJ45 |
| Interface IF1 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF1 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF2 – Type | DEV1 |
| Interface IF2 – Variant | Shielded RJ45 |
| Interface IF2 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF3 – Type | 4G/3G/GPRS |
| Interface IF3 – Variant | SMA female |
| Interface IF3 – Transfer rate | Downlink: 50 Mbit/s (10 MHz bandwidth); Uplink: 25 Mbit/s (10 MHz bandwidth) |
Electrical properties
| Nominal voltage | 12 to 24 VDC |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | -25 to 45°C |
| Relative humidity – Operation | 5 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
Mechanical properties
| Dimensions – Width | 32 mm |
| Dimensions – Height | 107 mm |
| Dimensions – Depth | 97 mm |
| Material | Aluminum |
| Weight | 0.5 kg |
No matching specifications
Accessories
Optional accessories (3)
| 0RMSM.AMB-20 | Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 5 m cable, screw and hole installation, compatible w… |
| 0RMSM.AMB-10 | Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 3 m cable, screw and hole installation, compatible w… |
| 0TB6110.2010-01 | Terminal blocks — Accessory terminal block, 10-pin (3.81), screw clamp terminal block 1.5 mm² |
