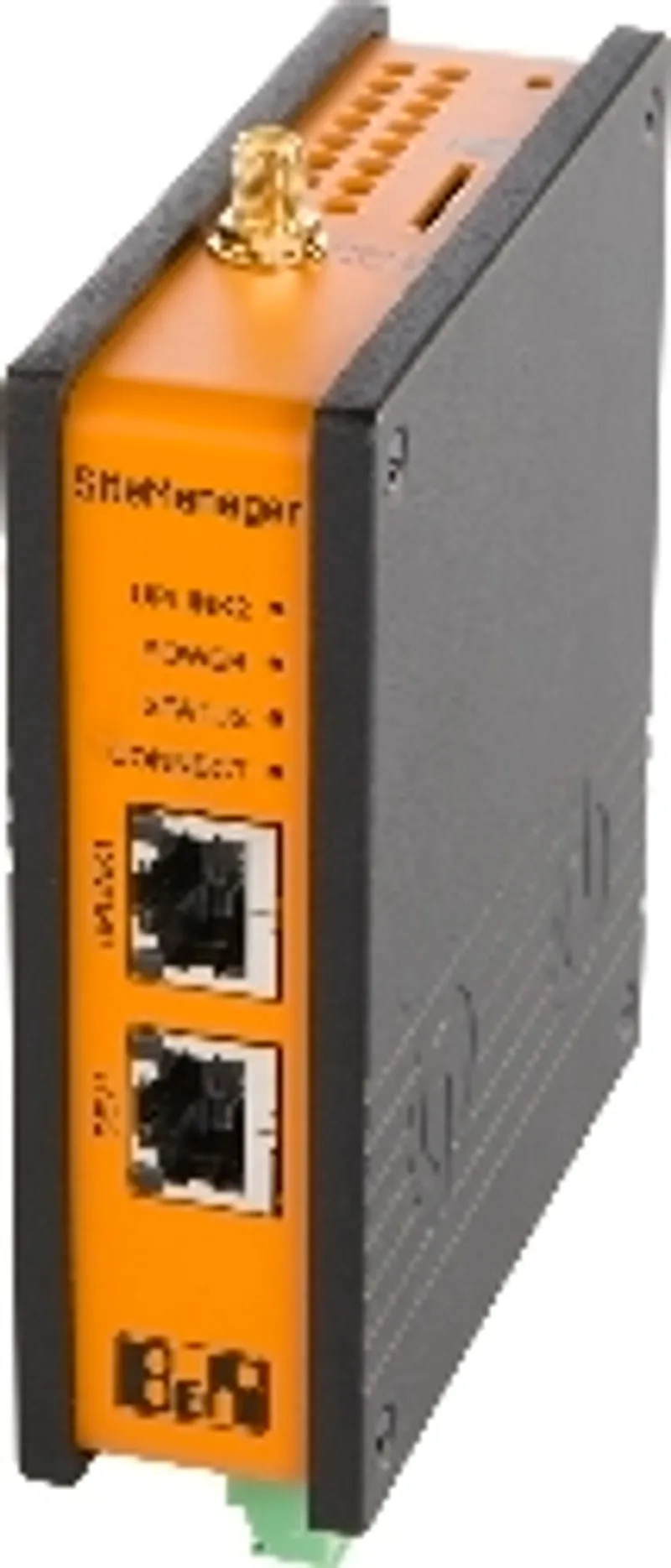

B&R 0RMSM1135.4G-US

Secure Remote Maintenance -SiteManager, LTE/4G/3G

MPN: 0RMSM1135.4G-US
Category: SiteManager

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 0RMSM1135.4G-US?

Secure Remote Maintenance -SiteManager, LTE/4G/3G, for US region 1x Ethernet 100BASE-T uplink port, 1x GPRS/3G uplink port, 5 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC, note: does not work when using a Verizon SIM card!

Specifications

General information

B&R ID code	0xEE26
Reset button	Yes
Status LED	Supply voltage; Status; LinkManager connection; Wireless connection
Power consumption	Max. 5 W

Functionality

Data transfer / Frequency domain – LTE band	B2 (FDD 1900) PCS; B4 (1700) AWS; B5 (850) CLR, US, Korea, etc.; B17 (700bc) USMH, LSMH US
Data transfer / Frequency domain – WCDMA/UMTS	B2 (1900) PCS ; B5 (850) CLR

Controller

Processor – Type	ARM Cortex-A5
Processor – Clock frequency	563 MHz

Interfaces

Interface IF1 – Physical layer	10BASE-T/100BASE-TX
Interface IF1 – Half-duplex	Yes
Interface IF1 – Full-duplex	Yes
Interface IF1 – Autonegotiation	Yes
Interface IF1 – Auto-MDI/MDIX	Yes
Interface IF1 – Type	Ethernet UPLINK1
Interface IF1 – Variant	Shielded RJ45
Interface IF1 – Line length	Max. 100 m between 2 nodes (segment length)
Interface IF1 – Transfer rate	Max. 10/100 Mbit/s
Interface IF2 – Type	DEV1
Interface IF2 – Variant	Shielded RJ45
Interface IF2 – Transfer rate	Max. 10/100 Mbit/s
Interface IF3 – Type	4G/3G/GPRS
Interface IF3 – Variant	SMA female
Interface IF3 – Transfer rate	Downlink: 50 Mbit/s (10 MHz bandwidth); Uplink: 25 Mbit/s (10 MHz bandwidth)

Electrical properties

Nominal voltage

12 to 24 VDC

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	-25 to 45°C
Relative humidity – Operation	5 to 95%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	5 to 95%

Mechanical properties

Dimensions – Width	32 mm
Dimensions – Height	107 mm
Dimensions – Depth	97 mm
Material	Aluminum
Weight	0.5 kg

Accessories

Optional accessories (3)

0RMSM.AMB-20	Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 5 m cable, screw and hole installation, compatible w…
0RMSM.AMB-10	Antennas — GSM/3G/LTE broadband antenna Frequencies: 750-1250, 1650-2700 MHz, male SMA connector, 3 m cable, screw and hole installation, compatible w…
0TB6110.2010-01	Terminal blocks — Accessory terminal block, 10-pin (3.81), screw clamp terminal block 1.5 mm²

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

0RMSM1135 DFX/STP fileZIP · 4 MB · 1.00 (03/17/2021)

Certificates (1)

Declaration of ConformityPDF · 808 KB · 11 (04/05/2022)
