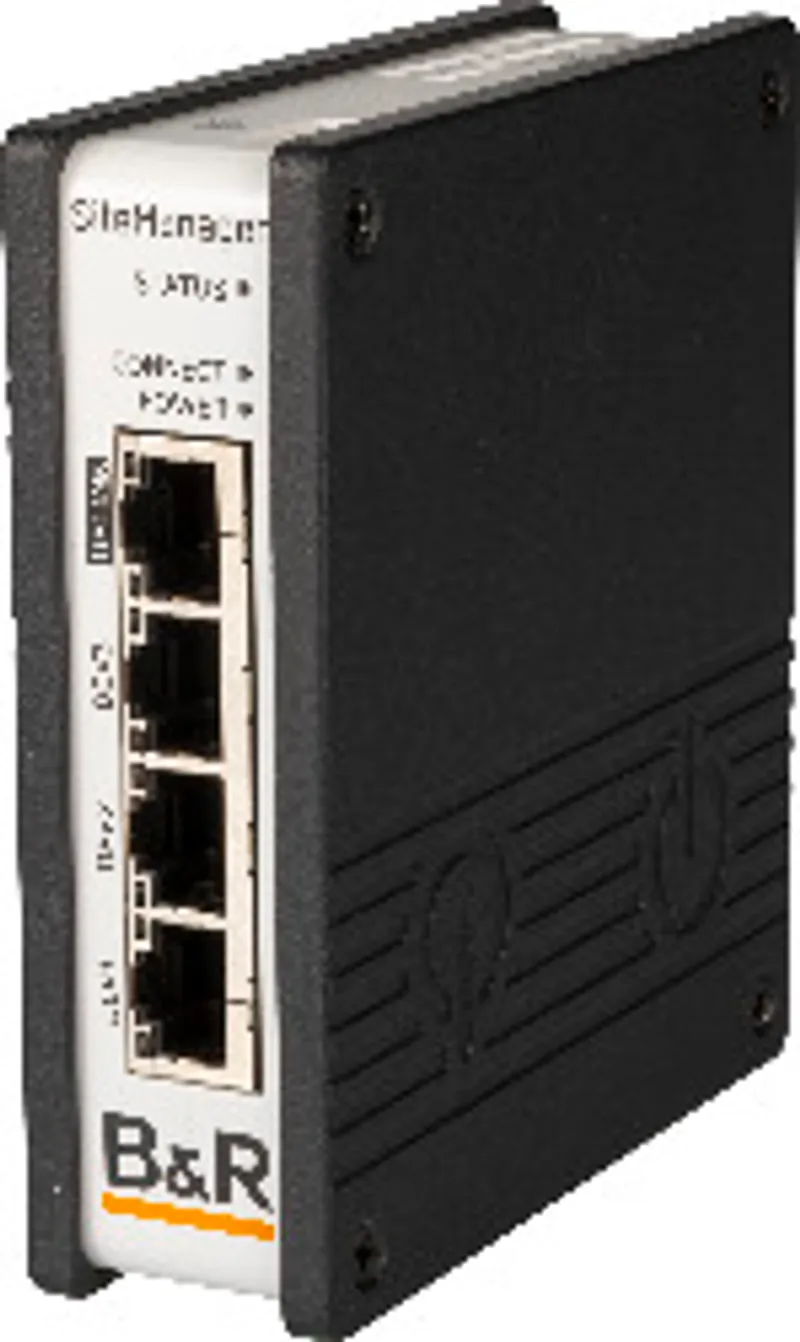

B&R 0RMSM1315
Secure Remote Maintenance -SiteManager
- MPN
- 0RMSM1315
- Category
- SiteManager
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0RMSM1315?
Secure Remote Maintenance -SiteManager, LAN 1x Ethernet 100BASE-T uplink connection, 3x device connections, 10 device agents, integrated firewall, 2x digital inputs, 2x digital outputs, 24 VDC
Specifications
General information
| B&R ID code | 0x6C5E |
| Reset button | Yes |
| Status LED | Supply voltage; Status; LinkManager connection |
| Power consumption | Max. 5 W (without USB); Max. 8 W (with USB) |
Controller
| Processor – Type | ARM Cortex-A7 MCU |
| Processor – Clock frequency | 800 MHz |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| Interface IF1 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF1 – Half-duplex | Yes |
| Interface IF1 – Full-duplex | Yes |
| Interface IF1 – Autonegotiation | Yes |
| Interface IF1 – Auto-MDI/MDIX | Yes |
| Interface IF1 – Type | Ethernet UPLINK1 |
| Interface IF1 – Variant | Shielded RJ45 |
| Interface IF1 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF1 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF2 – Type | DEV1 |
| Interface IF2 – Variant | Shielded RJ45 |
| Interface IF2 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF5 – Type | DEV2 |
| Interface IF5 – Variant | Shielded RJ45 |
| Interface IF5 – Transfer rate | Max. 10/100 Mbit/s |
| Interface IF6 – Type | DEV3 |
| Interface IF6 – Variant | Shielded RJ45 |
| Interface IF6 – Transfer rate | Max. 10/100 Mbit/s |
| RS232 | DB9 serial interface with full data flow control |
Electrical properties
| Nominal voltage | 12 to 24 VDC -10% / +20% |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Storage | -40 to 60°C |
| Relative humidity – Operation | 5 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
| Elevation – Operation | 2000 m |
Mechanical properties
| Dimensions – Width | 32 mm |
| Dimensions – Height | 107 mm |
| Dimensions – Depth | 97 mm |
| Material | Aluminum |
| Weight | 0.5 kg |
Accessories
Optional accessories (1)
| 0TB6110.2010-01 | Terminal blocks — Accessory terminal block, 10-pin (3.81), screw clamp terminal block 1.5 mm² |
