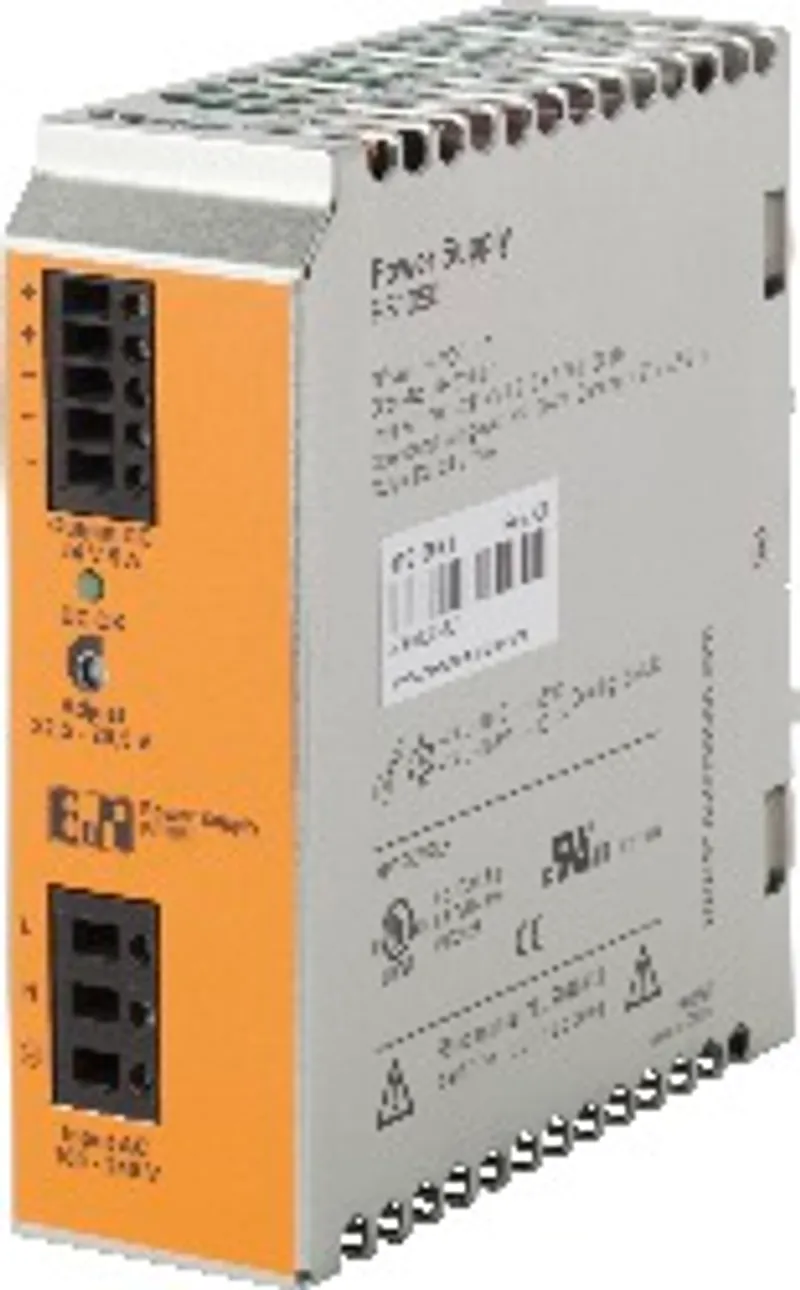

B&R 0PS1050.1

100 to 240 VAC wide-range input

MPN: 0PS1050.1
Category: Single-phase power supplies

€62.54excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0PS1050.1?

100 to 240 VAC wide-range input

High dielectric strength

Can be connected in parallel for increased capacity and redundancy

Reliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)

International certification package

Wide temperature range from -25 to 70°C

Slender design

Closed metal housing

24 VDC power supply, 1-phase, 5 A, input 100 to 240 VAC, wide range, top-hat rail installation

Specifications

General information

Isolation voltage – Input - Output	4 kV AC (type test); 2 kV AC (routine test)
Isolation voltage – Input - PE	2 kV AC (type test); 2 kV AC (routine test)
Isolation voltage – Output - PE	500 VDC (type test)
Connection cross section – Wire end sleeves	Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950
Connection cross section – Flexible	0.2 to 2.5 mm² / 24 to 14 AWG
Connection cross section – Inflexible	0.2 to 2.5 mm² / 24 to 14 AWG
Certification – CE	Yes
Status display	Green LED (DC OK), threshold value U out = 21.5 V
Type of connection	Screw terminal
Wire stripping length	9 mm (input/output)

Input

Nominal input voltage	100 to 240 VAC
Input voltage	AC 85 to 264 V (wide range), 45 to 65 Hz
Input current	Approx. 1.65 A (120 VAC) ; Approx. 0.9 A (230 VAC)
Starting current limitation	<15 A
I 2t	1.1 A 2s
Power failure bypass	>20 ms (120 VAC); >110 ms (230 VAC)
Turn-on time	<1 s
Power factor (cos φ)	0.72
Discharge current to PE	<3.5 mA
Protective circuit	Transient surge protection with varistor
Internal fuse	3.15 A slow-blow
Required line fuse for line protection	6 A ; 10 A ; 16 A (characteristic B)

Output

Output current – -25 to 55°C	5 A
Output current – >55°C	Derating: 2.5% per °C
Nominal voltage	24 VDC ±1%
Output power	120 W
Setting range for output voltage	22.5 to 29.5 VDC
Current limitation	Approx. 10 A (for short circuit)
Control deviation	<1% (static load change 10 to 90%); <2% (dynamic load change 10 to 90%); <0.1% (input voltage change ±10%)
Rise time	<2 ms (U OUT (10 to 90%))
Residual ripple	<20 mV SS
Switching spikes	<30 mV SS
Can be connected in parallel	Yes, to establish redundancy and increase capacity
Can be connected in series	Yes
Max. capacitive load	Unlimited
Protection against internal overvoltages	Yes, limited to <35 VDC
Protection functions	Output protected against continuous short circuit, open circuit and overload
Power back immunity	Max. 35 VDC
Output noise suppression	Device complies with EN 55011 (class B)

Efficiency, reliability

Power loss – Rated load	Max. 18 W
Power loss – No-load operation	Max. 1.1 W
Effectiveness	>89%
MTBF	>500,000 h, per IEC 61709 (SN 29500)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	No
Installation at elevations above sea level – Maximum	4000 m
Ventilation / Cooling	Normal convection, no fan required
EN 60529 protection	IP20
Rated protection	I, with PE connection

Environmental conditions

Temperature – Operation	-25 to 70°C (>55°C derating)
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Max. 95%, non-condensing
Vibration – Operation	<15 Hz, amplitude ±2.5 mm, per IEC 60068-2-6; 15 to 150 Hz, 2.3 g, 90 min
Shock – Operation	15 g in each direction, per IEC 60068-2-27
Degree of pollution	2, per EN 50178
Climate category	3K3, per EN 60721

Mechanical characteristics

Housing – Materials	Steel sheet, galvanized; Side panels: Aluminum
Dimensions – Width	40 mm
Dimensions – Height	130 mm
Dimensions – Depth	115 mm
Installation	Easy top-hat rail installation (NS 35 rails, EN 60715)
Weight	600 g
