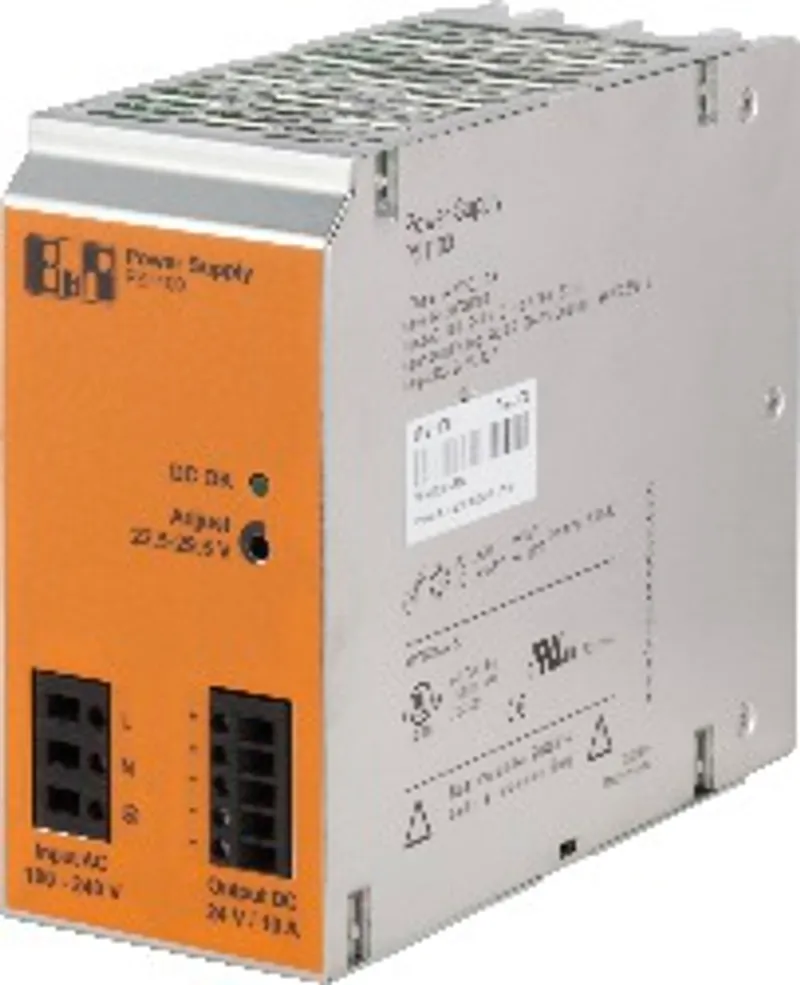

B&R 0PS1100.1

100 to 240 VAC wide-range input

MPN
0PS1100.1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 0PS1100.1?

100 to 240 VAC wide-range input

High dielectric strength

Can be connected in parallel for increased capacity and redundancy

Reliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)

International certification package

Wide temperature range from -25 to 70°C

Closed metal housing

24 VDC power supply, 1-phase, 10 A, input 100 to 240 VAC, wide range, top-hat rail installation

Specifications

General information

Insulation voltages – Input - Output4 kV AC (type test); 2 kV AC (routine test)
Insulation voltages – Input - Ground2 kV AC (type test); 2 kV AC (routine test)
Insulation voltages – Output - Ground500 VDC (type test)
Connection cross section – Wire end sleevesFlexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950
Connection cross section – Flexible0.2 to 2.5 mm² / 24 to 14 AWG
Connection cross section – Inflexible0.2 to 2.5 mm² / 24 to 14 AWG
Certifications – CEYes
Certifications – UKCAYes
Certifications – ULcULus E123528; Industrial control equipment
Status displayGreen LED (DC OK), threshold value U out = 21.5 V
Connection typeScrew terminal
Wire stripping length9 mm (input/output)

Input

Nominal input voltage100 to 240 VAC
Input voltageAC 85 to 264 V (wide range), 45 to 65 Hz; 300 VAC (temporary)
Input currentApprox. 3 A (100 VAC) ; Approx. 1.5 A (240 VAC)
Inrush current limiting<15 A
I 2t0.7 A 2s
Power failure bypass>24 ms (120 VAC); >24 ms (230 VAC)
Switch-on time<1 s (typical)
Power factor (cos φ)0.99
Leakage current to PE<3.5 mA
Protective circuitTransient surge protection with varistor
Internal fuse6.3 A slow-blow
Required line fuse for line protection10 A ; 16 A (characteristic B)
Input voltage <90 VACDerating from output current: 2.5% per °C

Output

Output current – -25 to 55°C10.0 A
Output current – >55°CDerating: 2.5% per °C
Nominal voltage24 VDC ±1%
Output power240 W
Setting range for output voltage22.5 to 29.5 VDC
Current limitingApprox. 14 A (for short circuit)
Control deviation<1% (static load change 10 to 90%); <2% (dynamic load change 10 to 90%); <0.1% (input voltage change ±10%)
Rise time<2 ms (U OUT (10 to 90%))
Residual ripple<10 mV SS
Switching peaks<50 mV SS
Can be connected in parallelYes, to establish redundancy and increase capacity
Can be connected in seriesYes
Max. capacitive loadUnlimited
Protection against internal overvoltagesYes, limited to <35 VDC
Protective functionsOutput protected against continuous short circuit, open circuit and overload
Power back immunityMax. 35 VDC
Output noise suppressionDevice complies with EN 55011 (class B)

Efficiency, reliability

Power dissipation – Rated loadMax. 30 W
Power dissipation – No-load operationMax. 6.7 W
Efficiency>89%
MTBF>500,000 h, per IEC 61709 (SN 29500)

Operating conditions

Mounting orientation – HorizontalYes
Mounting orientation – VerticalNo
Installation elevation above sea level – Maximum5000 m
Ventilation/CoolingNormal convection, no fan required
Degree of protection per EN 60529IP20
Protection classI, with PE connection

Ambient conditions

Temperature – Operation-25 to 70°C (>55°C derating)
Temperature – Storage-40 to 85°C
Temperature – Transport-40 to 85°C
Relative humidity – OperationMax. 95%, non-condensing
Vibration – Operation<15 Hz, amplitude ±2.5 mm, per IEC 60068-2-6; 15 to 150 Hz, 2.3 g, 90 min
Shock – Operation30 g in each direction, per IEC 60068-2-27
Pollution degree2, per EN 50178
Climate category3K3, per EN 60721

Mechanical properties

Housing – MaterialSteel sheet, galvanized; Side panels: Aluminum
Dimensions – Width60 mm
Dimensions – Height130 mm
Dimensions – Depth152.5 mm
InstallationEasy top-hat rail installation (NS 35 rails, EN 60715)
Weight1400 g
