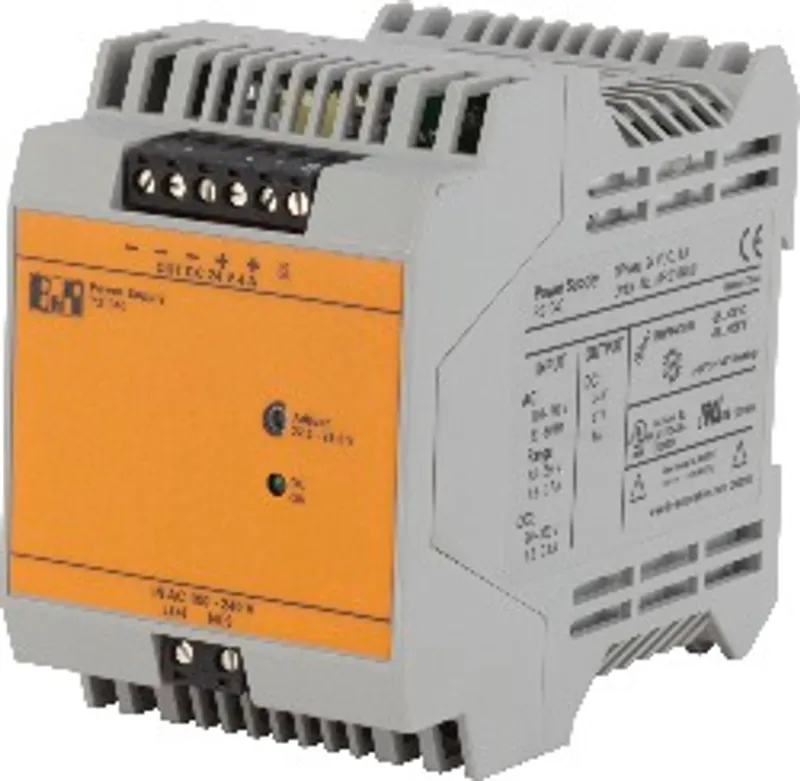

B&R 0PS1040.0
100 to 240 VAC wide-range input
- MPN
- 0PS1040.0
- Category
- Single-phase power supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0PS1040.0?
100 to 240 VAC wide-range input
Power boost for reliable startup of demanding loads (up to 5 A)
Can be connected in parallel for increased capacity and redundancy
Active DC OK switch output
Reliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)
International certification package
Wide temperature range from -25 to 70°C
Extra slender design
24 VDC power supply, 1-phase, 4 A, input 100 to 240 VAC, wide range, top-hat rail installation
Specifications
General information
| Insulation voltages – Input - Output | 3 kV AC (type test); 3 kV AC (routine test) |
| Connection cross section – Wire end sleeves | Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950 |
| Connection cross section – Flexible | 0.2 to 2.5 mm² / 24 to 12 AWG |
| Connection cross section – Inflexible | 0.2 to 2.5 mm² / 24 to 12 AWG |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E123528; Industrial control equipment |
| Status display | Green LED (DC OK), threshold value U out = 21.5 V |
| Active DC OK switch output | 24 V, 20 mA |
| Connection type | Screw terminal |
| Wire stripping length | 7 mm (input/output) |
Input
| Nominal input voltage | 100 to 240 VAC |
| Input voltage | AC 85 to 264 V (wide range), 45 to 65 Hz ; DC 90 to 350 V |
| Input current | Approx. 1.3 A (120 VAC) ; Approx. 0.8 A (230 VAC) |
| Inrush current limiting | <20 A (typical) |
| I 2t | <2.1 A 2s |
| Power failure bypass | >20 ms (120 VAC); >100 ms (230 VAC) |
| Switch-on time | <0.4 s |
| Protective circuit | Transient surge protection with varistor |
| Internal fuse | 3.15 A slow-blow |
| Required line fuse for line protection | 6 A ; 10 A ; 16 A (characteristic B) |
Output
| Output current – -25 to 40°C | 5.0 A |
| Output current – 40 to 60°C | 4.0 A |
| Output current – >60°C | Derating: 2.5% per °C |
| Nominal voltage | 24 VDC ±1% |
| Output power | 96 W |
| Setting range for output voltage | 22.5 to 28.5 VDC |
| Current limiting | Approx. 9 A (for short circuit) |
| Control deviation | <1% (static load change 10 to 90%); <3% (dynamic load change 10 to 90%); <0.1% (input voltage change ±10%) |
| Rise time | 0.3 ms (U OUT (10 to 90%)) |
| Residual ripple | <100 mV pp (at nominal values) |
| Switching peaks | <100 mV SS (at nominal values) |
| Can be connected in parallel | Yes, to establish redundancy and increase capacity |
| Can be connected in series | Yes |
| Max. capacitive load | Unlimited |
| Protection against internal overvoltages | Yes, limited to approximately 35 VDC |
| Protective functions | Output protected against continuous short circuit, open circuit and overload |
| Power back immunity | Max. 35 VDC |
| Output noise suppression | Device complies with EN 55011 (class B) |
Efficiency, reliability
| Power dissipation – Rated load | Max. 12 W |
| Power dissipation – No-load operation | Max. 2.5 W |
| Efficiency | >88% (at 230 VAC and nominal values) |
| MTBF | >500,000 h, per IEC 61709 (SN 29500) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Installation elevation above sea level – Maximum | 3000 m |
| Ventilation/Cooling | Normal convection, no fan required |
| Degree of protection per EN 60529 | IP20 |
| Protection class | ΙΙ (in closed control cabinet) |
Ambient conditions
| Temperature – Operation | -25 to 70°C (>60°C derating) |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Max. 95%, non-condensing |
| Vibration – Operation | <15 Hz, amplitude ±2.5 mm, per IEC 68-2-6 ; 15 to 150 Hz, 2.3 g |
| Shock – Operation | 30 g in all directions, per IEC 68-2-27 |
| Pollution degree | 2, per EN 50178 |
| Climate category | 3K3, per EN 60721 |
Mechanical properties
| Housing – Material | Polyamide PA, color green |
| Dimensions – Width | 67.5 mm |
| Dimensions – Height | 99 mm |
| Dimensions – Depth | 114.5 mm |
| Installation | Easy top-hat rail installation (NS 35 rails, EN 60715) |
| Weight | 400 g |
