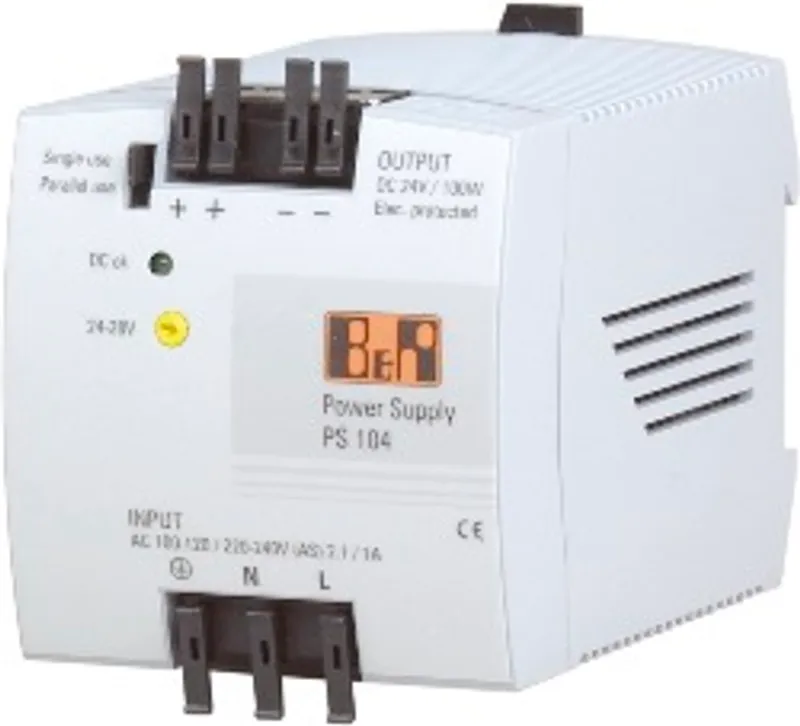

B&R 0PS104.0

Q: When can 0PS104.0 be shipped?

0PS104.0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 0PS104.0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 0PS104.0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0PS104.0, subject to availability and destination.

24 VDC power supply unit, 1-phase, 4.2 A, input 115/230 VAC

MPN: 0PS104.0

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0PS104.0?

24 VDC power supply unit, 1-phase, 4.2 A, input 115/230 VAC, auto-select, top-hat rail installation

Specifications

General information

Status display	Green LED (DC OK)
Terminals	Cage clamp terminal blocks

Terminal block

Connection cross section – Flexible	0.30 to 4.00 mm² / 28 to 12 AWG
Connection cross section – Inflexible	0.30 to 2.50 mm² / 28 to 12 AWG

Input

Input voltage	AC 85-132 / 184-264 V (auto-select), 47-63 Hz ; DC 220-375 V
Input current	<2.1 A (at AC 100 V, 100 W P<SUB>out</SUB>) <BR/><1 A (at AC 220 V, 100 W P<SUB>out</SUB>)
External fuse protection	Not required, device equipped with internal fuse
Transient immunity	Transient-proof per VDE 0160 / W2

Output (including logic)

Output noise suppression	Device complies with EN 61000-6-3 (class B)
Output power	100 W
Nominal voltage	DC 24-28 V (default setting: 24.5 V ±0.5%)
Power back immunity	35 V
Protective functions	The output is short-circuit, overload- and no-load proof.
Permissible output load	Continuous up to 4.2 A (convection cooling)
Overvoltage protection	<36 V

Efficiency, reliability

Efficiency	Typ. 90% (at AC 230 V, 24.5 V / 4.2 A)
MTBF	Approx. 500,000 h
Losses	Typ. 11.4 W (at AC 230 V, 24.5 V / 4.2 A)

Ambient conditions

Temperature – Operation	-10 to 70°C
Temperature – Storage	-25 to 85°C
Relative humidity – Operation	Max. 95%

Mechanical properties

Dimensions – Width	73 mm
Dimensions – Height	75 mm
Dimensions – Depth	103 mm (plus top-hat rail)
Installation	Easy snap-on mounting onto the top-hat rail
Weight	360 g
Ventilation/Cooling	Normal convection, no fan required

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 0PS104.0PDF · 237 KB · 1.1 (02/14/2006) - EN
