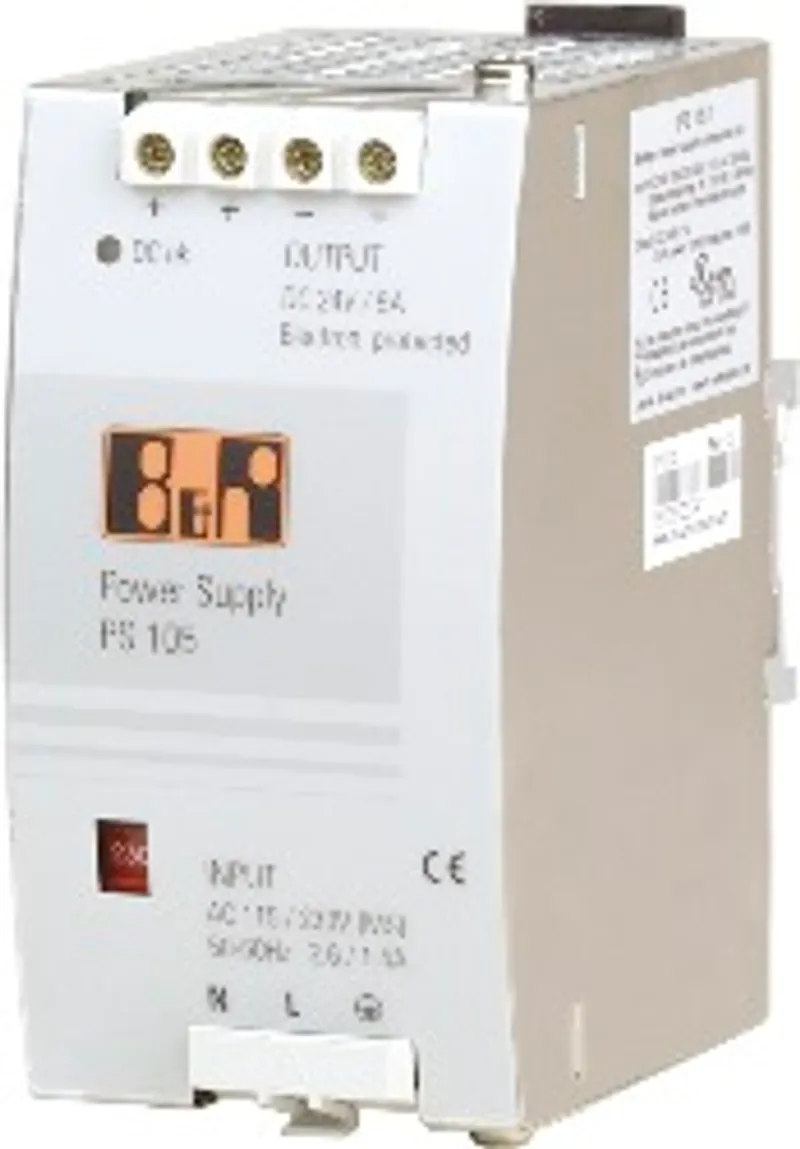

B&R 0PS105.1

Q: When can 0PS105.1 be shipped?

0PS105.1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 0PS105.1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 0PS105.1 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0PS105.1, subject to availability and destination.

24 VDC power supply unit, 1-phase, 5 A, input 115/230 VAC

MPN: 0PS105.1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0PS105.1?

24 VDC power supply unit, 1-phase, 5 A, input 115/230 VAC, manual select, top-hat rail installation

Specifications

General information

Status display	Green LED on front (goes out at V<SUB>out</SUB><18 V)
Terminals	Stable screw clamp terminal blocks

Terminal block

Connection cross section – Flexible	0.5 to 4 mm² / 20 to 10 AWG
Connection cross section – Inflexible	0.5 to 6 mm² / 20 to 10 AWG

Input

Input voltage	AC 85-132 / 176-264 V (switchable), 47-63 Hz ; DC 210-375 V
Input current	<2.6 A (switch position 115 V) <BR/><1.4 A (switch position 230 V)
External fuse protection	Not required, device equipped with internal fuse ; Recommendation: Fuse the power supply cable (circuit breaker).
Transient immunity	Transient-proof per VDE 0160 / W2

Output (including logic)

Output noise suppression	Device complies with EN 61000-6-3 (class B)
Output power	120 W
Nominal voltage	24 VDC +5% –1%
Power back immunity	26 V
Protection functions	Output is short-circuit, overload- and no-load proof.
Permissible output load	5 A
Overvoltage protection	Typ. 29 V

Efficiency, reliability

Efficiency	Typ. 90% (230 VAC, 24 V / 5 A)
MTBF	520,000 h
Losses	Typ. 13.3 W (230 VAC, 24 V / 5 A)

Ambient conditions

Temperature – Operation	-10 to 70°C
Temperature – Storage	-25 to 85°C
Relative humidity – Operation	Max. 95%

Mechanical properties

Dimensions – Width	64 mm
Dimensions – Height	124 mm
Dimensions – Depth	102 mm (plus top-hat rail)
Installation	Easy snap-on mounting onto the top-hat rail
Weight	620 g
Ventilation/Cooling	Normal convection, no fan required
