Bosch Rexroth R349946300

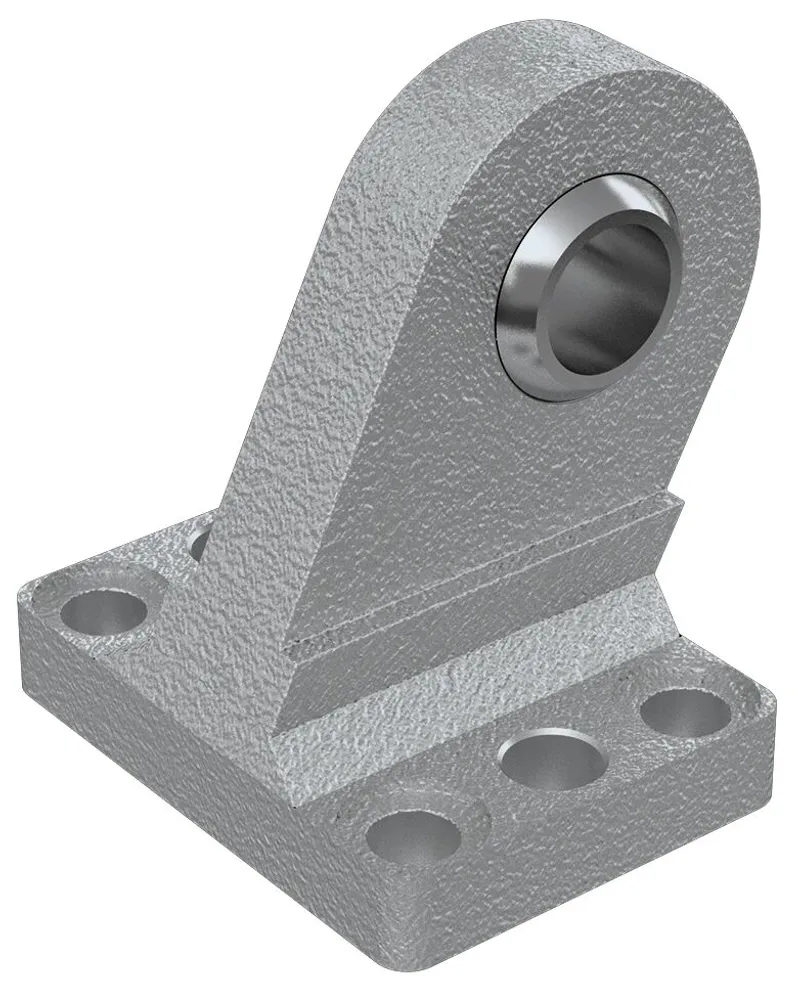

SPHERICAL PLAIN BEARING C EMC32 &

MPN: R349946300
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349946300?

Group 6, option 03

Material: Galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	32
Weight [kg]	0.19
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

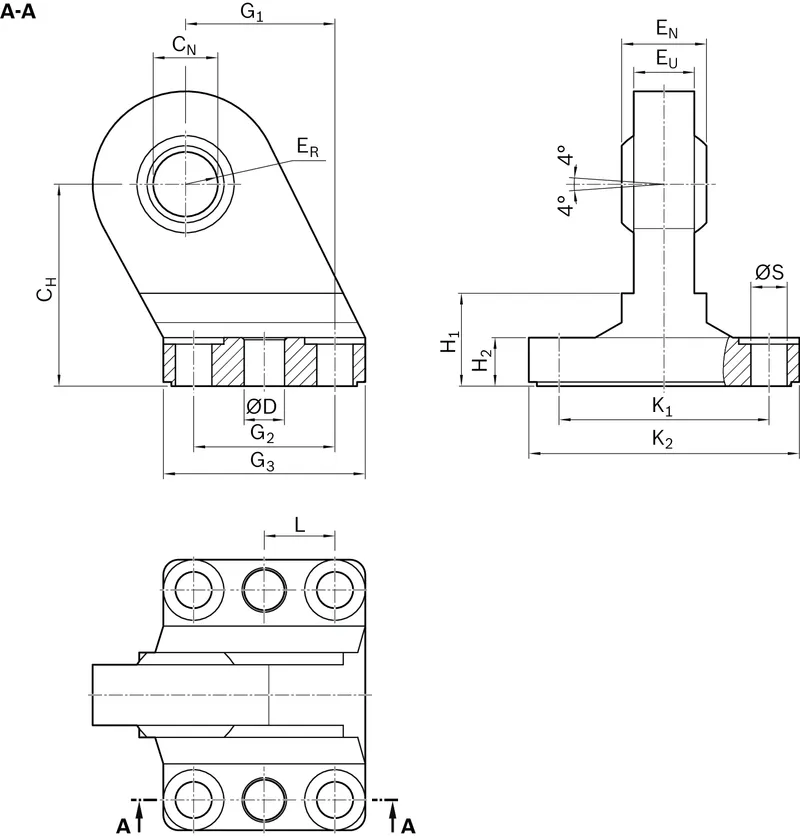

Dimension CH JS15 [mm]	32
Dimension CN H7 [mm]	10
Dimension EN [mm]	14
Dimension EN tolerance [mm]	-1
Dimension ER max. [mm]	16
Dimension EU [mm]	10.5
Dimension G1 JS14 [mm]	21
Dimension G2 JS14 [mm]	18
Dimension G3 max. [mm]	31
Dimension H1 (profiled rail systems) [mm]	16
Dimension H2 (profiled rail systems) [mm]	9
Dimension H2 tolerance [mm]	±1
Dimension K1 JS14 [mm]	38
Dimension K2 max. [mm]	51
Dimension S H13 [mm]	6.6
