Bosch Rexroth R349946200

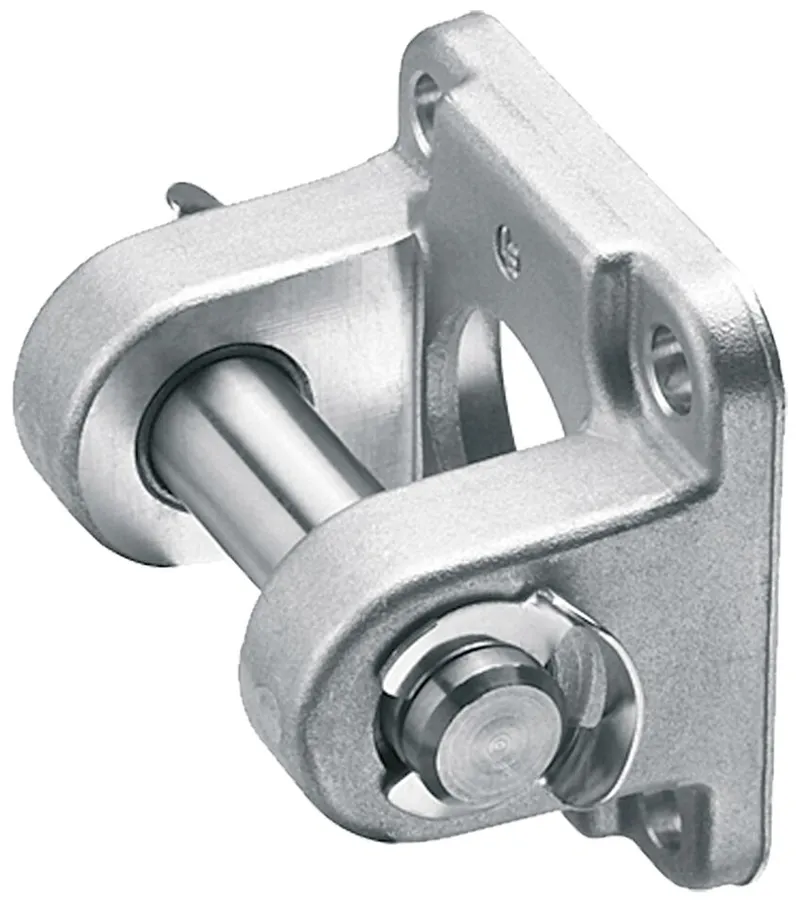

CAP DETACHABLE CLEVIS D EMC100 &
- MPN
- R349946200
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R349946200?
Group 5, option 07
Material: Aluminum/galvanized cast iron with spheroidal graphite
Specifications
Specifications
| Fastening elements for electromechanical cylinders | Clevis mount |
| Nominal size [mm] | 100 |
| Weight [kg] | 0.87 |
| Max. dynamic load [bar] | 16400 |
| Material of electromechanical cylinders | Aluminum |

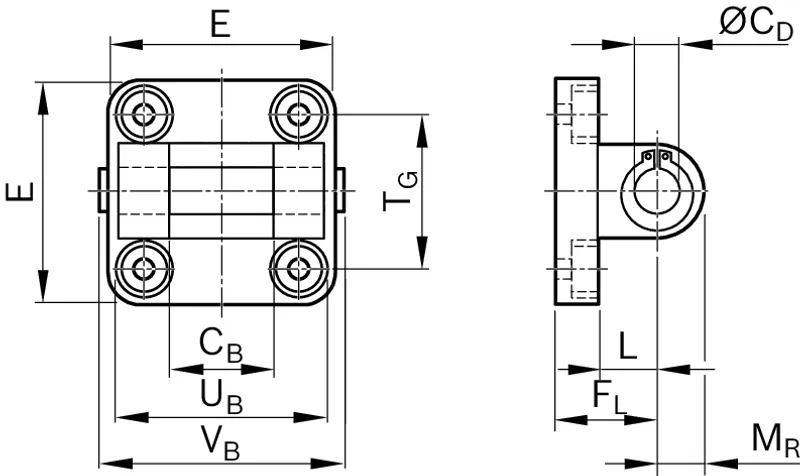

| Dimension CB H14 [mm] | 60 |
| Dimension CD H9 [mm] | 20 |
| Dimension E max. [mm] | 115 |
| Dimension FL [mm] | 41 |
| Dimension FL tolerance [mm] | ±0.2 |
| Dimension L min. [mm] | 25 |
| Dimension MR [mm] | 18 |
| Dimension Tg [mm] | 89 |
| Dimension TG [mm] | 89 |
| Dimension TG tolerance [mm] | ±0.2 |
| Dimension UB h14 [mm] | 110 |
| Dimension VB [mm] | 117 |
