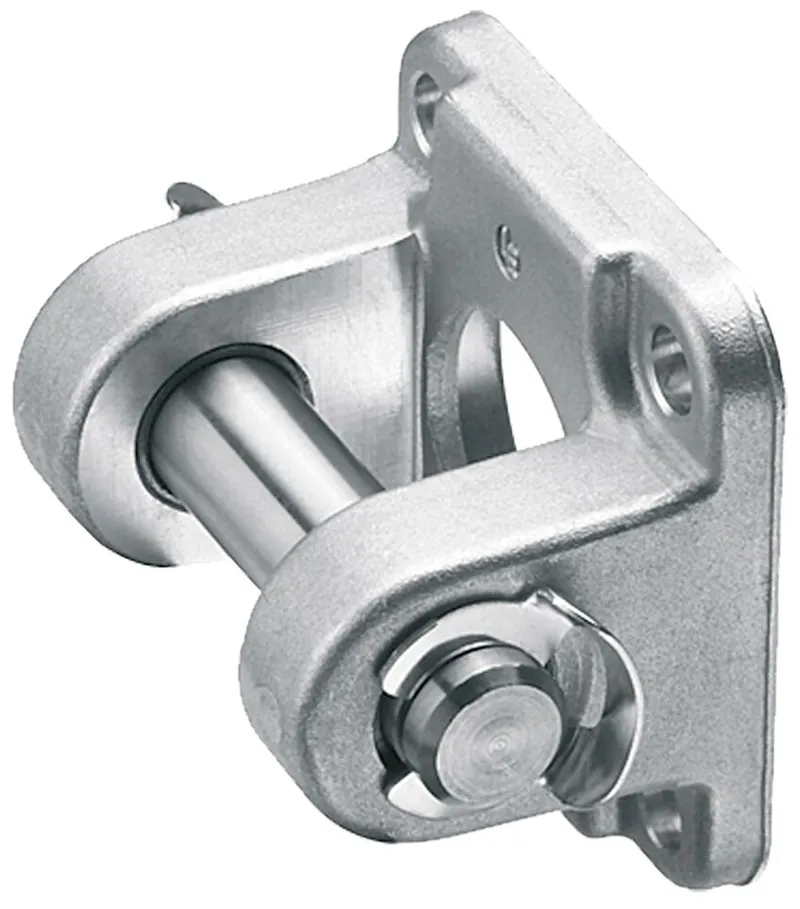

Bosch Rexroth R349945900
CAP DETACHABLE CLEVIS D EMC50 &
- MPN
- R349945900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R349945900?
Group 5, option 07
Material: Aluminum/galvanized cast iron with spheroidal graphite

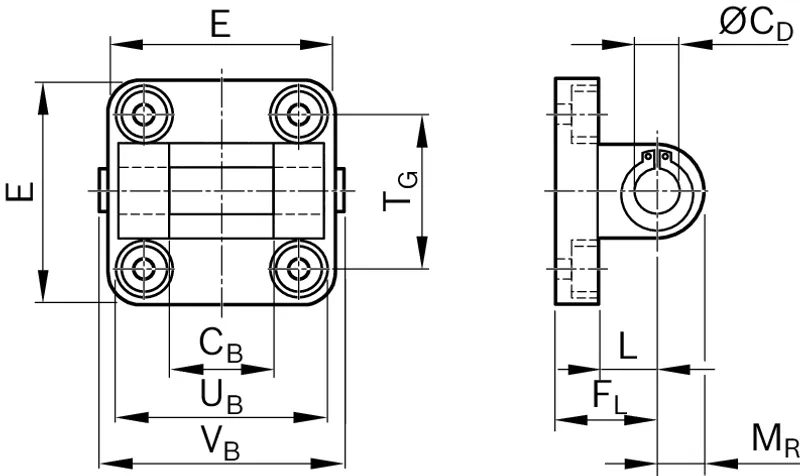

Specifications
Specifications
| Fastening elements for electromechanical cylinders | Clevis mount |
| Nominal size [mm] | 50 |
| Weight [kg] | 0.23 |
| Footnote max. dynamic load | Fmax EMC |
| Material of electromechanical cylinders | Aluminum |
| Dimension CB H14 [mm] | 32 |
| Dimension CD H9 [mm] | 12 |
| Dimension E max. [mm] | 63 |
| Dimension FL [mm] | 27 |
| Dimension FL tolerance [mm] | ±0.2 |
| Dimension L min. [mm] | 15 |
| Dimension MR [mm] | 13 |
| Dimension Tg [mm] | 46.5 |
| Dimension TG [mm] | 46.5 |
| Dimension TG tolerance [mm] | ±0.2 |
| Dimension UB h14 [mm] | 60 |
| Dimension VB [mm] | 65 |
R349945900: frequently asked questions
When can R349945900 be shipped?
R349945900 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R349945900 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R349945900 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349945900, subject to availability and destination.
