Bosch Rexroth R349946100

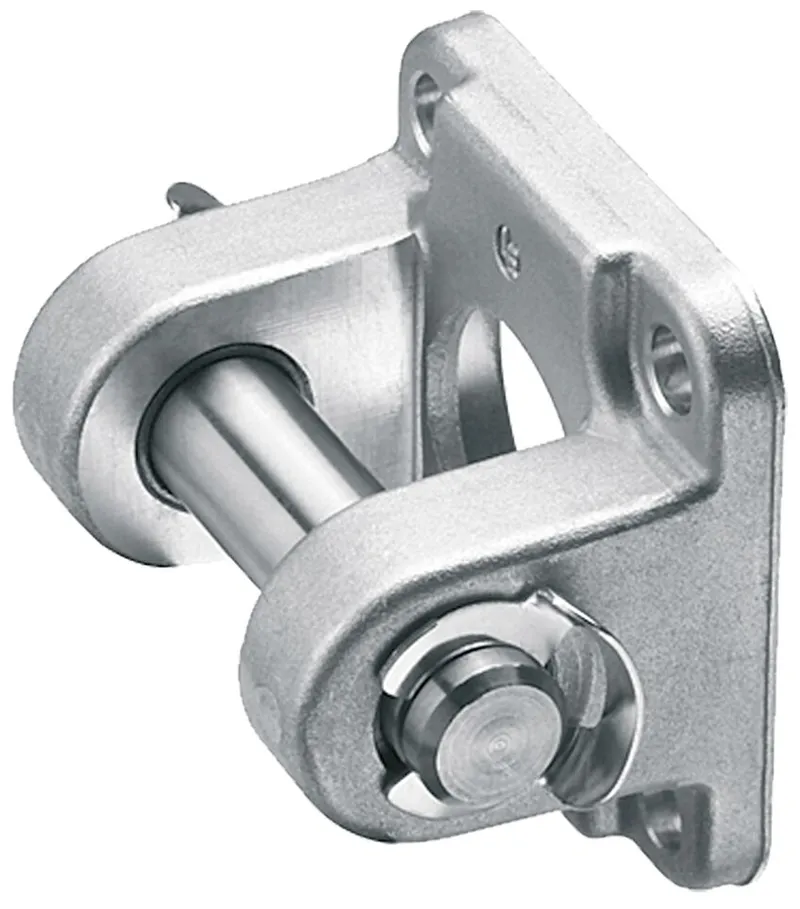

CAP DETACHABLE CLEVIS D EMC80 &

MPN: R349946100
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349946100?

Group 5, option 07

Material: Aluminum/galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	80
Weight [kg]	0.58
Max. dynamic load [bar]	13100
Material of electromechanical cylinders	Aluminum

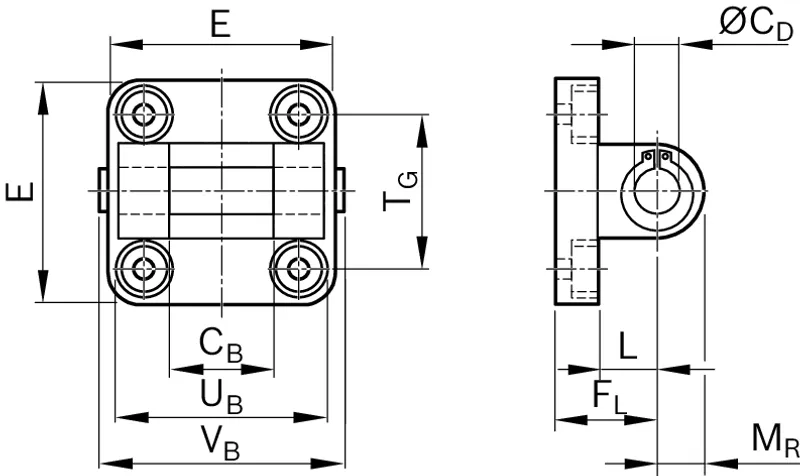

Dimension CB H14 [mm]	50
Dimension CD H9 [mm]	16
Dimension E max. [mm]	98
Dimension FL [mm]	36
Dimension FL tolerance [mm]	±0.2
Dimension L min. [mm]	20
Dimension MR [mm]	17
Dimension Tg [mm]	72
Dimension TG [mm]	72
Dimension TG tolerance [mm]	±0.2
Dimension UB h14 [mm]	90
Dimension VB [mm]	96

R349946100: frequently asked questions

When can R349946100 be shipped?

R349946100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349946100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349946100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349946100, subject to availability and destination.
