Home / Bosch Rexroth / Fastening elements for electromechanical cylinders / Bosch Rexroth R349946400

Bosch Rexroth R349946400

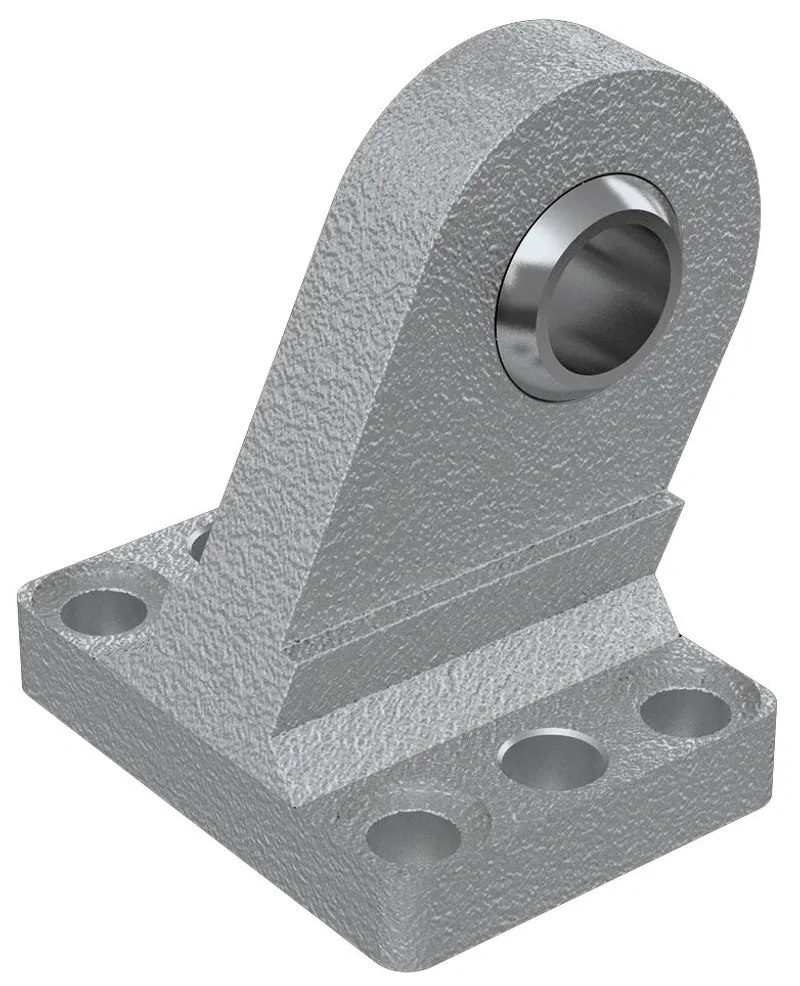

SPHERICAL PLAIN BEARING C EMC40 &

MPN: R349946400
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349946400?

Group 6, option 03

Material: Galvanized cast iron with spheroidal graphite

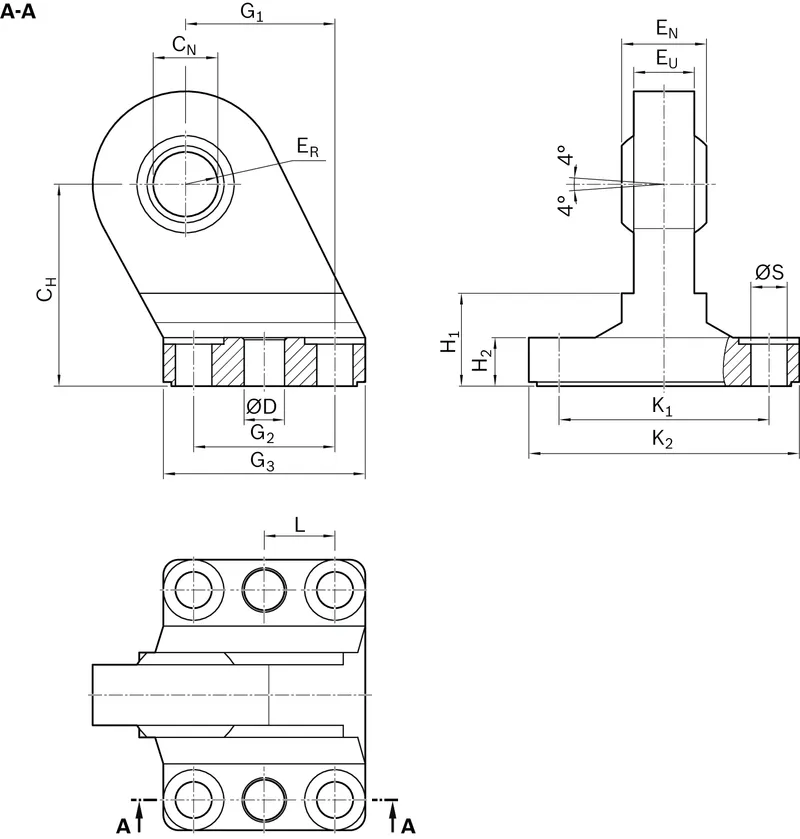

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	40
Weight [kg]	0.26
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite
Dimension CH JS15 [mm]	36
Dimension CN H7 [mm]	12
Dimension EN [mm]	16
Dimension EN tolerance [mm]	-1
Dimension ER max. [mm]	18
Dimension EU [mm]	12
Dimension G1 JS14 [mm]	24
Dimension G2 JS14 [mm]	22
Dimension G3 max. [mm]	35
Dimension H1 (profiled rail systems) [mm]	16
Dimension H2 (profiled rail systems) [mm]	9
Dimension H2 tolerance [mm]	±1
Dimension K1 JS14 [mm]	41
Dimension K2 max. [mm]	54
Dimension S H13 [mm]	6.6

R349946400: frequently asked questions

When can R349946400 be shipped?

R349946400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349946400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349946400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349946400, subject to availability and destination.
