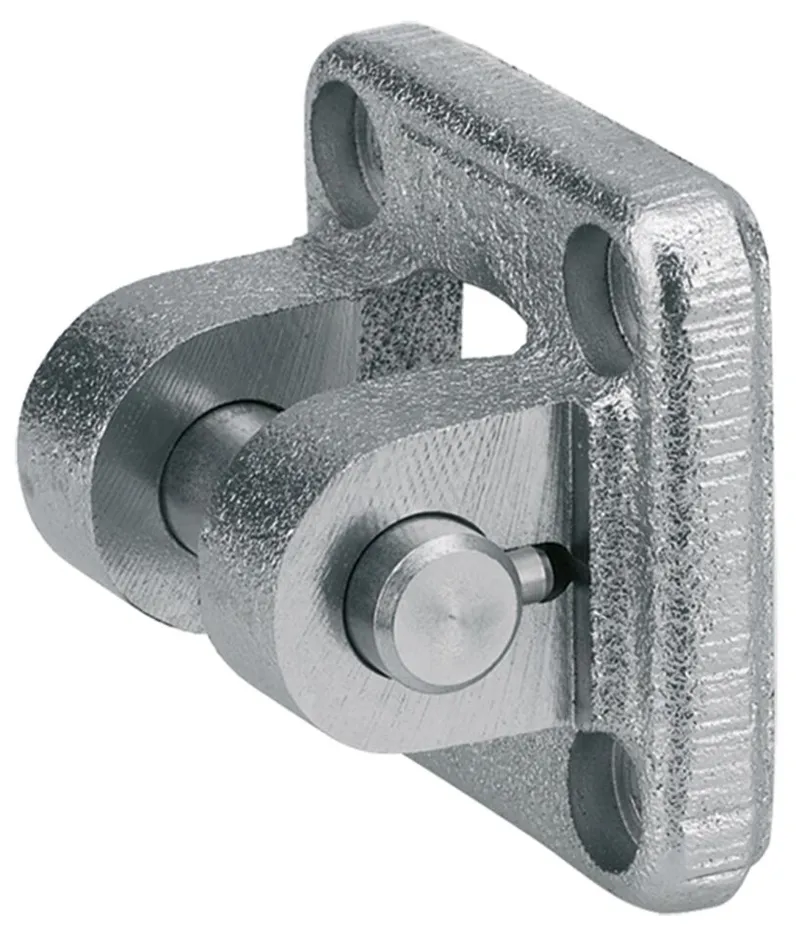

CAP DETACHABLE CLEVIS EMC100 &

Name: CAP DETACHABLE CLEVIS EMC100 &
Brand: Bosch Rexroth
SKU: R349945600

MPN: R349945600 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349945600 be shipped?

R349945600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349945600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349945600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349945600, subject to availability and destination.

Group 1, option 01; group 5, option 08 Material: Aluminum/galvanized spheroidal graphite iron

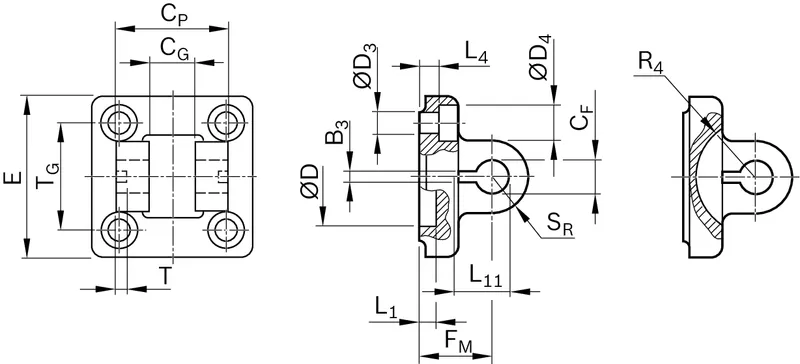

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	100
Outer diameter D [mm]	55.0
Weight [kg]	0.93
Max. dynamic load [bar]	22900
Surface finishing	forged
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Aluminum
Dimension B3 [mm]	4.3
Dimension B3 tolerance [mm]	±0.2
Dimension CF F7 [mm]	20
Dimension CG D10 [mm]	25
Dimension CP d12 [mm]	75
Dimension D [mm]	55
Dimension D3 [mm]	11
Dimension D4 [mm]	18
Dimension E [mm]	117
Dimension FM [mm]	41
Dimension FM tolerance [mm]	±0.2
Dimension L1 [mm]	4.5
Dimension L1 tolerance [mm]	±0.5
Dimension L11 [mm]	27
Dimension L11 tolerance [mm]	-0.5
Dimension L4 [mm]	10
Dimension L4 tolerance [mm]	±0.5
Dimension R4 [mm]	32
Dimension SR [mm]	20
Dimension T [mm]	4
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	89
Dimension TG [mm]	89
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M10x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M10
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
