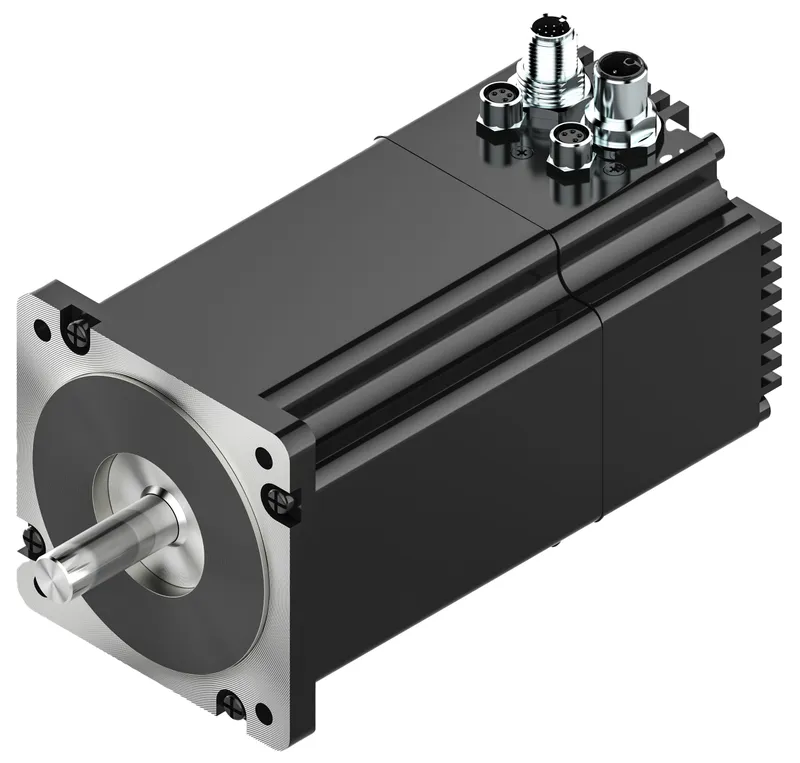

STEP MOTOR ISS0860156NE1001E-S402
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stepping motors for Small Modules SMS |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R348707101 be shipped?
R348707101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R348707101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R348707101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R348707101, subject to availability and destination.
The SMS system size 080 and 120 can optionally be driven by a suitable stepping motor ISS086. This NEMA34 stepping motor features an integrated, pre-parameterized drive controller that can be controlled via EtherCAT. The use cases range from simple standard positioning tasks to complex coordinated motion control.
Specifications
Specifications
| SMS size | 80 |
| Length L [mm] | 106.0 |
| Width [mm] | 85.0 |
| Height [mm] | 156.0 |
| Rated current [A] | 5.5 |
| Operating temperature (min. … max.) | +5 °C ... +40 °C |
| Protective functions | Overcurrent, overvoltage/undervoltage, overtemperature |
| Mode of operation | Position/speed or torque setpoint |
| Fieldbus interface | EtherCAT |
| Motor encoder | Incremental, magnetic, 4096 PPR |
| Insulation class | B |
| Control voltage min...max | 12 VDC ... 48 VDC |
| Supply voltage min...max | 12 VDC ... 48 VDC |
| Weight [kg] | 1.5 |
| Maximum operating temperature [°C] | +40 |
| Minimum operating temperature [°C] | +5 |
| Protection class | IP40 |
