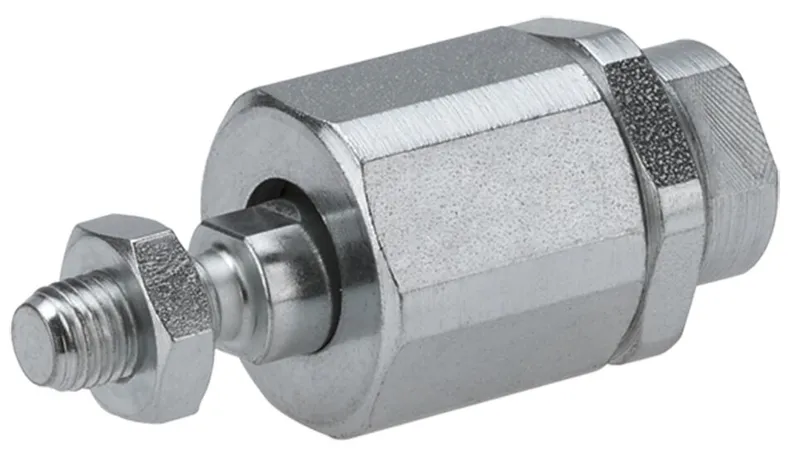

Bosch Rexroth R349937900
FLEXIBLE COUPLING FLEXO EMC32 &
- MPN
- R349937900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R349937900?
Group 2, option 04
Material: Galvanized steel
Radial clearance 0 ... 2 mm
Specifications
Specifications
| Fastening elements for electromechanical cylinders | Flexible coupling |
| Nominal size [mm] | 32 |
| Weight [kg] | 0.22 |
| Footnote max. dynamic load | Fmax EMC |
| Surface finishing | galvanized |
| Material of electromechanical cylinders | Steel |
| Dimension axial clearance | 0.05 mm ... 0.5 mm |
| Dimension of axial clearance max. [mm] | 0.5 |
| Dimension of axial clearance min. [mm] | 0.05 |

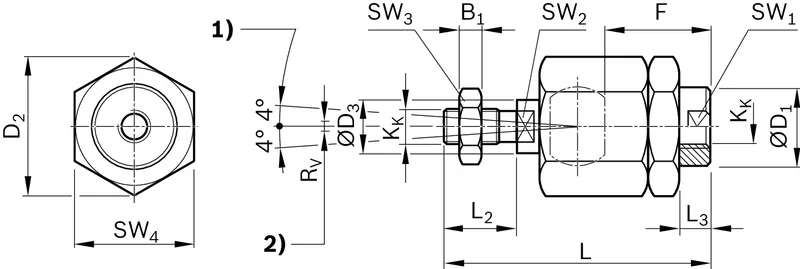

| Dimension B1 [mm] | 6 |
| Dimension D1 [mm] | 22 |
| Dimension D2 [mm] | 32 |
| Dimension D3 [mm] | 14 |
| Dimension F [mm] | 23 |
| Dimension KK | M10x1.25 mm |
| Dimension L [mm] | 74.5 |
| Dimension L tolerance [mm] | ±2 |
| Dimension L2 [mm] | 23 |
| Dimension L3 [mm] | 7.5 |
| Dimension L3 tolerance [mm] | ±1 |
| Dimension RV [mm] | 0.7 |
| Dimension SW1 [mm] | 19 |
| Dimension SW2 [mm] | 12 |
| Dimension SW3 [mm] | 17 |
| Dimension SW4 [mm] | 30 |
