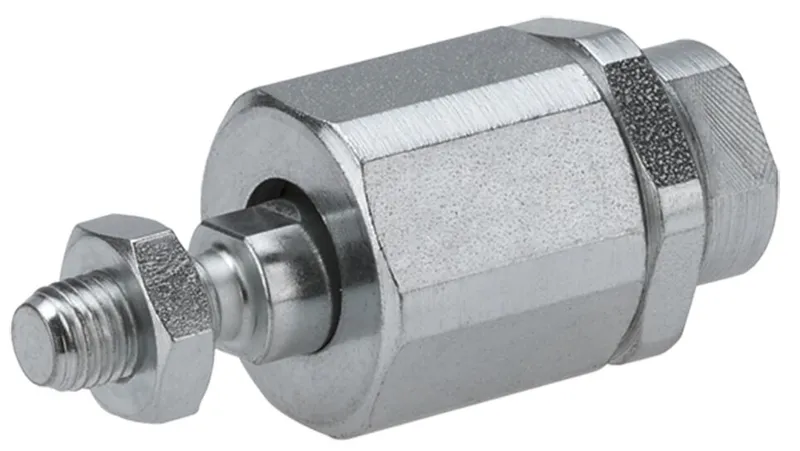

Bosch Rexroth R349938100
FLEXIBLE COUPLING FLEXO EMC50/63 &
- MPN
- R349938100
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R349938100?
Group 2, option 04
Material: Galvanized steel
Radial clearance 0 ... 2 mm
Specifications
Specifications
| Fastening elements for electromechanical cylinders | Flexible coupling |
| Nominal size [mm] | 50; 63 |
| Weight [kg] | 0.65 |
| Max. dynamic load [bar] | 10300 |
| Surface finishing | galvanized |
| Material of electromechanical cylinders | Steel |
| Dimension axial clearance | 0.05 mm ... 0.5 mm |
| Dimension of axial clearance max. [mm] | 0.5 |
| Dimension of axial clearance min. [mm] | 0.05 |

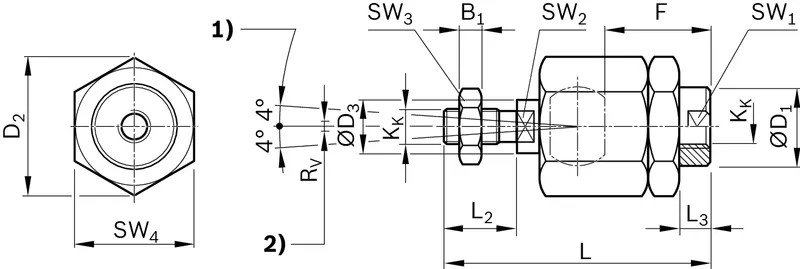

| Dimension B1 [mm] | 8 |
| Dimension D1 [mm] | 32 |
| Dimension D2 [mm] | 45 |
| Dimension D3 [mm] | 22 |
| Dimension F [mm] | 30 |
| Dimension KK | M16x1.5 mm |
| Dimension L [mm] | 103 |
| Dimension L tolerance [mm] | ±2 |
| Dimension L2 [mm] | 30 |
| Dimension L3 [mm] | 9 |
| Dimension L3 tolerance [mm] | ±1 |
| Dimension RV [mm] | 1 |
| Dimension SW1 [mm] | 30 |
| Dimension SW2 [mm] | 20 |
| Dimension SW3 [mm] | 24 |
| Dimension SW4 [mm] | 41 |
R349938100: frequently asked questions
When can R349938100 be shipped?
R349938100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R349938100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R349938100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349938100, subject to availability and destination.
