Bosch Rexroth R348706901

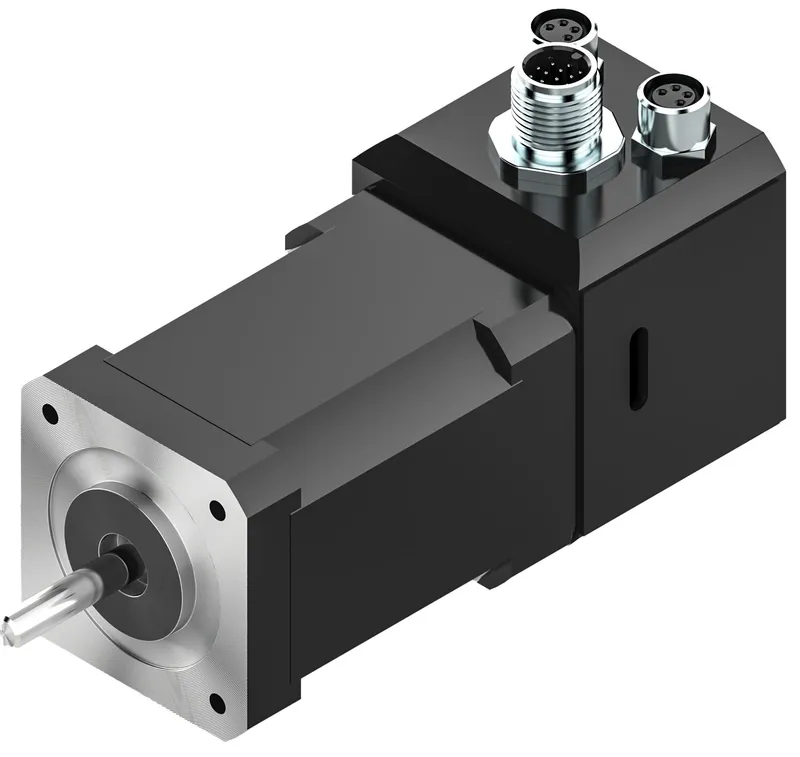

STEP MOTOR ISS0420073NE1001E-S402

MPN: R348706901
Category: Stepping motors for Small Modules SMS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R348706901?

The SMS system size 030 can optionally be driven by a suitable stepping motor ISS042. This NEMA17 stepping motor features an integrated, pre-parameterized drive controller that can be controlled via EtherCAT. The use cases range from simple standard positioning tasks to complex coordinated motion control.

Specifications

SMS size	30
Length L [mm]	61.0
Width [mm]	42.2
Height [mm]	100.0
Rated current [A]	2
Operating temperature (min. … max.)	+5 °C ... +40 °C
Protective functions	Overcurrent, overvoltage/undervoltage, overtemperature
Mode of operation	Position/speed or torque setpoint
Fieldbus interface	EtherCAT
Motor encoder	Incremental, magnetic, 4096 PPR
Insulation class	B
Control voltage min...max	12 VDC ... 30 VDC
Supply voltage min...max	12 VDC ... 30 VDC
Weight [kg]	0.6
Maximum operating temperature [°C]	+40
Minimum operating temperature [°C]	+5
Protection class	IP40
