Bosch Rexroth R161924262

CLAMPING ELEMENT MK 2505 KB &

MPN: R161924262
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161924262?

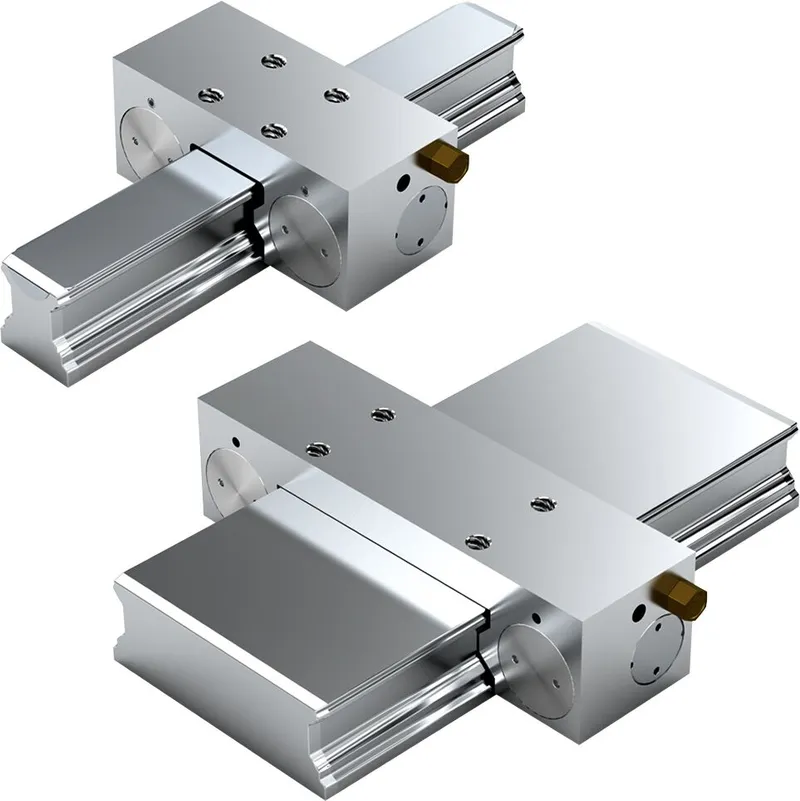

Pneumatic clamping unit MK *) for ball rail systems

Size = 25

Can be used on all SNS ball guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio

Easy mounting

Clamps with compression (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Continuously adjustable pressure from 4 - 8 bar

Decompression with spring force. A preloaded return spring allows for short decompression cycles.

5 million clamping cycles (B10d value)

Specifications

Accessories for	Runner block
Version	All ball guide rails BNS
Nominal size [mm]	25/70
Note: spring energy holding force with standard air port	Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	0.56
Air consumption (normal liter) standard air port [dm³/stroke]	0.021

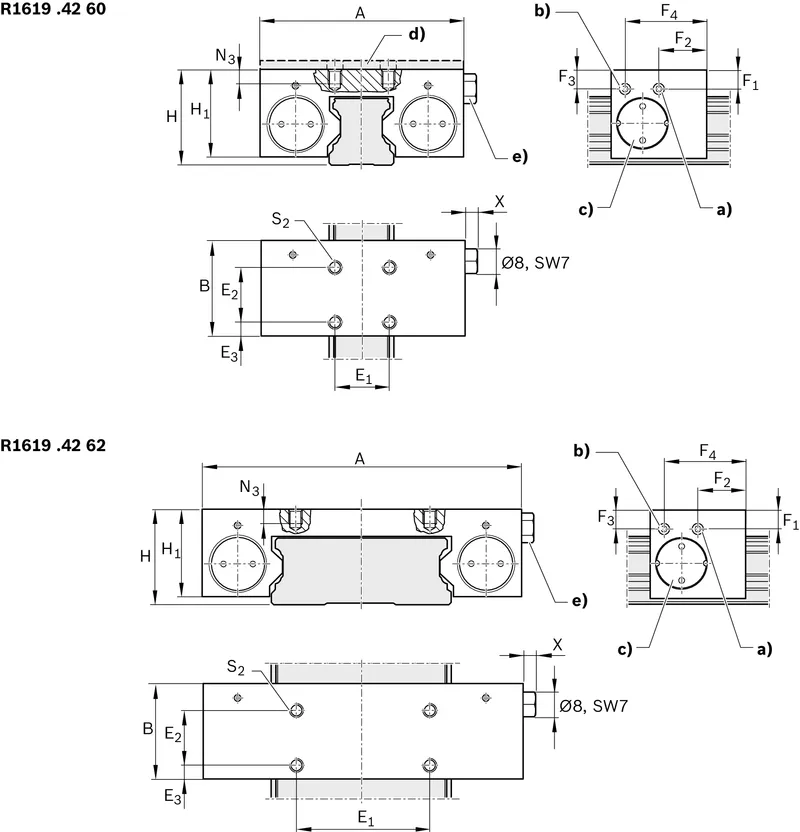

Dimension A (profiled rail systems) [mm]	120
Dimension B (profiled rail systems) [mm]	35
Dimension E1 [mm]	50
Dimension E2 (profiled rail systems) [mm]	20
Dimension E3 (profiled rail systems) [mm]	5
Dimension F1 [mm]	7
Dimension F2 [mm]	17.5
Dimension H [mm]	35.0
Dimension H1 (profiled rail systems) [mm]	32.5
Dimension N3 (profiled rail systems) [mm]	8
Dimension S2 thread diameter (profiled rail systems) [mm]	M6
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	Ball runner block .H. (...High...) Spacer plate necessary.
