Bosch Rexroth R161924283

CLAMPING ELEMENT HK 2505 KB

MPN
R161924283
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

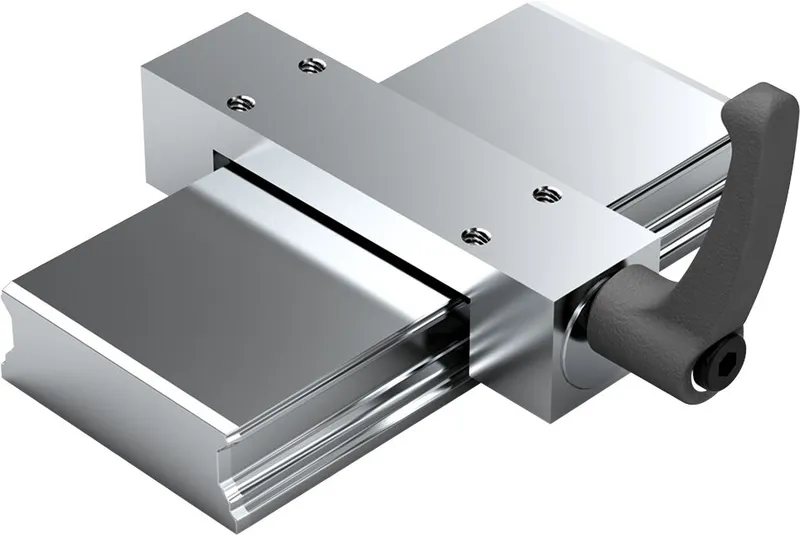

What is the Bosch Rexroth R161924283?

Manual clamping unit HK *) for ball rail systems

Size = 25

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Simple and safe design in compact format

Manually operated Clamping Unit without auxiliary power

Freely adjustable hand lever

Precise positioning

Manual clamping unit

500,000 clamping cycles (B10d value)

Symmetrical force application on ball guide rail via floating contact profiles

Holding forces up to 2000 N

Can be used on all BNS roller guide rails

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]25/70
Tightening torque [Nm]7
Holding force [N]1200
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]0.78
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

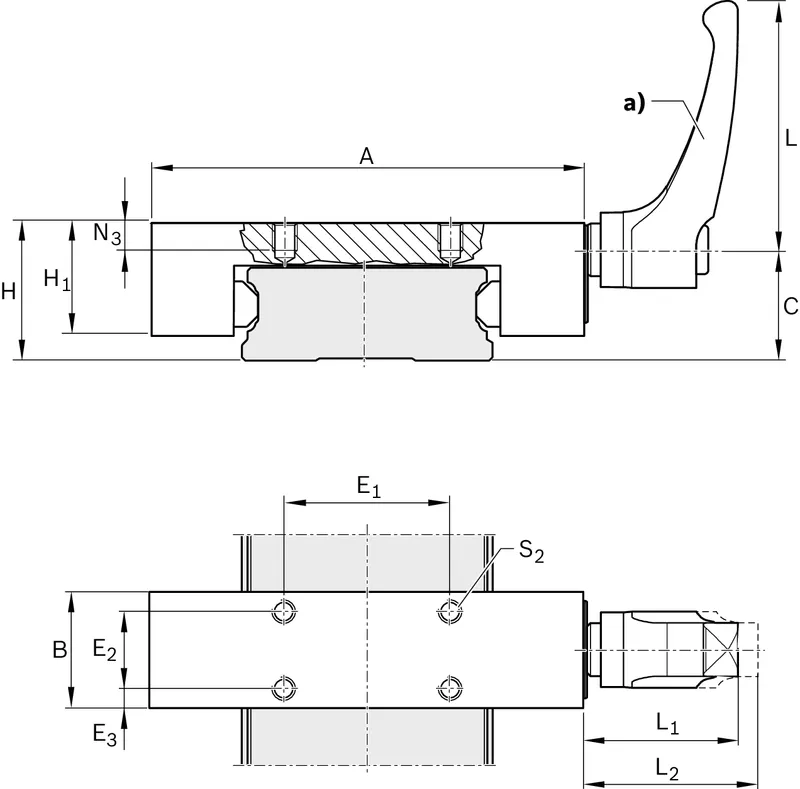

Dimension A (profiled rail systems) [mm]120
Dimension B (profiled rail systems) [mm]39
Dimension C [mm]28.2
Dimension E1 [mm]50
Dimension E2 (profiled rail systems) [mm]25
Dimension E3 (profiled rail systems) [mm]7
Dimension H [mm]35.0
Dimension H1 (profiled rail systems) [mm]30
Dimension L [mm]64
Dimension L1 [mm]38.5
Dimension L2 [mm]41.5
Dimension N3 (profiled rail systems) [mm]11
Dimension S2 thread diameter (profiled rail systems) [mm]M6
