Bosch Rexroth R161924282
CLAMPING ELEMENT HK 2505 KR
- MPN
- R161924282
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R161924282?

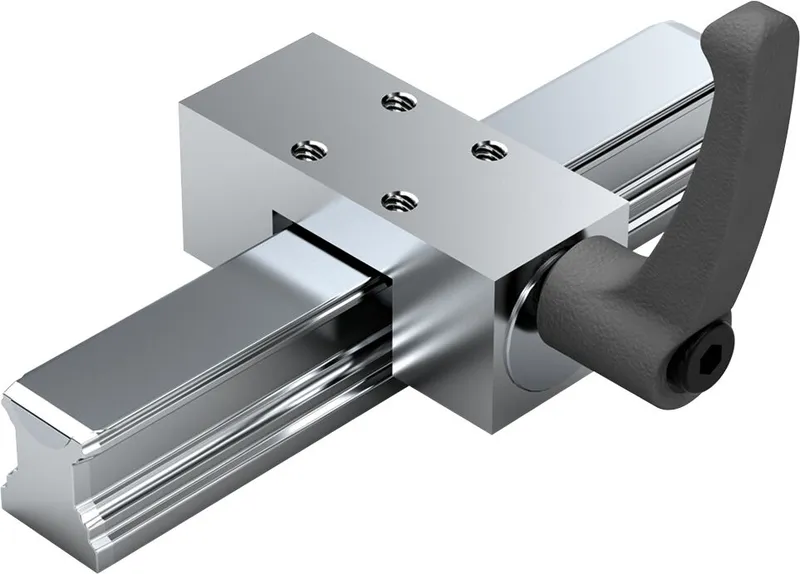

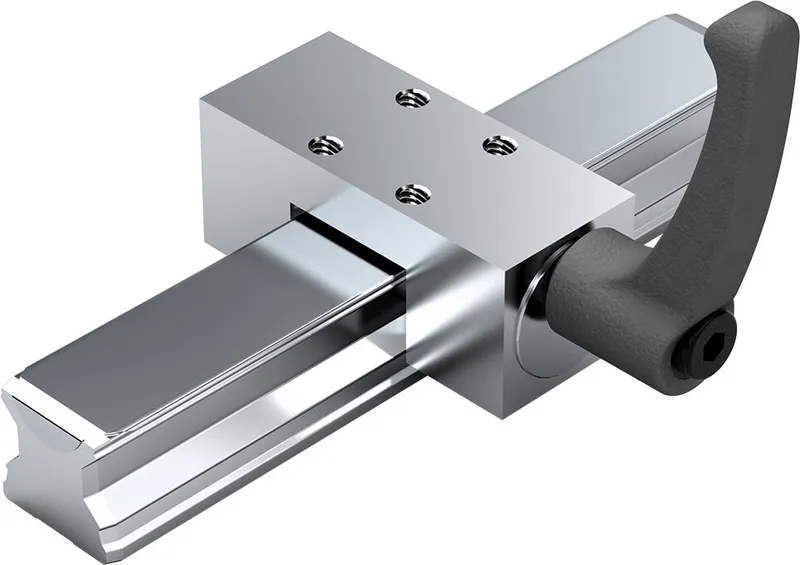

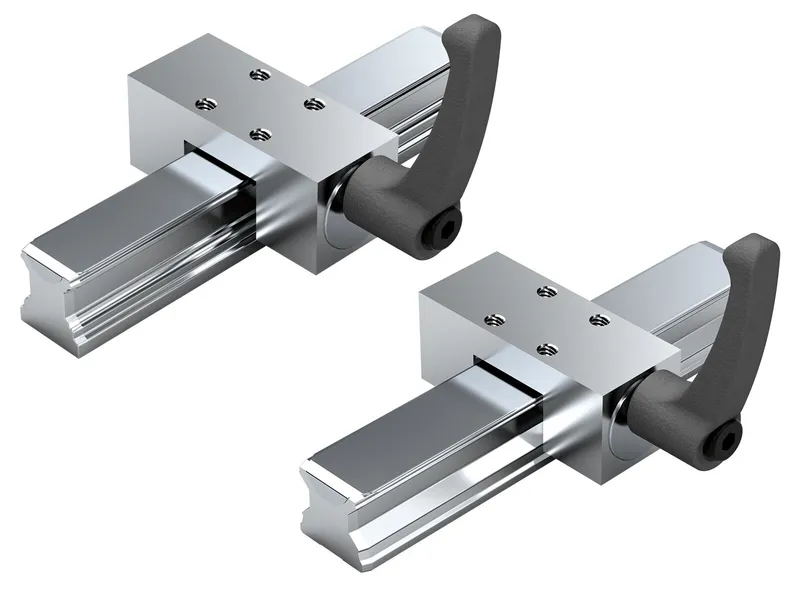

Manual clamping unit HK *) for ball rail systems/roller rail systems
Size = 25
Suitable for all ball guide rail/roller guide rail systems SNS
*) Zimmer GmbH
Simple and safe design in compact format
Manually operated Clamping Unit without auxiliary power
Freely adjustable hand lever
Precise positioning
Manual clamping unit
500,000 clamping cycles (B10d value)
Symmetrical force application on Roller Guide Rail via floating contact profiles
Holding forces up to 2000 N
Can be used on all SNS roller guide rails
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 25 |
| Tightening torque [Nm] | 7 |
| Holding force [N] | 1200 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 0.42 |
| Footnote 1 holding force | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |

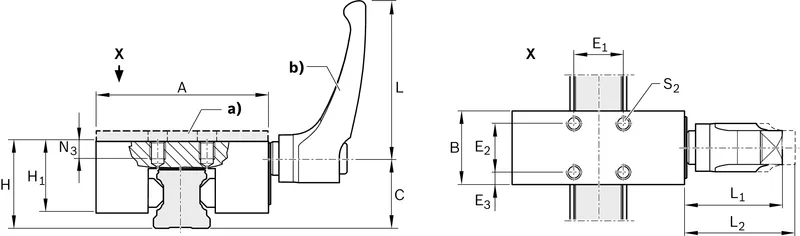

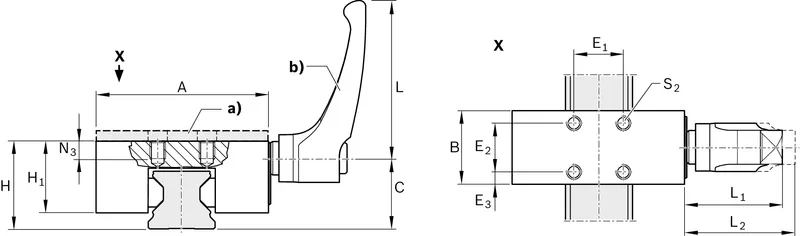

| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension B (profiled rail systems) [mm] | 30 |
| Dimension C [mm] | 29.3 |
| Dimension E1 [mm] | 20 |
| Dimension E2 (profiled rail systems) [mm] | 20 |
| Dimension E3 (profiled rail systems) [mm] | 5 |
| Dimension H [mm] | 36.0 |
| Dimension H1 (profiled rail systems) [mm] | 29 |
| Dimension L [mm] | 64 |
| Dimension L1 [mm] | 38.5 |
| Dimension L2 [mm] | 41.5 |
| Dimension N3 (profiled rail systems) [mm] | 7 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M6 |
| Footnote Dimension H1 | Ball/roller runner block .H. (...High...) Spacer plate necessary. |
