Bosch Rexroth R161924211

CLAMPING ELEMENT KWH 2505 AS1A

MPN
R161924211
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161924211?

Hydraulic clamping unit KWH *) , FLS for ball rail systems

Size = 25

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps with pressure

Can be used on all SNS ball guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]25
Holding force [N]2200
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]1.12
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2At 100 bar
Displacement footnotePer clamping
Displacement [cm³]0.6

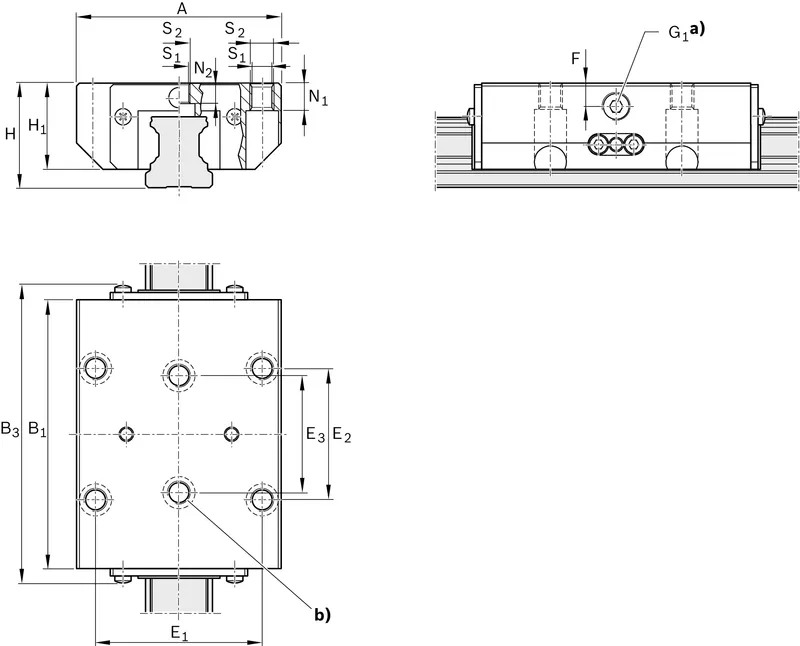

Dimension A (profiled rail systems) [mm]70
Dimension B1 [mm]92
Dimension E1 [mm]57
Dimension E2 (profiled rail systems) [mm]45
Dimension E3 (profiled rail systems) [mm]40
Dimension F [mm]8
Dimension H [mm]36.0
Dimension H1 (profiled rail systems) [mm]29.5
Dimension N1 (profiled rail systems) [mm]9
Dimension N2 (profiled rail systems) [mm]7
Dimension S1 (profiled rail systems) [mm]6.8
Dimension S2 thread diameter (profiled rail systems) [mm]M8
