Bosch Rexroth R161924274

CLAMPING ELEMENT LCP 2505 AK/08

MPN
R161924274
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161924274?

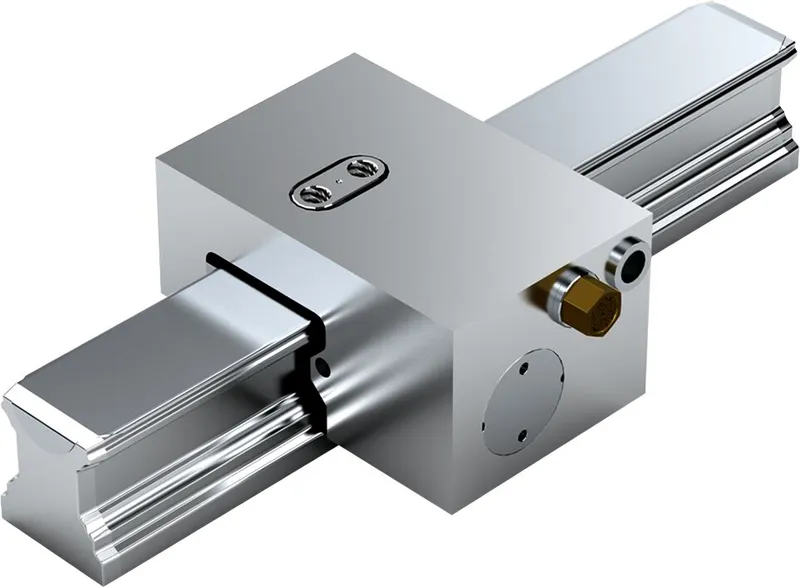

Pneumatic clamping unit LCP *) for ball rail systems

Size = 25

Can be used on all SNS ball guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio

Easy mounting

Clamps with compression (pneumatic) by means of mechanical gripping

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Continuously adjustable pressure from 5.5 - 8 bar

Short decompression cycles

Decompression with spring force. A preloaded return spring allows for short decompression cycles.

Can be used on all SNS ball guide rails

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]25
Note: spring energy holding force with standard air portHolding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)​0 °C ... +60 °C
Weight [kg]0.27
Air consumption (normal liter) standard air port [dm³/stroke]0.015

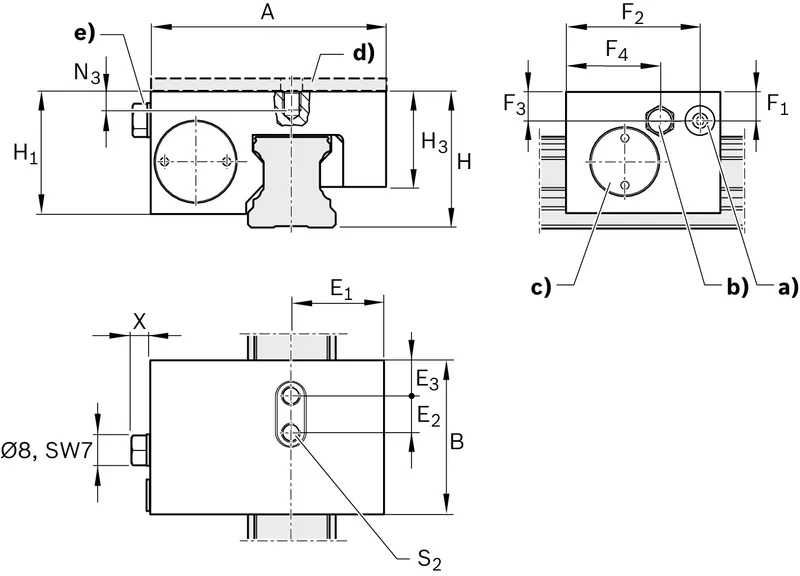

Dimension A (profiled rail systems) [mm]61.4
Dimension B (profiled rail systems) [mm]41
Dimension E1 [mm]23.9
Dimension E2 (profiled rail systems) [mm]9.5
Dimension E3 (profiled rail systems) [mm]9.75
Dimension F1 [mm]6.5
Dimension F2 [mm]36
Dimension H [mm]36.0
Dimension H1 (profiled rail systems) [mm]32.5
Dimension H3 [mm]24.55
Dimension N3 (profiled rail systems) [mm]7.7
Dimension S2 thread diameter (profiled rail systems) [mm]M5
Dimension X (profiled rail systems) [mm]6.5
Footnote Dimension H1Ball runner block .H. (...High...) Spacer plate necessary.
