Bosch Rexroth R156340160

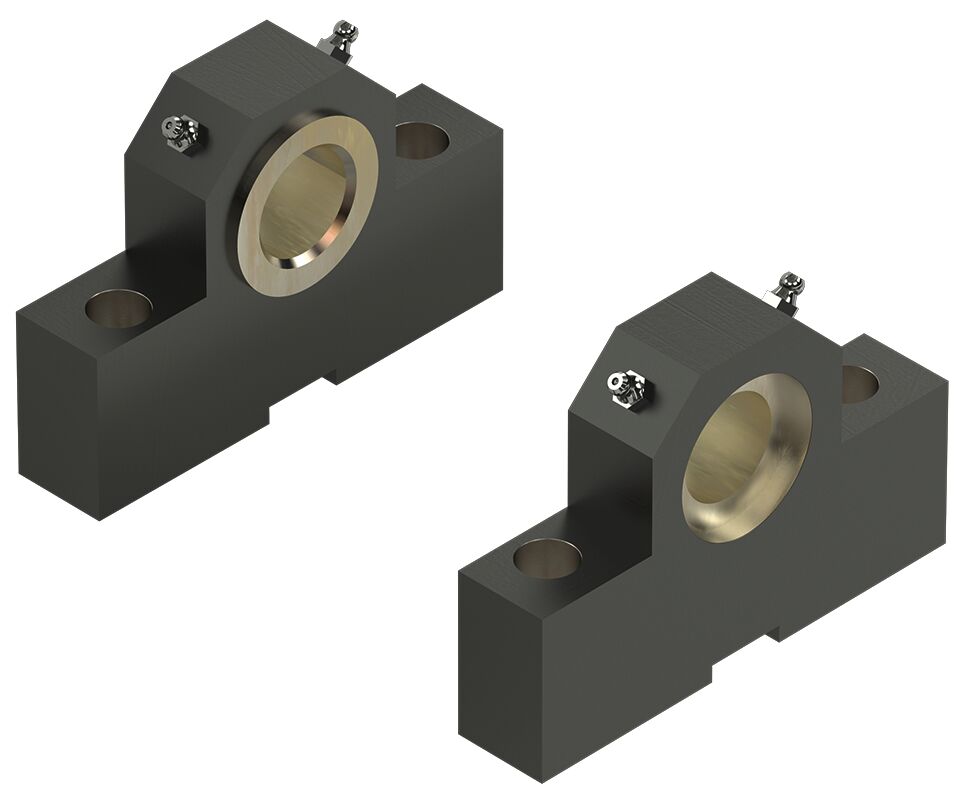

PILLOW BLOCK EMC-105-HD PSBG

MPN: R156340160
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156340160?

Group 6, option 001

Specifications

Fastening elements for electromechanical cylinders	Pillow block CLTB
Nominal size [mm]	130
Weight [kg]	0
Footnote mass m	Add mass for basis cylinder weight, figure per pair
Material of electromechanical cylinders	Female connector, cast bronze; Steel pillow block / cast iron

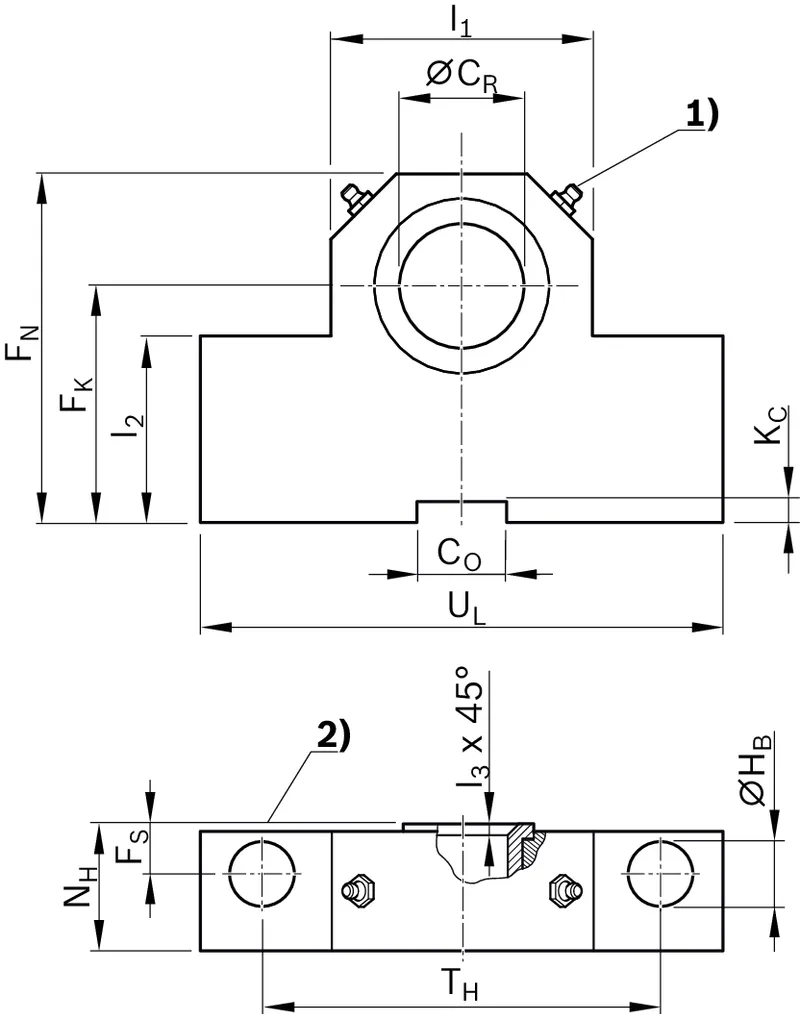

Dimension CO N9 [mm]	36
Dimension CR H7 [mm]	40
Dimension FK js12 [mm]	76
Dimension FN max. [mm]	120
Dimension FS js14 [mm]	16
Dimension HB H13 [mm]	22
Dimension I1 [mm]	88
Dimension I2 [mm]	60
Dimension I3 [mm]	2.5
Dimension KC [mm]	8.4
Dimension KC tolerance [mm]	+0.3
Dimension NH max. [mm]	41
Dimension TH js14 [mm]	125
Dimension UL max. [mm]	170
