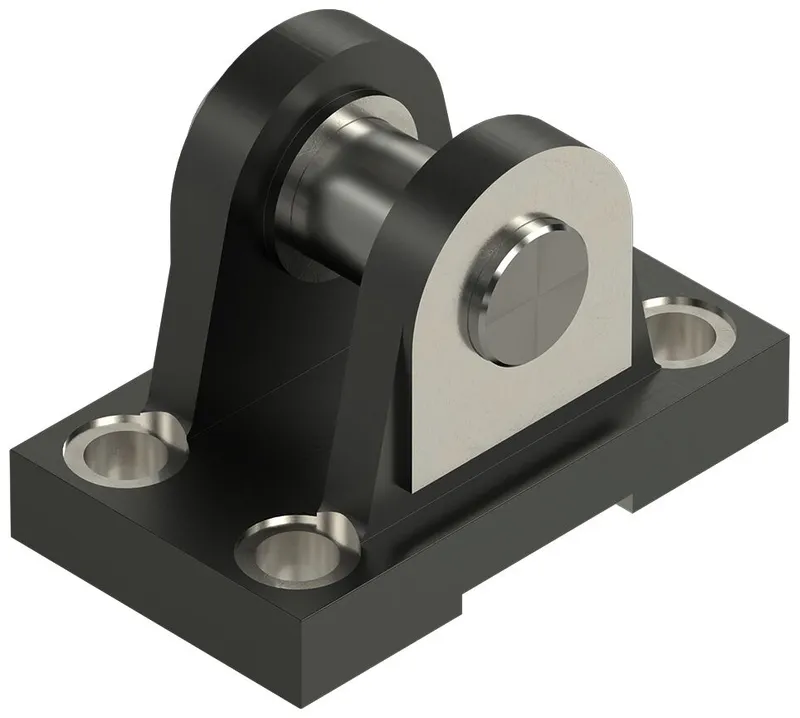

BEARING PEDESTAL EMC-105-HD PSBG

Name: BEARING PEDESTAL EMC-105-HD PSBG
Brand: Bosch Rexroth
SKU: R156340101

MPN: R156340101 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R156340101 be shipped?

R156340101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R156340101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R156340101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R156340101, subject to availability and destination.

Group 1/6, option 021 <b>Material</b>: Cast iron

Specifications

Fastening elements for electromechanical cylinders	Clevis bracket
Weight [kg]	5.68
Material of electromechanical cylinders	Bearing, bare cast iron; Bolts, steel

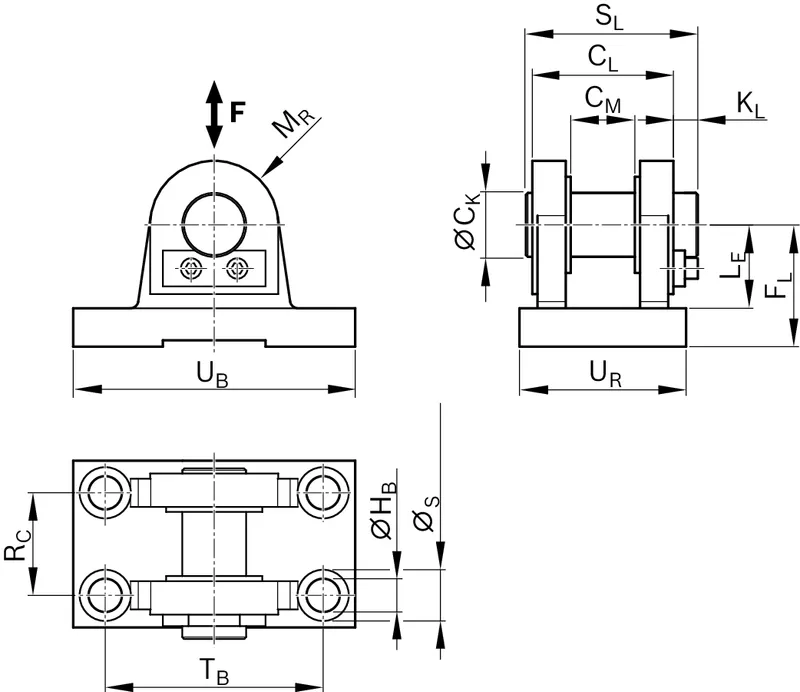

Dimension CK H9 [mm]	40
Dimension CL h16 [mm]	90
Dimension CM A12 [mm]	40
Dimension FL js12 [mm]	76
Dimension HB H13 [mm]	22
Dimension KL [mm]	16
Dimension LE min. [mm]	52
Dimension MR max. [mm]	40
Dimension RC js14 [mm]	65
Dimension S [mm]	33
Dimension S bore depth [mm]	1
Dimension S bore depth (text)	deep
Dimension S with thread depth	33 mm ‒ 1 mm deep
Dimension SL [mm]	110
Dimension TB js14 [mm]	130
Dimension UH max. [mm]	170
Dimension UR max. [mm]	108
Footnote Dimension CK H9	Matching bolt ⌀ m6 (bolt and bolt locking feature are included in the scope of supply and are not ready-mounted on delivery)
