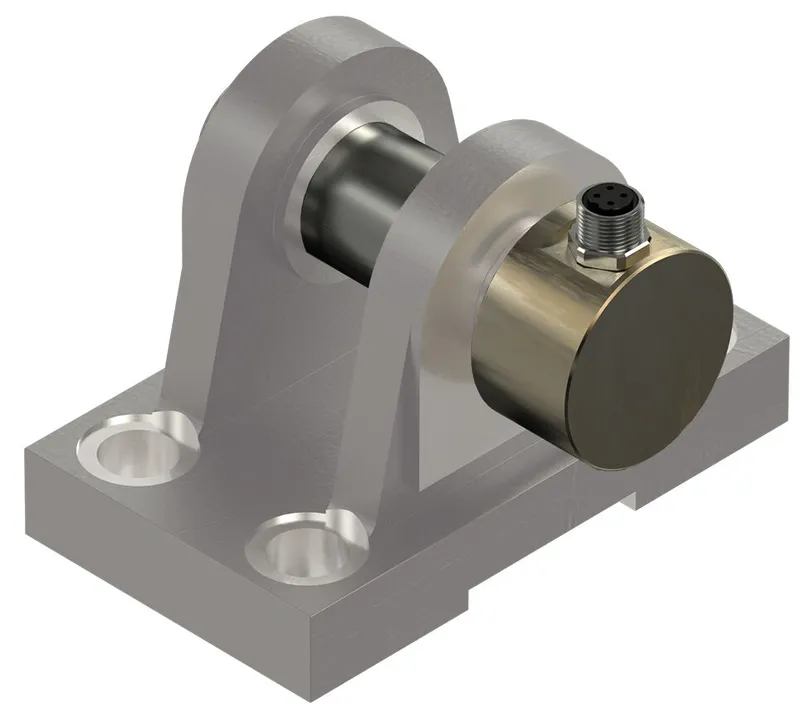

Bosch Rexroth R156337080
MEASURING ROD EMC-HD-85
- MPN
- R156337080
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R156337080?
For tensile and compressive forces
Corrosion-resistant stainless steel version
Integrated amplifier
Low temperature coefficient
High long term stability
High shock and vibration resistance
For dynamic or static measurements
Good reproducibility
Easy mounting
Specifications
Specifications
| Connection type 1 | Female connector, M12, 4-pin |
| Electrical accessories for electromechanical cylinders | Force sensors |
| Connection type 2 | Flying leads |
| Nominal size [mm] | 115 |
| Connection | Connector M12x1 |
| Power supply voltage [V DC] | 24 |
| Operating load (of the measuring range) [%] | 150 |
| Operating temperature (min. … max.) | -20 °C ... +60 °C |
| Output signal [V] | 0 |
| Output signal (measuring range) with tolerance | -10 ... +10 V ±0,2 |
| Output signal (measuring range) tolerance [V] | ±0.2 |
| Output signal with tolerance | 0 V ±0,03 |
| Output signal tolerance [V] | ±0.03 |
| Permissible ambient temperature (min. ... max.) | -25 °C ... +80 °C |
| Cable cross-section | 4 x 0.34 mm² |
| Bandwidth [kHz] | 2.5 |
| Bandwidth with tolerance | 2,5 kHz ±0,2 |
| Bandwidth tolerance [kHz] | ±0.2 |
| Rated voltage [V] | 250 |
| Rated current [A] | 4 |
| Shield | yes |
| Dynamic bending radius | > 5xD |
| Static bending radius | > 10xD |
| Bending cycles | > 2 million |
| Breaking load (of the measuring range) [%] | 300 |
| Weight [kg] | 0.85 |
| Hardness [HRC] | 38 HRC |
| Hysteresis (of the measuring range) [%] | ±0.2 |
| Cable diameter D [mm] | 5.9 |
| Cable diameter D tolerance [mm] | ±0.2 |
| Cable color | Black |
| Cable material | PUR |
| Compensated temperature | +10 °C ... +40 °C |
| Maximum operating temperature [°C] | +60 |
| Measurement range [kN] | 50 |
| Minimum operating temperature [°C] | -20 |
| Non-linearity (of the measuring range) [%] | ±0.5 |
| Zero setting function (tare) | 7.2 V ... 24 V |
| Suitable for drag chains | Yes |
| Protection class | IP65 |
| Connector outlet | angled |
| Current consumption [mA] | max.50 |
| Temperature drift zero point (of the measuring range per Kelvin) [%] | ±0.05 |
| Temperature drift above measuring range (of the measuring range per Kelvin) [%] | ±0.05 |
| Ambient temperature, in motion | -40 °C ... +80 °C |
| Material of electromechanical cylinders | stainless steel |
| Repeatability (of the measuring range) [%] | ±0.25 |

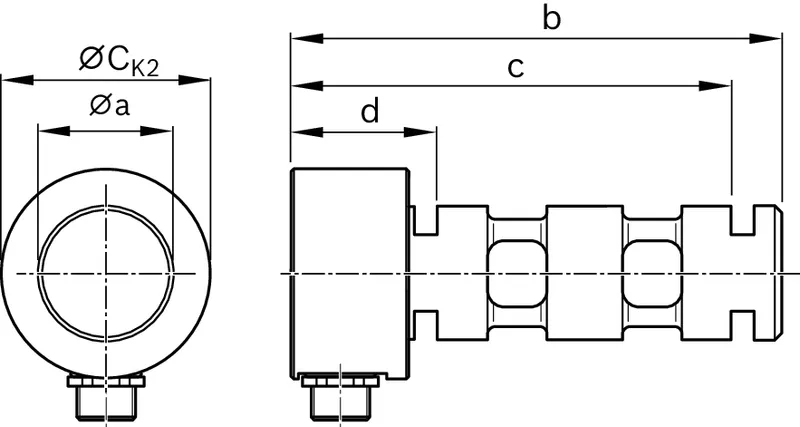

| Dimension a f8 [mm] | 32 |
| Dimension b [mm] | 131 |
| Dimension C [mm] | 119 |
| Dimension CK2 [mm] | 32 |
| Dimension d [mm] | 49 |
