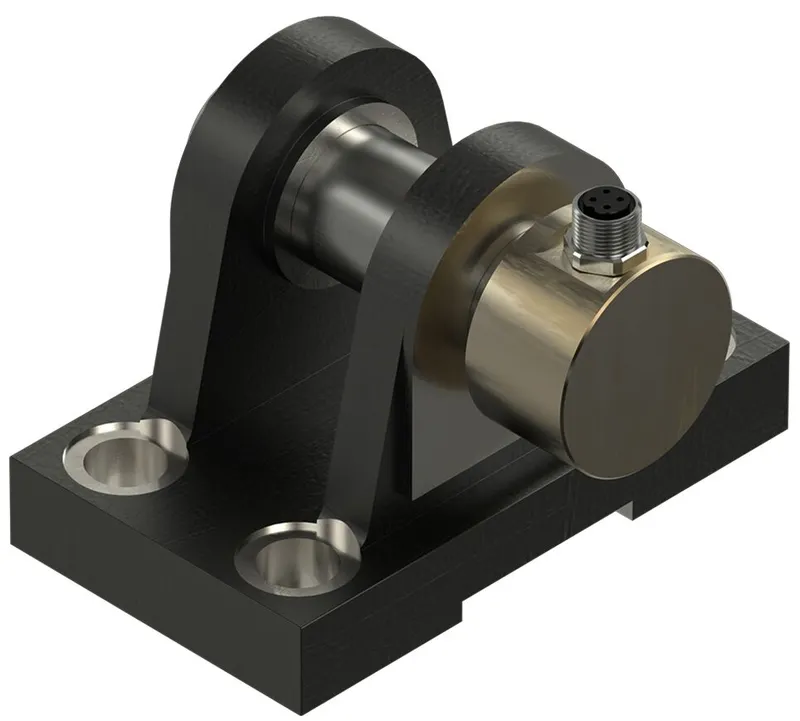

Bosch Rexroth R156350103

BEARING PEDESTAL EMC-HD 125 PSBG

MPN: R156350103
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156350103?

Group 1/6, option 031

Material : Cast iron

comparable to ISO 8132

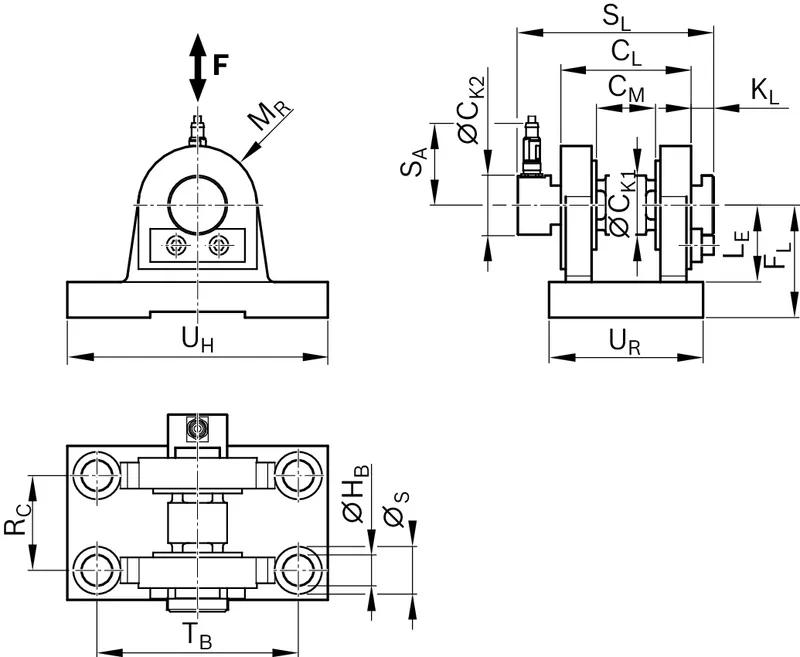

Specifications

Fastening elements for electromechanical cylinders	Clevis bracket
Weight [kg]	11.09
Material of electromechanical cylinders	Bearing, bare cast iron; Bolts, steel
Dimension CK1 H9 [mm]	50
Dimension CK2 [mm]	50
Dimension CL h16 [mm]	110
Dimension CM A12 [mm]	50
Dimension FL js12 [mm]	95
Dimension HB H13 [mm]	26
Dimension KL [mm]	20
Dimension LE min. [mm]	65
Dimension MR max. [mm]	50
Dimension RC js14 [mm]	80
Dimension S [mm]	40
Dimension S bore depth [mm]	1
Dimension S bore depth (text)	deep
Dimension S with thread depth	40 mm ‒ 1 mm deep
Dimension SA [mm]	69.5
Dimension SL [mm]	166.5
Dimension TB js14 [mm]	170
Dimension UH max. [mm]	220
Dimension UR max. [mm]	130
Footnote Dimension CK1 H9	Matching bolt ⌀ f8. For detailed information on the load measuring pin, see "Force sensor".
Footnote Dimension KL	Values deviate from ISO 8132 standard
Footnote Dimension SA	Values deviate from ISO 8132 standard
Footnote Dimension SL	Values deviate from ISO 8132 standard
